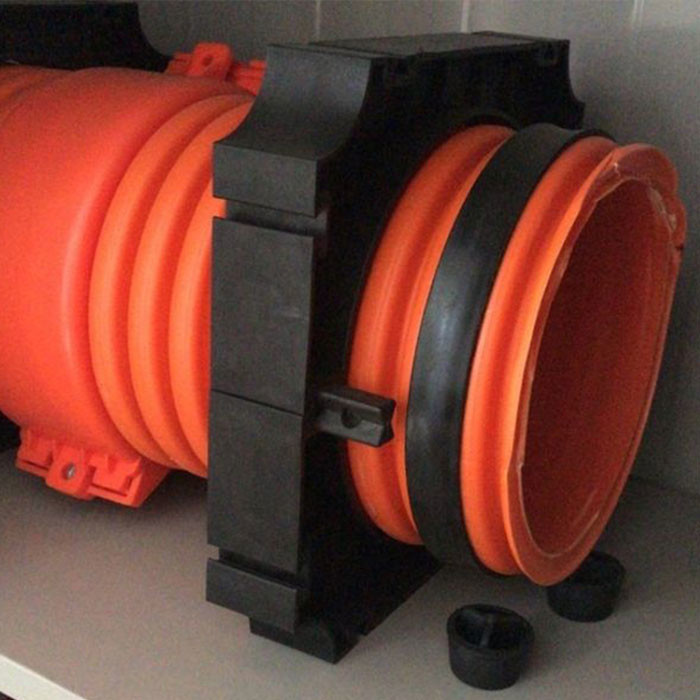

110 160 200mm Sheath PVC Pipe Fitting Bracket Connection

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
110 160 200mm Sheath PVC Pipe Fitting Bracket Connection
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM13010
Specification: DN75mm-220mm
Color: Black Or Customer Requesting
Usage: Cable Protection
Raw Material: CPVC MMP
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
High Light:

200mm PVC Pipe Fitting

,

Sheath PVC Pipe Fitting

Basic Infomation
Place of Origin: China
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

PVC-C Power Pipe Pillow 110 160 200 PVC Power Sheath Fittings Bracket Connection
----------------------------------------

Basic Info.



Tube pillow, a new type of tube pillow. Its single-piece tube pillow consists of tube pillow corners, tube pillow sides, tube pillow plates, tube pillow ribs, inner edges of single-piece tube pillows, pins, pin holes, and cable tubes. The edge of the hole and the cable tube hole are divided into upper closure and lower closure, and a pin is inserted into the pin hole to join together.



Model specification
8MM
10MM
12MM
14MM
16MM
18MM
20MM
22MM
25MM
28MM
30MM
32MM
35MM
38MM
40MM
42MM
45MM
50MM


 110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 0



Advantage



1. Reinforcement holes for inserting and/or penetrating steel bars are set on a selected part of the single-piece tube sleeper by the side of the reinforcement hole; two or more single-piece tube sleepers are arranged up and down and/or left and right , Insert the pin into the pin hole for splicing. This technical solution is simple and easy to implement, and has significant social and economic benefits. Not only can steel bars be inserted and/or penetrated, it can enhance the connectivity of the cable tube foundation encapsulation on both sides of the tube sleeper, and provide the quality of cables and cable tube buried projects. The guarantee provides convenience for the underground construction of cables and cable pipes, and standardizes pipe pillow products, improves the technology of cable and cable pipe buried engineering, and saves the materials for producing pipe pillow products and the labor of drilling steel holes on the pipe sleepers. .


Details



110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 1     110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 2



110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 3     110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 4


Application

It is suitable for telecommunications, power engineering, transportation, urban construction and other fields.

Certificate

110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 5
110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 6
110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 7
Company Profile

High Mountain Pipe is an enterprise specializing in R&D, production and sales of pipes and fittings.

Since its establishment, the company has been committed to providing leading technology and excellent quality HDPE MMP PVC pipe products and services for the global municipal engineering, civil aviation airports, urban power grids, port terminals, rail transit, new energy and other industries, and with excellent quality and With a good reputation, it has become a pipeline science and technology achievement promotion enterprise of the Ministry of Housing and Urban-Rural Development.


110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 8     110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 9

110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 10     110 160 200mm Sheath PVC Pipe Fitting Bracket Connection 11

FAQ


Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.



Q: What is the delivery time?
A: We always have common products in stock and can be shipped within 30 days.
Large orders require 15 days to complete production.



Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
