Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM01022
Specification: DN30mm-180mm
Color: Black Or Customer Request
Usage: Water Supply
Raw Material: PE100
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
High Light:

DN90 Steel Plastic Composite Pipe

,

Fused Steel Plastic Composite Pipe

,

Fused Polyethylene HDPE Pipe

Basic Infomation
Place of Origin: China
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

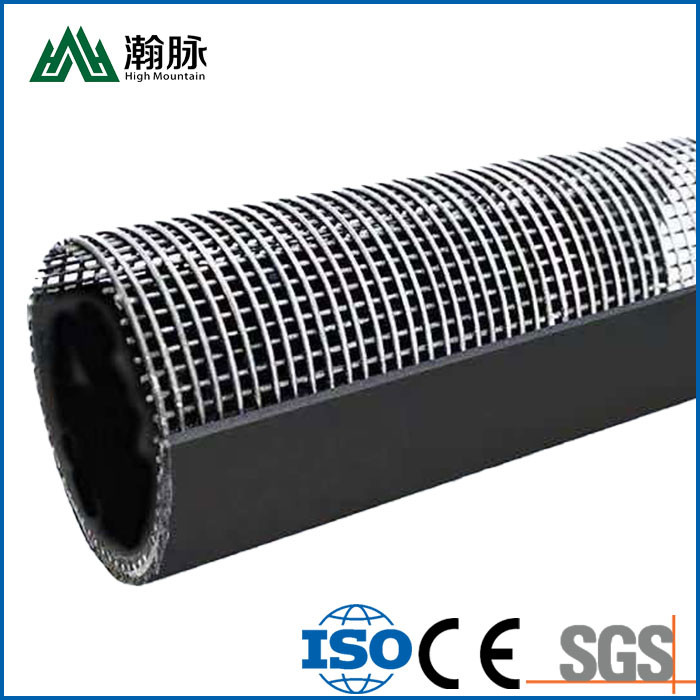

Steel Mesh Skeleton Pipe Polyethylene Plastic Composite Pipe HDPE Fire Water Supply Brand New Material Fused PE
----------------------------------------

Basic Info.


The steel frame plastic composite pipe is an improved new type of steel frame plastic composite pipe. This kind of pipe is also called srtp pipe. This new type of pipeline uses a high-strength over-plasticized steel wire mesh skeleton and thermoplastic polyethylene as raw materials. The steel wire wound mesh is used as the skeleton reinforcement of the polyethylene plastic pipe. The high-density polyethylene (HDPE) is used as the matrix and high-performance HDPE is used. The modified bonding resin tightly connects the steel wire skeleton with the inner and outer layers of high-density polyethylene, so that it has an excellent composite effect. Because the high-strength steel wire reinforcement is coated in the continuous thermoplastic, the composite pipe overcomes the respective shortcomings of steel pipes and plastic pipes, while maintaining the respective advantages of steel pipes and plastic pipes.



Product name HDPE water supply pipe/PE pipe/polyethylene pipe
Nominal pressure 0.6mpa-1.6mpa (SDR26-SDR11)
Product color Black with 4 eye-catching blue lines
Product wall Related to model and pressure
Product length 6-12 meters
Nominal outer diameter dn90-630mm


Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 0

Advantage

1. It overcomes the rapid stress cracking phenomenon of the plastic pipe. Because the structure of the two materials of steel and plastic is composited, the rapid stress that the plastic pipe is difficult to overcome will not occur.
2. It has the strength, rigidity, and impact resistance that exceed ordinary pure plastic pipes, and is similar to the low linear expansion coefficient and creep resistance of steel pipes;
3. Light weight, convenient installation, pipe connection adopts electric heat fusion joint, strong axial tensile ability, mature and reliable connection technology, pipe fittings variety and specifications
Completely developed, it can be connected with various other pipelines and valve equipment;
4. Double-sided anti-corrosion, with the same anti-corrosion performance as plastic pipes, high service temperature and corrosion resistance, and low thermal conductivity;
5. The structure is excellent, the reinforced frame of the pipe and the inner and outer plastics are mutually contained as a whole, and there is no worry about the peeling of the inner and outer plastics and the reinforcement;
6. The inner wall is smooth and does not scale, and the head loss of the pipe type is 30% lower than that of the steel pipe;
7. The whole pipe is designed according to the service life of 50 years;
8. Pipes with different pressure levels can be manufactured by adjusting the diameter of the steel wire, the thickness of the plastic layer, etc.;


Details

Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 1     Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 2



Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 3     Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 4

Application

The steel mesh skeleton plastic composite pipeline is a new type of pipeline with excellent performance, which is widely used in oil fields, power plants, chemical and petrochemical enterprises, water companies, municipal gas, seawater utilization pipelines and other fields.


Certificate

Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 5
Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 6
Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 7
Company Profile

High Mountain Pipe Management Industry is located in Jiangyin City, with convenient water and land transportation. It is a comprehensive company integrating R&D, design, application, production and sales. The company has equipment to produce large-diameter HDPE water supply pipe production line, prestressed corrugated pipe, corrugated pipe production line, and PVC pipe production line. We specialize in the production of PE water pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. These products are mainly used in municipal administration, roads, railways, water conservancy, electricity, environmental greening and infrastructure construction. , And used for municipalities and highways. Major projects in many countries, such as railways and railways, are highly praised by engineering professionals and users.

Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 8     Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 9

Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 10     Water Supply Steel Plastic Composite Pipe Fused Polyethylene HDPE DN90 - 630 11

FAQ



Q: Which payment method can your company use?
A: T/T, L/C or full trade insurance. You can choose the one that is convenient for you.



Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.



Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
