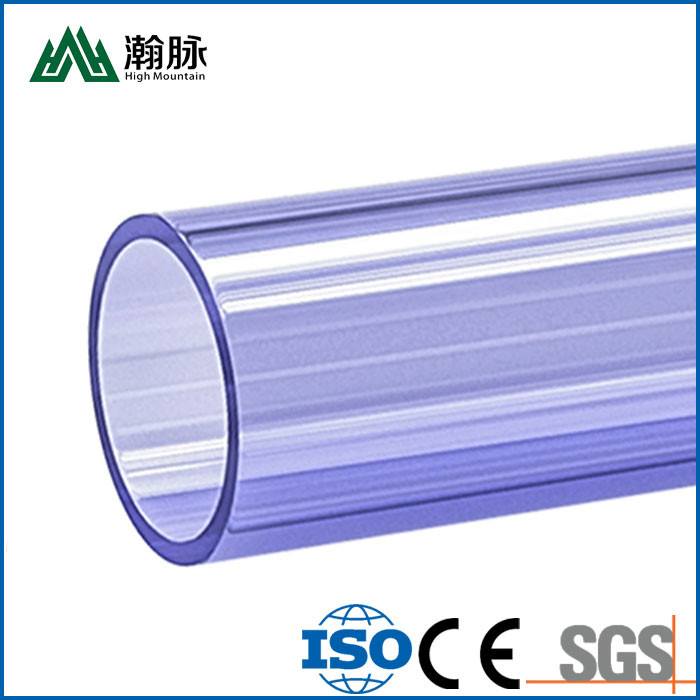

Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM05008
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

32mm PVC Drainage Pipes

,

Customized PVC Drainage Pipes

,

75mm Transparent Hard Pipe

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM05008
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

PVC Pipe Hard Pipe Water Supply Pipe Plastic Drainage Pipe Customized White Pipes 20 32 40 50 63 75 90

----------------------------------------



Basic Info.



Commonly used PVC pipe drainage pipe specifications are: the nominal outer diameters are: 32mm, 40mm, 50mm, 75mm, 90mm, 110mm, 125mm, 160mm, 200mm, 250mm, 315mm. The length of PVC-U pipe is generally 4m or 6m.



DN.mm Wall thickness(mm)
0.63 M pa 0.8Mpa 1.0Mpa 1.25Mpa 1.6Mpa 2.0Mpa
20 - - - - 2.0 2.0
25 - - - - 2.0 2.0
32 - - - - 2.0 2.0
40 - - - - 2.0 2.0
50 - - - - 2.0 2.4
50 - - - 2.0 2.4 3.0
63 - - 2.0 2.5 3.0 3.8
75 - 2.0 2.3 2.9 3.6 4.5
90 2.0 2.2 2.8 3.5 4.3 6.5
110 2.2 2.7 3.4 4.2 5.3 6.6
125 2.5 3.1 3.9 4.8 6.0 7.4
140 2.8 3.5 4.3 5.4 6.7 8.3
160 3.2 4.0 4.9 6.2 7.7 9.5
180 3.6 4.4 5.5 6.9 8.6 10.7
200 3.9 4.9 6.2 7.7 9.6 11.9
225 4.4 5.5 6.9 8.6 10.8 13.4
250 4.9 6.2 7.7 9.6 11.9 14.8
280 5.5 6.9 8.6 10.7 13.4 16.6
315 6.2 7.7 9.7 12.1 15.0 18.7
355 7.0 8.7 10.9 13.6 16.9 21.1
400 7.9 9.8 12.3 15.3 19.1 23.7
450 8.8 11.0 13.8 17.2 21.5 26.7
500 8.9 12.3 15.3 19.1 23.9 29.7
560 11.0 13.7 17.2 21.4 26.7 33.2
630 12.3 15.4 19.3 24.1 30.0 37.4



Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 0



Advantage



Tensile yield strength≥40MPa
Vicat softening temperature≥90℃
Flat test without cracks
Drop hammer impact test ≤10%
Appearance The inner and outer walls are smooth and flat, no bubbles, cracks, obvious marks, depressions, uneven color and discoloration lines are allowed
The wall thickness deviation of the same section is less than 14%
Longitudinal shrinkage rate ≤5%



Details



 Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 1    Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 2



Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 3     Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 4


Application



There are three main ways to connect PVC pipes: sealing rubber ring, bonding and flange connection. Pipes with a diameter greater than or equal to 100 mm generally use rubber ring joints; pipes with a diameter less than 100 mm generally use adhesive joints, and some use live joints. When the pipeline crosses the sewer or other pipelines, metal pipes are generally used. At this time, the plastic pipe and the metal pipe are connected by flanges. The connection between the front and back of the valve and the pipeline is also flanged.



Certificate



Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 5

Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 6

Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 7

Company Profile



High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.

The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.



Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 8     Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 9



Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 10       Customized PVC Drainage Pipes 32mm 40mm 50mm 75mm Transparent Hard Pipe 11





FAQ



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.



Q: What is the purpose of this pipeline?
A: It is mainly used to transport liquids, and is used on a large scale in urban water supply projects, farmland irrigation, etc.



Q: What certificates do you have for this product?
A: ISO, CE, SGS, etc.
