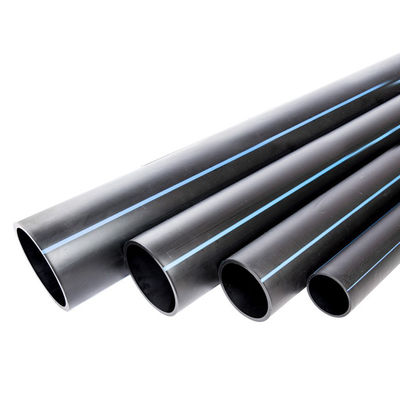

Black PE100 HDPE Water Pipe SN8 200mm 300mm 400mm For Drainage System
----------------------------------------
Basic Info.
HDPE resin is high-density polyethylene with excellent chemical stability, aging resistance and environmental stress cracking resistance. The applicable temperature range is -40°C—40°C, with strong pressure-bearing capacity and good comprehensive mechanical properties.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Good connection strength: Socket electric fusion or butt joint thermal fusion is adopted, with few joints and no leakage.
2. Low water flow resistance: The inner surface of HDPE pipe is smooth, with low friction coefficient and large flow.
3. Good abrasion resistance: The comparison test of the abrasion resistance of HDPE pipes and steel pipes shows that the abrasion resistance of HDPE pipes is 4 times that of steel pipes.
4. Strong pressure resistance: It has good impact resistance, even if there is a water hammer 2.5 times the nominal pressure, it will not cause any damage to the pipeline.
5. Anti-aging and long service life: HDPE pipes can be stored or used outdoors for 50 years without being damaged by ultraviolet radiation.
Details
Application
1. Agricultural garden land project: used for farmland, fruit and tea garden, and forest belt pipe laying.
2. Construction engineering: used as rainwater pipe, underground drainage pipe, sewage pipe and ventilation pipe of buildings.
3. Railway and highway communication equipment: used as the protective tube of communication cables and optical cables.
4. Industry: sewage pipes are widely used in chemical industry, hospitals, environmental protection and other industries.
Certificate
Company Profile
High Mountain Pipe is a company specializing in the production of hdpe double-wall corrugated pipes, plastic corrugated pipes, hdpe drainage pipes, HDPE-enhanced double-wall hollow winding pipes, HDPE-enhanced double-wall socket flared hollow winding pipes, HDPE double-wall corrugated pipes, hollow bi-well pipes, HDPE An enterprise that winds structure wall B type pipe (carat pipe), HDPE wind structure wall C type pipe (carat pipe), and inner rib reinforced polyethylene spiral corrugated pipe. The company has 61 fully automated production equipment (large-caliber production lines) of advanced technology in the industry, and two imported testing equipment laboratories. It implements a strict quality control system to ensure the quality of products from raw materials to finished products. The product has been tested by the National Chemical Building Materials Testing Center, and the performance indicators of B and C pipes are in compliance with the GB/T19472.2-2017 standard. It has passed the China Environmental Protection Mark certification and won the 1S09001-2015 quality system certification.
