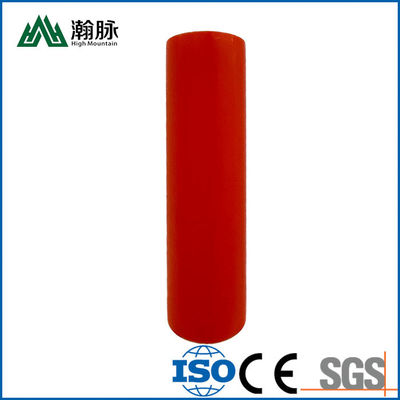

Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM13001
High Light:

CPVC Fiber Cable Protection Tubes

,

MMP Electric Cable Protection Tubes

,

75mm Electric Wire Protection Tube

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM13001
Specification: DN75mm-220mm
Color: Orange Or Customer Requesting
Usage: Cable Protection
Raw Material: CPVC MMP
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
Product Description



Cable Protection Tube Csyb 25mm 10kv Fiber Electric Cable Protection Tube Raychem Power Cable Termination
----------------------------------------


Basic Info.

Cable protection tube refers to a metal protection tube that is laid on the outer layer of the cable and has a certain mechanical strength in order to prevent the cable from being damaged.


Normal type Enhanced type
Outer diameter Thickness Material Outer diameter Thickness Material
75 5-10mm PVC resin 75 8-15mm PVC resin
90 5-10mm PVC resin 90 5-15mm PVC resin
100 5-10mm PVC resin 100 11-15mm PVC resin
110 5-10mm PVC resin 110 11-15mm PVC resin
125 5-10mm PVC resin 125 11-15mm PVC resin
175 5-13mm PVC resin 175 14-30mm PVC resin
180 5-13mm PVC resin 180 14-30mm PVC resin
192 5-15mm PVC resin 192 16-30mm PVC resin
200 5-15mm PVC resin 200 16-30mm PVC resin
219 5-15mm PVC resin 219 16-30mm PVC resin


 Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 0
Advantage

1) The cable protection tube has high current carrying capacity and low thermal resistance coefficient.
2) When the cable protection tube is used, the friction coefficient between the cable and the cable is low, and the cable is more convenient to pass through.
3) The cable protection tube lengthens the well spacing, reduces the number of working wells, and reduces engineering costs.


Details



Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 1     Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 2



Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 3     Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 4


Application

In building electrical engineering, the scope of use of cable protection pipes is as follows:
(1) When the cable passes through the floor or wall of a building, tunnel, or when the cable is buried indoors, a protective tube is required.
(2) The cable is led from the channel to the pole and equipment, and a protective tube should be installed at a section of the cable below the height of 2m from the ground in a place that is easily accessible to pedestrians indoors.
(3) When the cable is laid under the road or when crossing the road, a protective tube is required:
(4) For the cables drawn from the bridge, or where it is difficult to install the bridge and the cables are relatively scattered, a protective tube shall be set on the laid cable.


Certificate

Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 5
Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 6
Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 7
Company Profile

High Mountain Pipe is an enterprise specializing in R&D, production and sales of pipes and fittings.

Since its establishment, the company has been committed to providing leading technology and excellent quality HDPE MMP PVC pipe products and services for the global municipal engineering, civil aviation airports, urban power grids, port terminals, rail transit, new energy and other industries, and with excellent quality and With a good reputation, it has become a pipeline science and technology achievement promotion enterprise of the Ministry of Housing and Urban-Rural Development.


Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 8     Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 9

Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 10     Fiber Cable Protection Tubes Csyb Raychem CPVC MMP DN 75mm - 220mm 11

FAQ


Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.


Q: What certificates do you have for this product?
A: ISO, CE, SGS, etc.


Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
