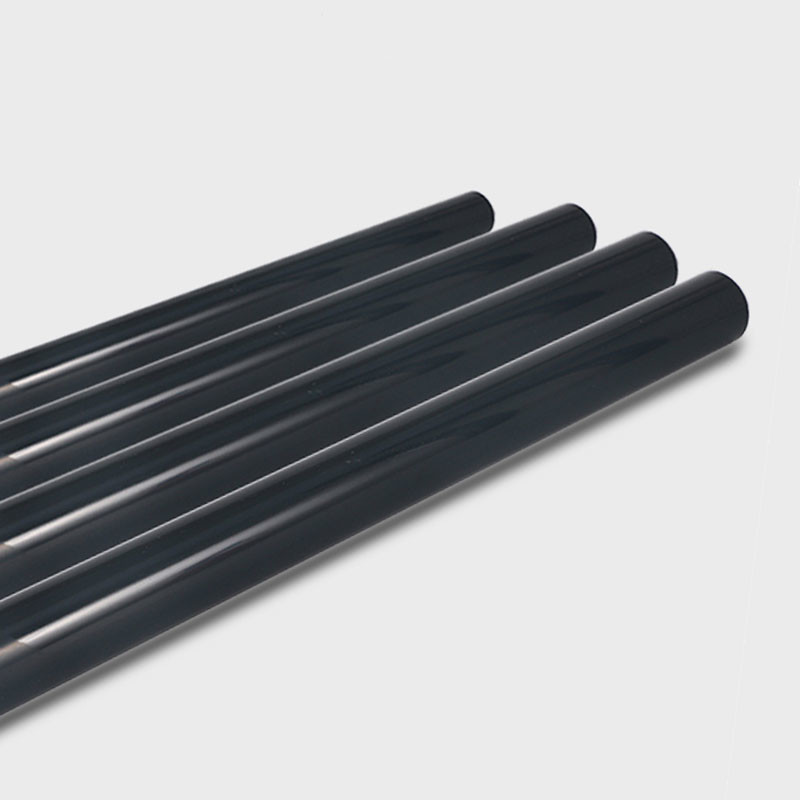

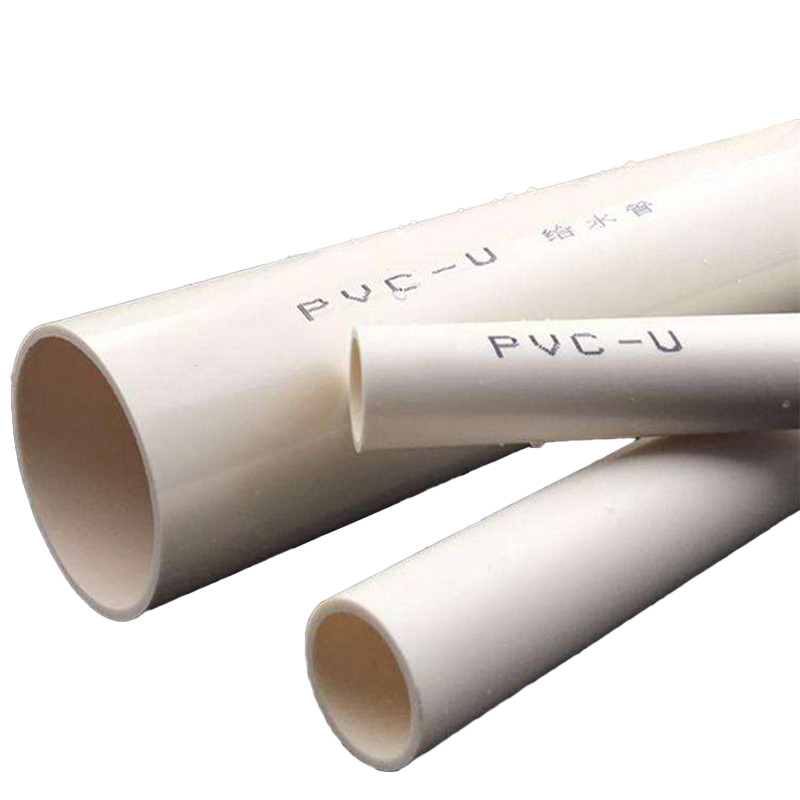

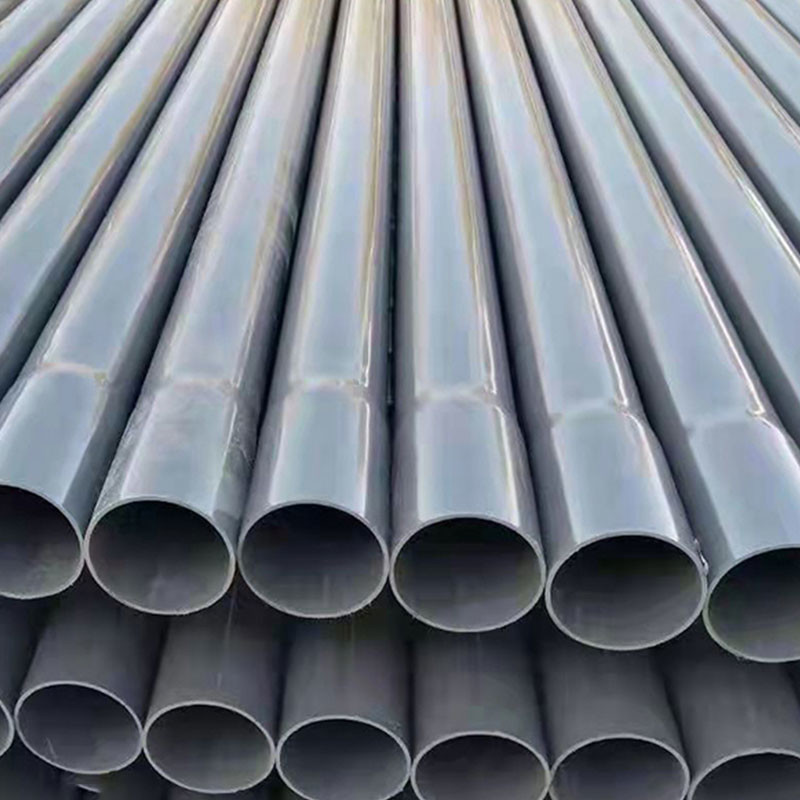

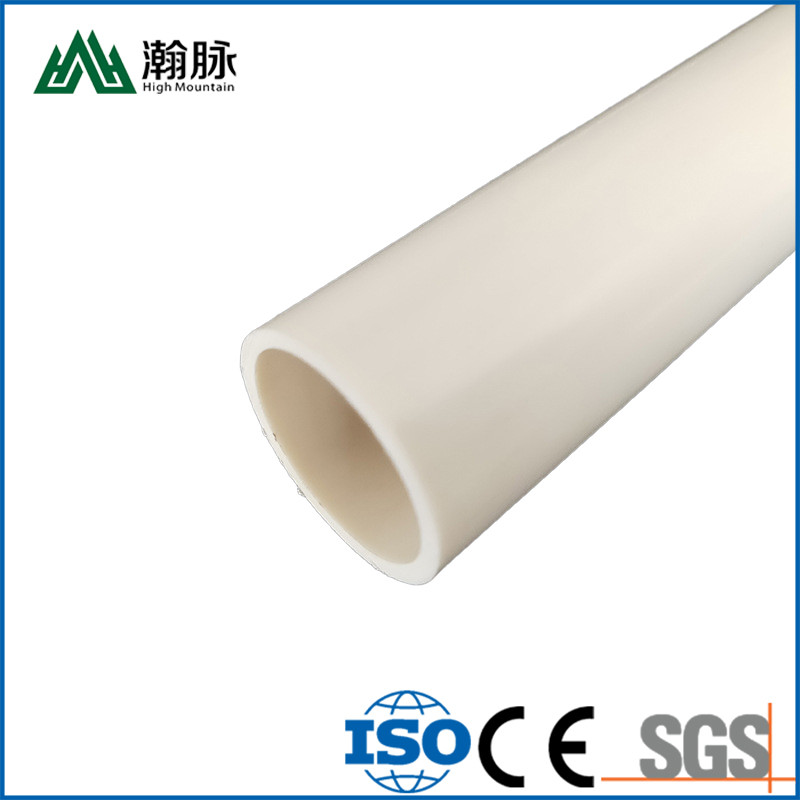

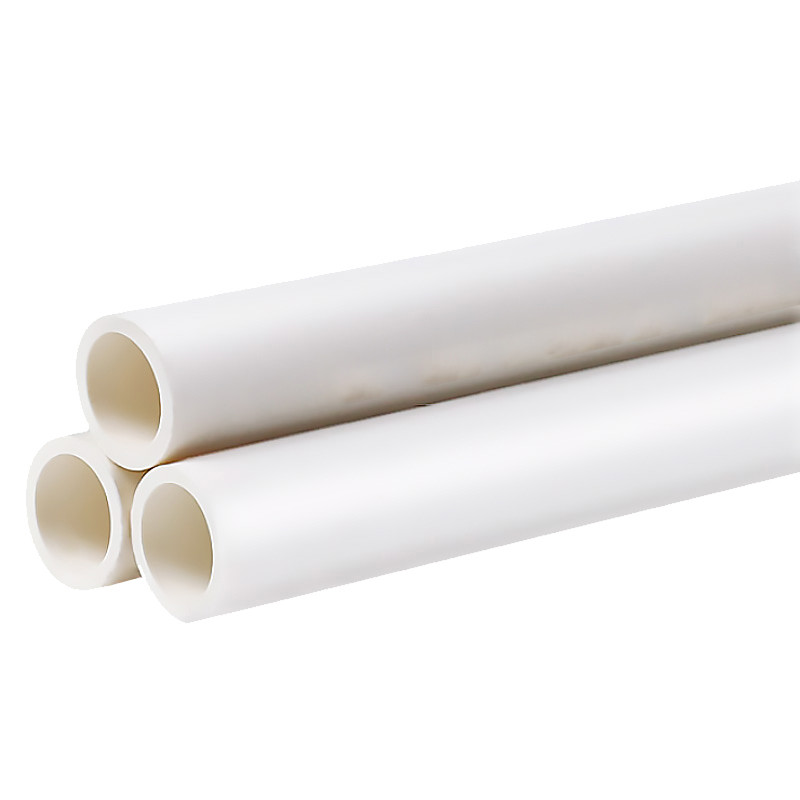

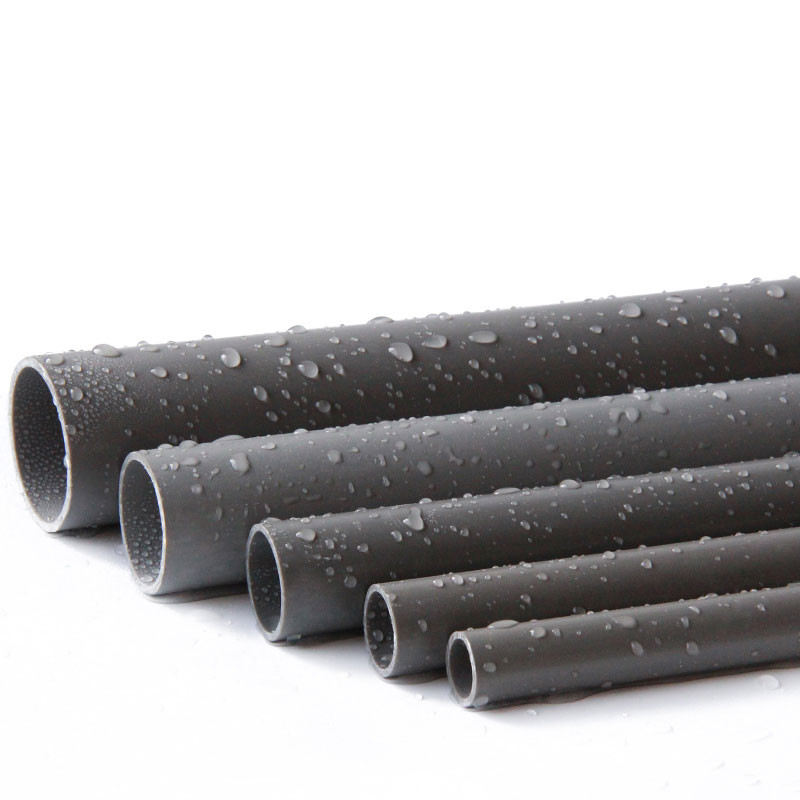

High Quality PVC M Pipe PVC Pipe For Water Or Drainage Pressure Pipes
----------------------------------------
Basic Info.
PVC-U pipe is made of sanitary polyvinyl chloride (PVC) resin as the main raw material, adding appropriate amount of stabilizer, lubricant, filler, color enhancer, etc. by plastic extruder extrusion molding and injection molding machine injection molding, through cooling, curing, shaping, inspection, packaging and other processes to complete the production of pipes and fittings. Excellent physical and chemical properties, chemical corrosion resistance, high impact strength, low fluid resistance, 30% higher than the same diameter cast iron pipe flow, aging resistance, long service life, service life of not less than 50 years, is the ideal material for building water supply and drainage.
| Outer Diameter DN (mm) |
PN25 | PN20 | PN16 | PN12.5 | PN10 | PN8 | PN6.3 |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | |
| 20 | 2.3 | 2.0 | |||||
| 25 | 2.8 | 2.3 | 2.0 | ||||
| 32 | 3.6 | 2.9 | 2.4 | 2.0 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | 2.0 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | 2.4 | 2.0 | |
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | 3.0 | 2.5 | 2.0 |
| 75 | 8.4 | 6.9 | 5.6 | 4.5 | 3.6 | 2.9 | 2.3 |
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | 2.8 |
| 110 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | 3.4 | 2.7 |
| 125 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | 3.9 | 3.1 |
| 140 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 4.3 | 3.5 |
| 160 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 4.9 | 4.0 |
| 180 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 5.5 | 4.4 |
| 200 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 6.2 | 4.9 |
| 225 | 16.6 | 13.4 | 10.8 | 8.6 | 6.9 | 5.5 | |
| 250 | 18.4 | 14.8 | 11.9 | 9.6 | 7.7 | 6.2 | |
| 280 | 20.6 | 16.6 | 13.4 | 10.7 | 8.6 | 6.9 | |
| 315 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 | 7.7 | |
| 355 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 | 8.7 | |
| 400 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 | 9.8 | |
| 450 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 | 11.0 | |
| 500 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 | 12.3 | |
| 560 | 26.7 | 21.4 | 17.2 | 13.7 | |||
| 630 | 30.0 | 24.1 | 19.3 |
15.4 |
Advantage
1. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance and corrosion resistance, and are not affected by moisture and soil pH, and do not need any anti-corrosion treatment when laying pipes.
2. Good water tightness: The installation of PVC-U pipes has good water tightness whether it is connected by bonding or rubber ring.
3. Anti-bite and rodent: PVC-U pipe is not a source of nutrition, so it will not be eroded by rodents. According to the test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.
Details
Application
1. Indoor water supply and reclaimed water systems for civil and industrial buildings;
2. Buried water supply system in residential quarters and factories;
3. Urban water supply pipeline system;
4. Water treatment pipeline system of water treatment plant;
5. Garden irrigation, well sinking and other projects and other industrial pipes.
