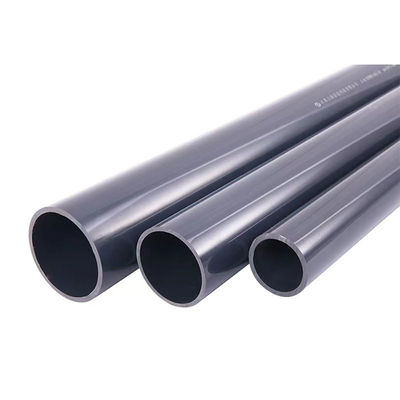

Customizable Plastic PVC U Drainage Pipe For Sewage And Water System
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Customizable Plastic PVC U Drainage Pipe For Sewage And Water System
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM05023
High Light:

aging resistance PVC U Pipes

,

Customizable Plastic PVC U Drainage Pipe

,

Water System Drainage PVC U Pipes

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM05023
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

Customizable Plastic PVC U Drainage Pipe For Sewage And Water System Drainage

----------------------------------------



Basic Info.



PVC-U pipe is made of sanitary polyvinyl chloride (PVC) resin as the main raw material, adding appropriate amount of stabilizer, lubricant, filler, color enhancer, etc. by plastic extruder extrusion molding and injection molding machine injection molding, through cooling, curing, shaping, inspection, packaging and other processes to complete the production of pipes and fittings. Excellent physical and chemical properties, chemical corrosion resistance, high impact strength, low fluid resistance, 30% higher than the same diameter cast iron pipe flow, aging resistance, long service life, service life of not less than 50 years, is the ideal material for building water supply and drainage.



Outer diameter (mm) Inner diameter (mm) Wall thickness (mm) Pressure
20 16 2 1.0Mpa
25 21 2 1.0Mpa
32 27.2 2.4 1.0Mpa
40 36 2 1.0Mpa
50 45.2 2.4 1.0Mpa
63 57 3 1.0Mpa
75 67.8 3.6 1.0Mpa
90 81.4 4.3 1.0Mpa
110 99.4 5.3 1.0Mpa
140 126.6 6.7 1.0Mpa
160 144.6 7.7 1.0Mpa
225 203.4 10.8 1.0Mpa
280 253.2 13.4 1.0Mpa
315 285 15 1.0Mpa
20 15.4 2.3 1.6Mpa
25 19.4 2.8 1.6Mpa
32 24.8 3.6 1.6Mpa
40 34 3 1.6Mpa
50 42.6 3.7 1.6Mpa
63 53.6 4.7 1.6Mpa
75 63.8 5.6 1.6Mpa
90 76.6 6.7 1.6Mpa
110 93.8 8.1 1.6Mpa
140 119.4 10.3 1.6Mpa
160 136.4 11.8 1.6Mpa
225 191.8 16.6 1.6Mpa
280 238.8 20.6 1.6Mpa
315 268.6 23.2 1.6Mpa


Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 0



Advantage



1,Strong corrosion resistance, not affected by corrosive soil and various kinds of drinking water.
2,Smooth inner wall, less frictional resistance than conventional materials.
3,Pipes and fittings will never rust, thus no change of erosion and shrinkage will occur inside them.
4,The exterior walls of buildings will never be polluted by rusting pipes, ensuring that the value of buildings will not be damaged.
5,Pipe fittings are available in a wide range of styles and can be suitable for various design and installation requirements.
6,Easy to install, no need for regular maintenance and repair.
7,Weight is one-fifth of cast iron pipe, easy to transport and operate.



Details

Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 1Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 2Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 3Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 4




Application



Widely used in: urban water supply project, inside and outside the building water supply project, industrial and mining enterprises water supply project, buried firefighting water supply project, agricultural irrigation project, gardening and greening water supply project, aquaculture industry water supply and drainage project, etc.





Certificate



Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 5

Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 6

Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 7

Company Profile



High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.

The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.

The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.



Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 8     Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 9



Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 10       Customizable Plastic PVC U Drainage Pipe For Sewage And Water System 11





FAQ



Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.



Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.



Q: What is the delivery time?
A: We always have common products in stock and can be shipped within 30 days.
Large orders require 15 days to complete production.
