Send Message

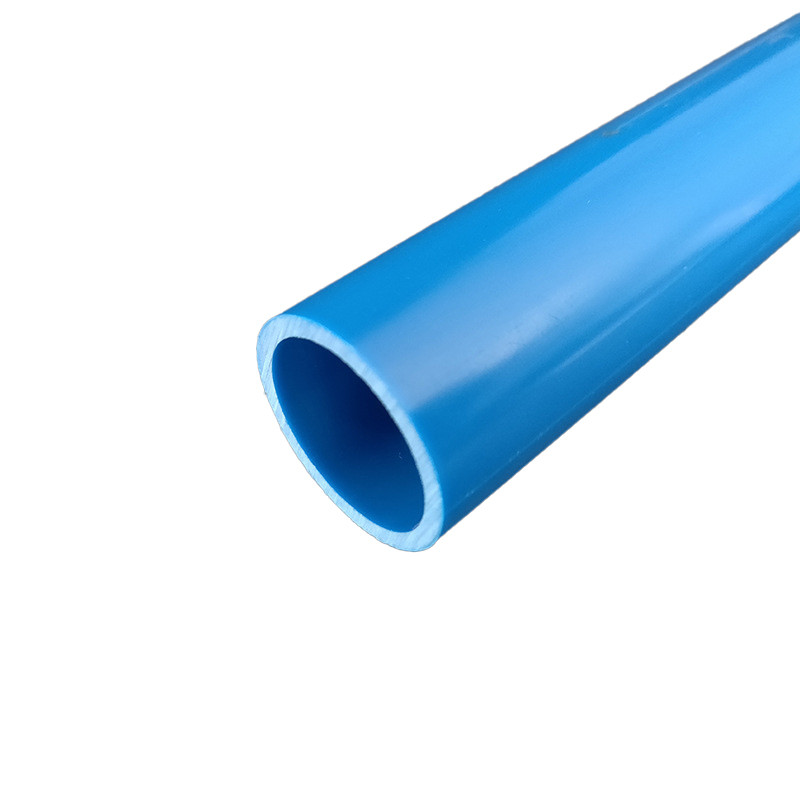

8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: BAITONG
Model Number: HM05034
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

8Inch PVC U Pipes

,

Irrigation Drainage Blue PVC U Pipes

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM05034
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

Hot Sale 8 Inch Diameter PVC M Type Water Supply And Irrigation Drainage Pipe Blue

----------------------------------------



Basic Info.



PVC-U pipe is made of sanitary polyvinyl chloride (PVC) resin as the main raw material, adding appropriate amount of stabilizer, lubricant, filler, color enhancer, etc. by plastic extruder extrusion molding and injection molding machine injection molding, through cooling, curing, shaping, inspection, packaging and other processes to complete the production of pipes and fittings. Excellent physical and chemical properties, chemical corrosion resistance, high impact strength, low fluid resistance, 30% higher than the same diameter cast iron pipe flow, aging resistance, long service life, service life of not less than 50 years, is the ideal material for building water supply and drainage.



Outer Diameter
DN (mm)
PN25 PN20 PN16 PN12.5 PN10 PN8 PN6.3
Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
20 2.3 2.0
25 2.8 2.3 2.0
32 3.6 2.9 2.4 2.0
40 4.5 3.7 3.0 2.4 2.0
50 5.6 4.6 3.7 3.0 2.4 2.0
63 7.1 5.8 4.7 3.8 3.0 2.5 2.0
75 8.4 6.9 5.6 4.5 3.6 2.9 2.3
90 10.1 8.2 6.7 5.4 4.3 3.5 2.8
110 10.0 8.1 6.6 5.3 4.2 3.4 2.7
125 11.4 9.2 7.4 6.0 4.8 3.9 3.1
140 12.7 10.3 8.3 6.7 5.4 4.3 3.5
160 14.6 11.8 9.5 7.7 6.2 4.9 4.0
180 16.4 13.3 10.7 8.6 6.9 5.5 4.4
200 18.2 14.7 11.9 9.6 7.7 6.2 4.9
225   16.6 13.4 10.8 8.6 6.9 5.5
250   18.4 14.8 11.9 9.6 7.7 6.2
280   20.6 16.6 13.4 10.7 8.6 6.9
315   23.2 18.7 15.0 12.1 9.7 7.7
355   26.1 21.1 16.9 13.6 10.9 8.7
400   29.4 23.7 19.1 15.3 12.3 9.8
450   33.1 26.7 21.5 17.2 13.8 11.0
500   36.8 29.7 23.9 19.1 15.3 12.3
560       26.7 21.4 17.2 13.7
630       30.0 24.1 19.3

15.4



8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 0



Advantage



1. Has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Small fluid resistance: The wall of PVC-U pipe is very smooth and the resistance to fluid is very small, its roughness coefficient is only 0.009, its water transmission capacity is 20% higher than cast iron pipe of the same diameter and 40% higher than concrete pipe.
3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance and corrosion resistance, and are not affected by moisture and soil pH, and do not need any anti-corrosion treatment when laying pipes.
4. Good water tightness: The installation of PVC-U pipes has good water tightness whether it is connected by bonding or rubber ring.
5. Anti-bite and rodent: PVC-U pipe is not a source of nutrition, so it will not be eroded by rodents. According to the test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.



Details

8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 18 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 28 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 38 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 4




Application



Widely used in: urban water supply project, inside and outside the building water supply project, industrial and mining enterprises water supply project, buried firefighting water supply project, agricultural irrigation project, gardening and greening water supply project, aquaculture industry water supply and drainage project, etc.



Certificate



8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 5

8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 6

8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 7

Company Profile



High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.

The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.

The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.



8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 8     8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 9



8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 10     8 Inch Diameter PVC M Pipes Water Supply And Irrigation Drainage Blue 11





FAQ



Q: Which payment is available for your company?
A: T/T, L/C or Ali trade insurance. You can choose the one which is convenient for you.



Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.



Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.
