600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM1-56
Specification: DN20mm-630mm
Color: Black Or Customer Request
Usage: Water Supply
Raw Material: PE100
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
High Light:

Water Supply HDPE Sewage Drainage Pipe

,

750mm HDPE Sewage Drainage Pipe

,

600mm HDPE Water PE Sewage Pipe

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001,14001,45001
Model Number: HM1-56
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

600mm 750mm Large Diameter HDPE Water Supply And Drainage Pipe PE Sewage Pipe

----------------------------------------

Basic Info.



PE pipes for water supply are the replacement products of traditional steel pipes and PVC drinking water pipes.
The water supply pipe must bear a certain pressure, usually a PE resin with a large molecular weight and good mechanical properties, such as HDPE resin, should be used. LDPE resin has low tensile strength, differential pressure resistance, poor rigidity, poor dimensional stability during molding and difficult connection, and is not suitable as a material for water supply pressure pipes. However, due to its high hygienic index, LDPE, especially LLDPE resin, has become a common material for the production of drinking water pipes. LDPE and LLDPE resins have low melt viscosity, good fluidity, and easy processing, so their melt index can be selected in a wide range, usually MI is between 0.3-3g/10min.





Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
Packing
Loaded into 40GP/Piece
6m or 12m per Piece
  Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5     1085
90 10.1 8.2 6.7 5.4 4.3   754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710   64.5 52.2 42.1 33.9 27.2 9
800   72.7 58.8 47.4 38.1 30.6 6
900   81.8 66.2 53.3 42.9 34.4 6
1000   90.2 72.5 59.3 47.7 38.2 4
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2





PE water supply pipes can be used as tap water supply pipes. However, when using PE water supply pipes as tap water supply pipes, the following aspects need to be paid attention to:
1. Select the appropriate pipe diameter and thickness. Select the appropriate pipe diameter and thickness according to actual needs to ensure the pressure resistance and durability of the pipe.
2. Ensure the quality of materials. The production and use of PE water supply pipes should comply with national standards to ensure the quality and safety of pipe materials.
3. Precautions for installation. When installing PE water supply pipes, it is necessary to pay attention to the support, fixing and sealing of the pipes to ensure the stability and sealing of the pipes.
4. Prevent breakage and damage. PE water supply pipes need to avoid damage and breakage during use to avoid sewage leakage and water pollution.
5. Regular maintenance. PE water supply pipes require regular inspection and maintenance during use to ensure the safety and durability of the pipes.
6. Ensure the quality of drinking water. When using PE water supply pipes as tap water supply pipes, it is necessary to ensure that the quality of drinking water meets relevant standards. Therefore, when installing PE water supply pipes, suitable connectors should be used, and maintenance work such as cleaning and disinfection of the pipes should be carried out regularly to ensure the safety of the water quality inside the pipes.
7. Avoid exposure to sunlight. PE pipes will cause aging and deformation when exposed to sunlight for a long time, which will affect their service life and safety. Therefore, when using PE water supply pipes, it is necessary to avoid direct exposure of the pipes to sunlight.


Details

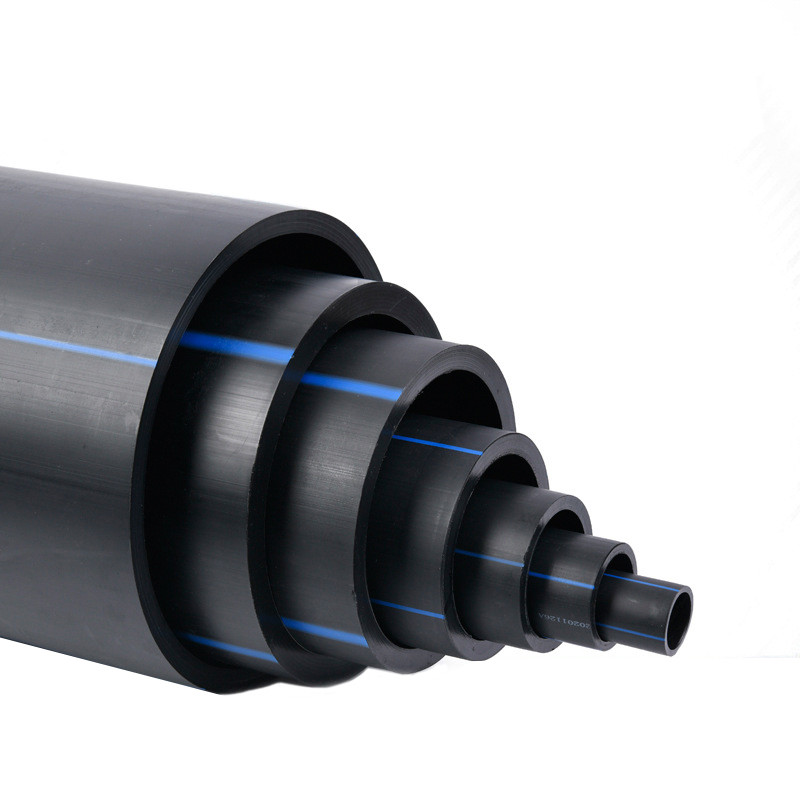

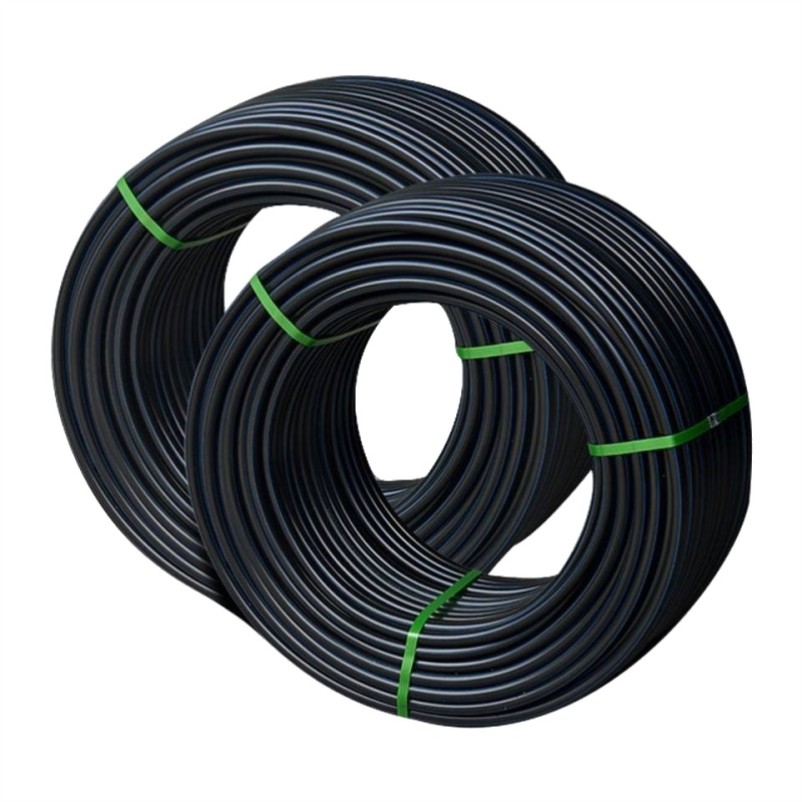

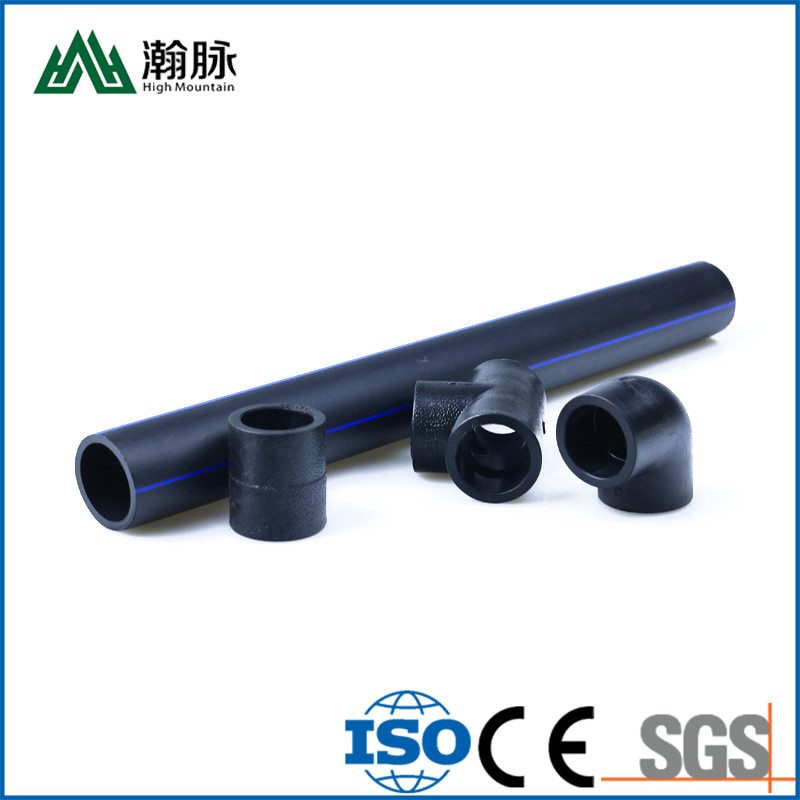

600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 0     600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 1

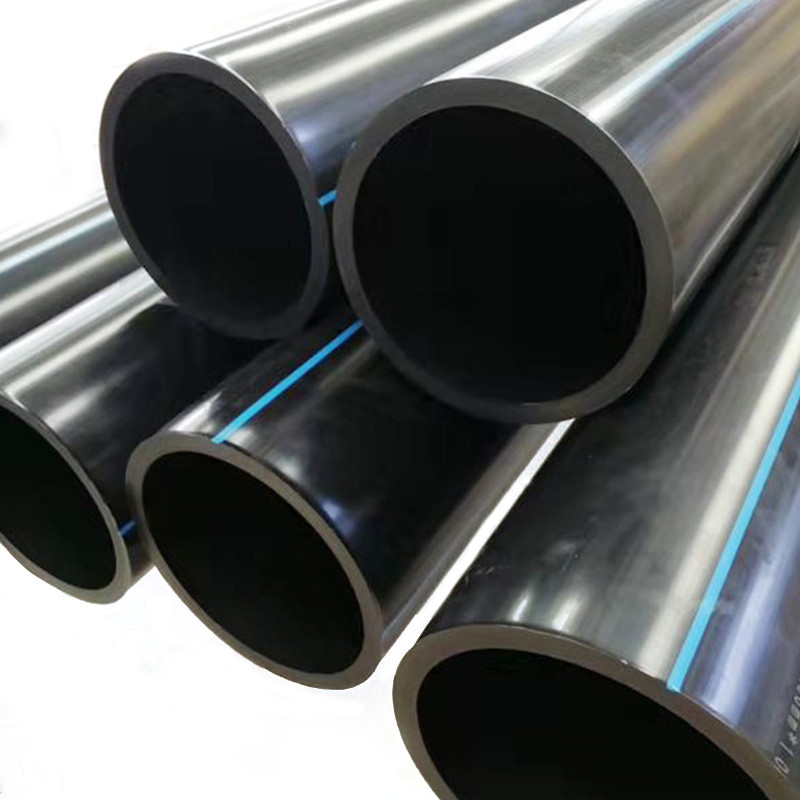

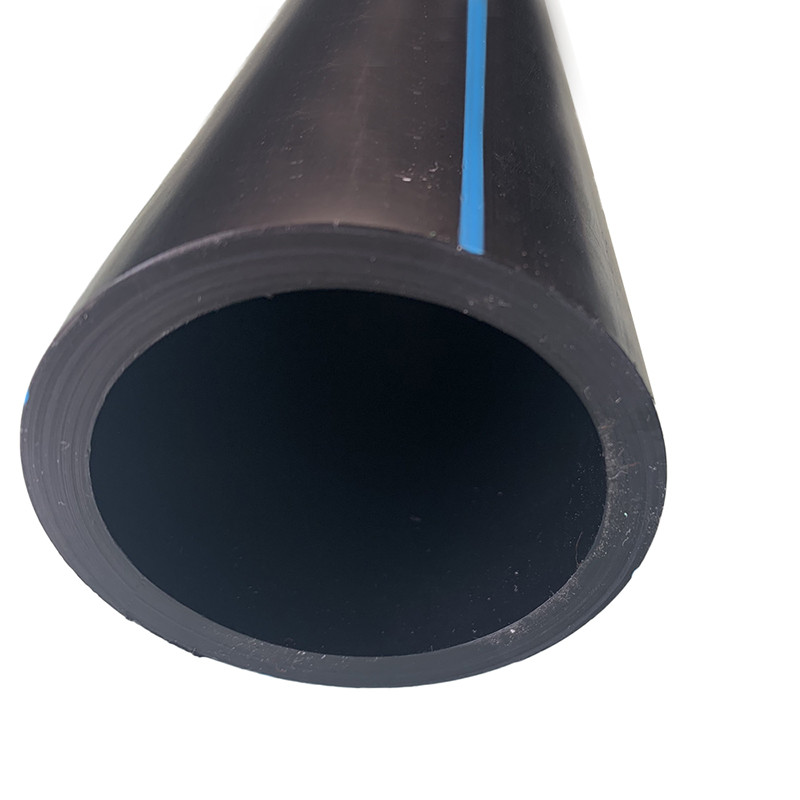

600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 2      600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 3





Application

1. Landscaping pipe network: Landscaping requires a large number of water pipes. PE water supply pipes are flexible and low-cost, which is the best choice;
2. Sewage discharge pipe: PE water supply pipe has unique corrosion resistance and is suitable for the discharge of industrial wastewater and sewage. It not only has a long life, but also has low cost and maintenance costs;
3. Mine mortar transportation: PE water supply pipes have high-strength compression resistance, wear resistance and corrosion resistance, and can be used for ore transportation and mud transportation for river dredging.


Certificate

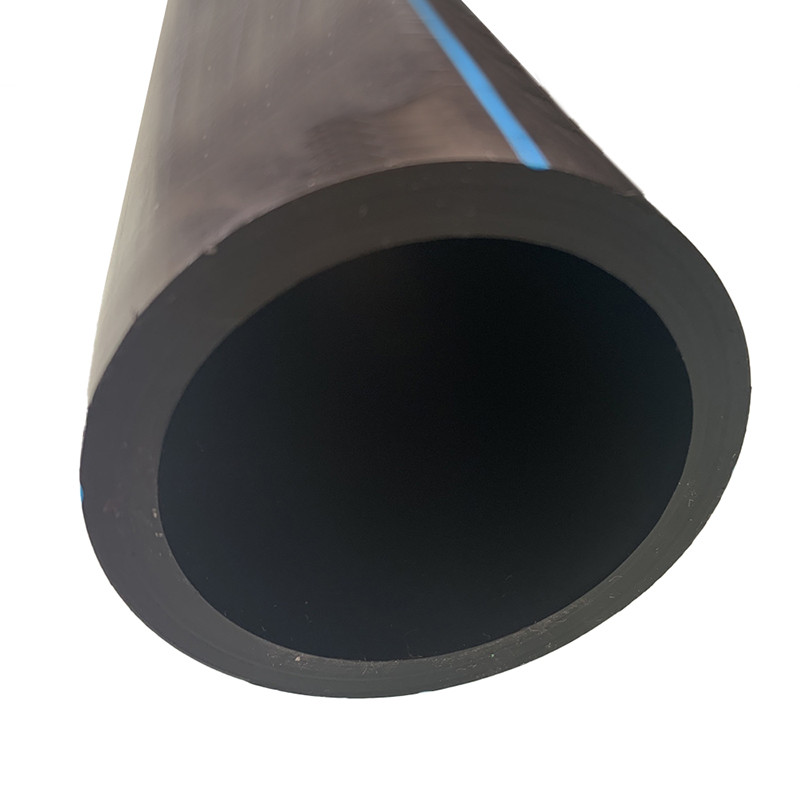

600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 4
600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 5
600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 6
Company Profile

High Mountain Pipe Management Industry With 19 years of experience in R&D, production and sales of plastic pipe fittings, HDPE pipes are of good quality. In order to meet the actual needs of modern high-quality buildings and the design concept of environmental protection and silence, the company has introduced advanced production equipment and manufacturing technology, and has successively developed grooved ( HDPE) HDPE mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and HDPE siphon drainage system series products. HDPE is a highly crystalline, non-polar thermoplastic resin. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE has excellent resistance to most household and industrial chemicals. hdpe pipe factory adheres to the factory policy of "credibility, quality and management as the fundamental goal", with moderate price, dedicated service, and customer satisfaction as the purpose, abiding by contracts and keeping promises and famous all over the country.

600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 7     600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 8

600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 9     600mm 750mm HDPE Water Supply And Drainage Pipe Large Diameter PE Sewage 10

FAQ



Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.



Q: How to buy products?
A: Send an email to us and we will get back to you within one day.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
