21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM09001
High Light:

21crmo10 Gray Cast Iron Pipe

,

A536 Gray Cast Iron Pipe

,

Customized Coated Cast Iron Pipe

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM09001
Specification: DN80-2600mm
Color: Black,grey,or At Request
Usage: Water Supply
Raw Material: Carbon, Silicon, Manganese, Sulfur, Phosphorus, Magnesium,
Size: Customized Size
Standard: GB/T13295-2013 ISO2531/2003
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

Factory Hot Sale Cast 21crmo10 Mould Ductile Iron Pipe With Lowest Price Nodular Cast Iron Pipe

----------------------------------------







Basic Info.

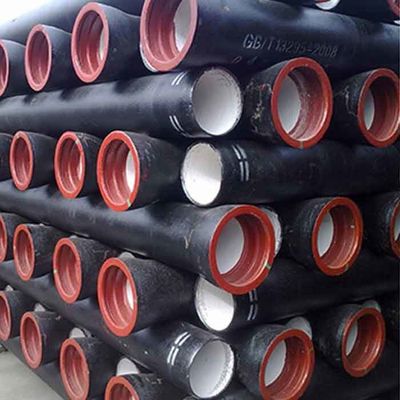

Nodular cast iron pipe refers to a pipe made by high-speed centrifugal casting of a centrifugal nodular cast iron machine after adding spheroidizing agent to cast molten iron above No. 18, referred to as nodular pipe, nodular iron pipe and nodular cast pipe, etc. It is mainly used for the transportation of tap water and is an ideal material for tap water pipelines.



Diameter(mm) Outer diameter(mm) Wall thickness
(mm)
Weight/m
(kg)
Weight/root(kg) Root/km Weight/km(ton)
80 98 6 12.2 76.5 167 12.77
100 118 6.1 15.1 95 167 15.87
150 170 6.3 22.8 144 167 20.05
200 220 6.4 30.6 194 167 32.4
250 274 6.8 40.2 255 167 42.59
300 326 7.2 50.8 323 167 53.94
350 378 7.7 63.2 403 167 67.3
400 429 8.1 75.5 482 167 80.48
450 480 8.6 89.3 575 167 95.86
500 532 9 104.3 669 167 111.72
600 635 9.9 137.3 882 167 147.29
700 738 10.8 173.9 1123 167 187.54
800 842 11.7 215.2 1394 167 232.8
900 945 12.6 260.2 1691 167 282.4
1000 1048 13.5 309.3 2017 167 336.84
1200 1255 15.3 420.1 2758 167 460.69



21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 0

Advantage



1. The scalability, high strength and pressure function and corrosion resistance of ductile iron pipes;

2, the elongation rate can reach more than 10%, the tensile strength of the culvert ductile iron pipe is more than 420 MPa, and the pressure value is more than 4 MPa;

3. It has the ability to resist high deformation in the high-pressure water supply and gas pipeline system;

4. Anti-corrosion measures for ductile iron pipe paint, such as corrosion resistance and service life of one hundred years;

5, installation and construction are convenient, and the project cost is economical;

6. Reliability: The ductile iron pipe has a high bearing capacity and a certain elongation, and uses a flexible interface. The axial deviation of 3 to 5 degrees will not produce medium seepage and leakage, and it has strong resistance to earthquakes and Foundation settlement.



Details

21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 1

21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 2





Application



1. Urban domestic water. Domestic water in cities is becoming more and more tense, so in addition to drinking water, reclaimed water can be used for watering, car washing, etc.;

2, water diversion pipe. In the city, in order to avoid the depletion of groundwater, iron cast pipes can be used to transport the water from the lake to the city for everyday use;

3. Agricultural irrigation. Because the iron cast pipe has good corrosion resistance and strong compression resistance. In agricultural irrigation, iron cast pipes can be used regardless of the nature of the soil;

4. In industrial production. Iron cast pipes have good rigidity and toughness, which play a great role in use. It can withstand the load and resist the pressure, and transport industrial materials safely.



Certificate



21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 3

21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 4

21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 5

Company Profile



Our company's products are of high quality, and we always adhere to and implement the quality policy of "Quality is the foundation of a company's survival, and providing users with satisfactory products and services is our eternal pursuit". . Our company is a factory direct sale of ductile iron pipes, ductile iron pipe fittings, ductile iron manhole covers, Xinxing ductile pipes, ductile iron well grate; W type flexible cast iron pipe, W type cast iron drainage pipe and pipe fittings; A type flexible cast iron pipe, A type cast iron drainage Pipes and fittings, B-type flexible cast iron pipes, B-type cast iron drainage pipes and pipe fittings and other products. Our company is a group company integrating production and sales. The annual production capacity of ductile iron pipes and flexible drainage pipes is 300,000 tons; the annual sales volume of ductile iron pipes is 120,000 tons and the annual sales volume of flexible drainage pipes is 180,000 tons.





21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 6     21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 7



21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 8     21crmo10 Coated Gray Cast Iron Pipe Austenitic Nodular A536 Customized 9



FAQ



Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.



Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.



Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.
