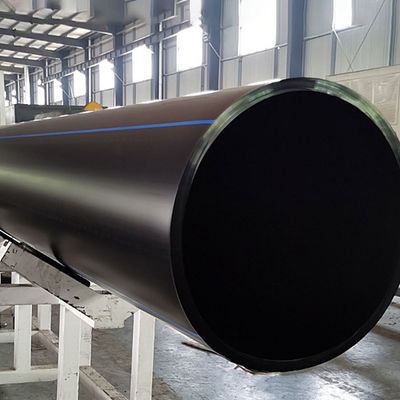

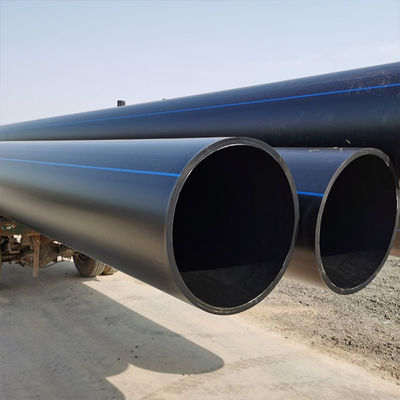

HDPE Water Supply Pipes PE Pipe 90 110 125 160 200PE Plastic Water Pipe Farmland Irrigation Engineering Pipe
----------------------------------------
Basic Info.
HDPE is a very common material, that is, high-density polyethylene. HD means high-density, so the name implies. It is harder than ordinary PE plastic, milky white, has good chemical stability, and has a certain high and low temperature resistance. If the process is hygienic, it is a relatively "clean" material. HDPE water supply pipes and PE water supply pipes are both PE pipe fittings. HDPE is high-density polyethylene, and PE is polyethylene. That's the difference. But the physical properties are different.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
⑴ Reliable connection: the polyethylene pipe system is connected by electric heating method, and the compressive strength of the connector is higher than the compressive strength of the pipe itself.
⑵ Good low-temperature impact resistance: The low-temperature embrittlement temperature of polyethylene is *low, and it can be safely used in the temperature range of -60-60℃. During winter construction, because the raw materials have good impact resistance, it is not easy to produce pipe brittleness.
⑶ Good stress cracking resistance: PE water supply pipes have low vacancy sensitivity, high shear strength and excellent scratch resistance, and the environmental stress cracking resistance is also very prominent.
⑷ Good chemical resistance: PE water supply pipes can withstand the corrosion of a variety of diversified chemical substances, and the chemical substances in the soil are not easy to cause all the degrading effects of the pipes. Polyethylene is an electrical insulator, so it is not prone to rot, rust or electrochemical reaction conditions;
⑸ Good flexibility: The flexibility of PE water supply pipe makes it very easy to bend. In engineering projects, obstructions can be avoided according to the method of changing the direction of the pipeline. In many places, the flexibility of the pipeline can reduce the amount of pipe fittings and reduce the installation cost.
Details
Application
Polyethylene PE water supply pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.
Certificate
Company Profile
High Mountain Pipe Industry will uphold the service concept of "Concentrate on managing well, and do more with your heart", pursue the corporate spirit of self-confidence, perseverance, cooperation, sincere dedication, and pragmatic innovation, and is willing to sincerely cooperate with friends from all walks of life to create a harmonious and beautiful future.
We has several internationally advanced fully automated production lines with an annual output value of more than 100 million yuan. The company has successively passed ISO9001 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system certification, and has obtained various certifications and honor. The company's products include four series of water supply pipes, drainage pipes, gas pipes, power communication pipes, various pressure specifications of PVC-U, PVC-M, HDPE water supply pipes, large-diameter HDPE steel belt corrugated pipes, and glass fiber reinforced plastics Pipes, HDPE various multi-hole plum blossom pipes, optical cable telecommunication pipes, etc.
FAQ
Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
Q: Can I customize the size I need?
A: Yes
