HDPE Double-Wall Corrugated Pipe Reinforced Steel Belt Spiral Pipe Inner Rib Plastic Carat Pipe Drainage Pipes
----------------------------------------
Basic Info.

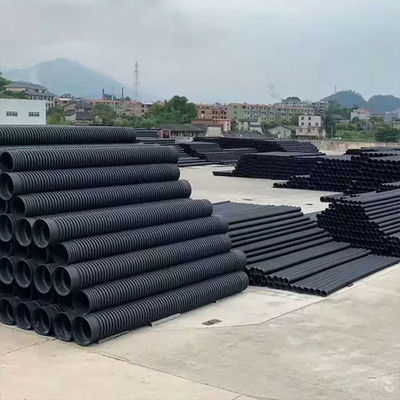

HDPE double-wall corrugated pipe: the pipe wall section and flaring are double-layer structure, the inner wall is smooth and flat, and the outer wall is equidistantly arranged pipe with trapezoidal hollow structure. Nominal diameter (DN): The nominal diameter of the pipe, which is divided into two types: inner diameter series and outer diameter series. Circumferential bending stiffness (KN/㎡): a measure of the pipe’s ability to resist circumferential deformation.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Temperature resistance -40℃-60℃
2. Small resistance and large flow
3. Strong flame retardancy
4. Long service life
5. Low comprehensive cost
6. Acid and alkali resistance and corrosion resistance
7. High strength, strong seismic performance
8. Energy saving and consumption reduction
9. Convenient installation and transportation
Details
Application
Municipal engineering: the pipe wall section and flaring are double-layered structure, the inner wall is smooth and flat, and the outer wall is equidistantly arranged pipes with trapezoidal hollow structure. Industry: The nominal diameter of the pipe is divided into two types: inner diameter series and outer diameter series. Road utilities: a measure of the ability of pipelines to resist circumferential deformation.
Certificate
Company Profile
High Mountain Pipe is a company specializing in the production of hdpe double-wall corrugated pipes, plastic corrugated pipes, hdpe drainage pipes, HDPE-enhanced double-wall hollow winding pipes, HDPE-enhanced double-wall socket flared hollow winding pipes, HDPE double-wall corrugated pipes, hollow bi-well pipes, HDPE An enterprise that winds structure wall B type pipe (carat pipe), HDPE wind structure wall C type pipe (carat pipe), and inner rib reinforced polyethylene spiral corrugated pipe. The company has 61 fully automated production equipment (large-caliber production lines) of advanced technology in the industry, and two imported testing equipment laboratories. It implements a strict quality control system to ensure the quality of products from raw materials to finished products. The product has been tested by the National Chemical Building Materials Testing Center, and the performance indicators of B and C pipes are in compliance with the GB/T19472.2-2017 standard. It has passed the China Environmental Protection Mark certification and won the 1S09001-2015 quality system certification.
FAQ
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
Q: Which payment method can your company use?
A: T/T, L/C or full trade insurance. You can choose the one that is convenient for you.
