Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM02010
High Light:

HDPE Corrugated Polyethylene Drainage Pipes

,

Reinforced Corrugated Polyethylene Drainage Pipes

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM02010
Specification: DN20mm-1600mm
Color: Black
Usage: Water Draining
Raw Material: PE100
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
Product Description

HDPE steel belt corrugated pipe spiral reinforced double-wall hollow winding pipe large-diameter municipal drainage pipes

----------------------------------------



Basic Info.



HDPE resin is high-density polyethylene with excellent chemical stability, aging resistance and environmental stress cracking resistance. The applicable temperature range is -40°C—40°C, with strong pressure-bearing capacity and good comprehensive mechanical properties.



Size   PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
    SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(inch) OD(mm) thickness thickness thickness thickness thickness thickness
1/2 20 2.3 2.3
3/4 25 3 2.3 2.3
1 32 3.6 3 2.4
1 1/4 40 4.5 3.7 3 2.4
1 1/2 50 5.6 4.6 3.7 3
2 63 7.1 5.8 4.7 3.8
2.5 75 8.4 6.8 5.6 4.5
3 90 10.1 8.2 6.7 5.4 4.3
4 110 12.3 10 8.1 6.6 5.3 4.2
5 125 14 11.4 9.2 7.4 6 4.8
5 140 15.7 12.7 10.3 8.3 6.7 5.4
6 160 17.9 14.6 11.8 9.5 7.7 6.2
7 180 20.1 16.4 13.3 10.7 8.6 6.9
8 200 22.4 18.2 14.7 11.9 9.6 7.7
8 225 25.2 20.5 16.6 13.4 10.8 8.6
10 250 27.9 22.7 18.4 14.8 11.9 9.6
11 280 31.3 25.4 20.6 16.6 13.4 10.7
12 315 35.2 28.6 23.2 18.7 15 12.1
14 355 39.7 32.2 26.1 21.1 16.9 13.6
16 400 44.7 36.3 29.4 23.7 19.1 15.3
18 450 50.3 40.9 33.1 26.7 21.5 17.2
20 500 55.8 45.4 36.8 29.7 23.9 19.1
22 560 62.5 50.8 41.2 33.2 26.7 21.4
24 630 70.3 57.2 46.3 37.4 30 24.1
28 710 79.3 64.5 52.2 42.1 33.9 27.2
32 800 89.3 72.6 58.8 47.4 38.1 30.6
36 900   81.8 66.2 53.3 42.9 34.4
40 1000   90.2 72.5 59.3 47.7 38.2
48 1200     88.2 67.9 57.2 45.9
55 1400     102.9 82.4 66.7 53.5
60 1500     110.2 88.2 71.4 57.6
65 1600     117.6 94.1 76.2 61.2

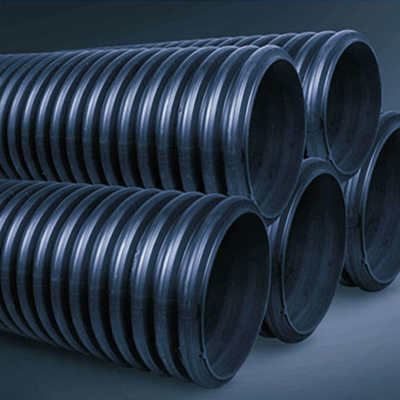

Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 0



Advantage



1. Good chemical stability: HDPE molecules have no polarity, good chemical stability, no algae and bacteria, no fouling, and are environmentally friendly products.

2. Good connection strength: Socket electric fusion or butt joint thermal fusion is adopted, with few joints and no leakage.

3. Low water flow resistance: The inner surface of HDPE pipe is smooth, with low friction coefficient and large flow.

4. Good resistance to low-temperature brittleness: the brittleness temperature is (-40℃), and special protective measures are not required for construction under general low-temperature conditions (0℃).

5. Good abrasion resistance: The comparison test of the abrasion resistance of HDPE pipes and steel pipes shows that the abrasion resistance of HDPE pipes is 4 times that of steel pipes.

6. Strong pressure resistance: It has good impact resistance, even if there is a water hammer 2.5 times the nominal pressure, it will not cause any damage to the pipeline.

7. Anti-aging and long service life: HDPE pipes can be stored or used outdoors for 50 years without being damaged by ultraviolet radiation.



Details

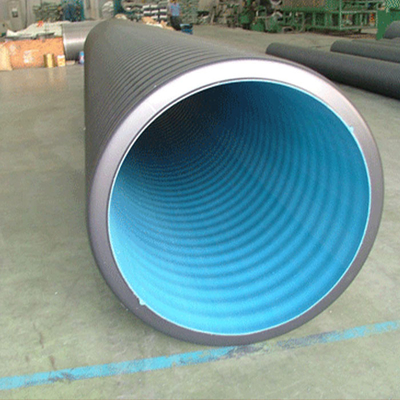

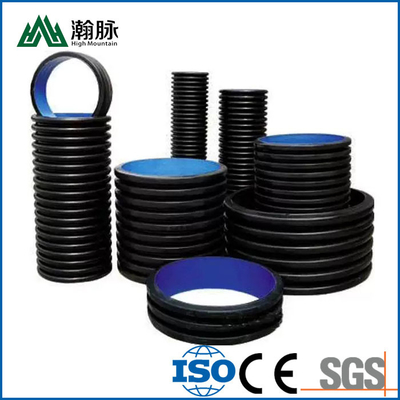

Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 1    Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 2

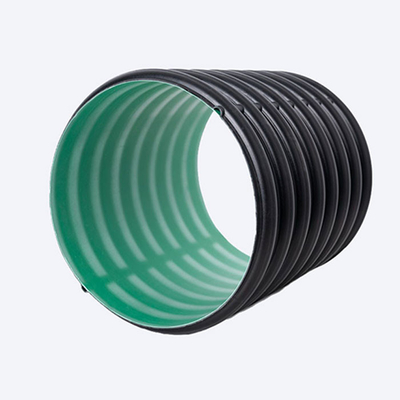

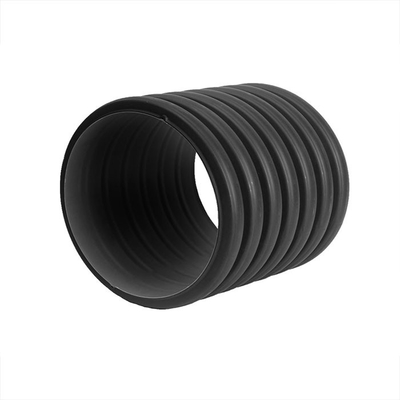

Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 3     Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 4


Application



1. Underground drainage of the site preparation project.

2. Water and soil conservation of slope development in hillside land.

3. Drainage of tunnels and underpasses.

4. Vertical and horizontal drainage on the back of various retaining walls and side ditches of expressways.

5. Drainage of rest green areas such as golf courses, sports fields, and parks.

6. Water supply and drainage for municipal engineering, water purification plants, sewage plants, garbage dumps, etc.

7. Vertical and horizontal drainage and permeation of expressways.



Certificate



Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 5

Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 6

Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 7

Company Profile



High Mountain Pipe is a company specializing in the production of hdpe double-wall corrugated pipes, plastic corrugated pipes, hdpe drainage pipes, HDPE-enhanced double-wall hollow winding pipes, HDPE-enhanced double-wall socket flared hollow winding pipes, HDPE double-wall corrugated pipes, hollow bi-well pipes, HDPE An enterprise that winds structure wall B type pipe (carat pipe), HDPE wind structure wall C type pipe (carat pipe), and inner rib reinforced polyethylene spiral corrugated pipe. The company has 61 fully automated production equipment (large-caliber production lines) of advanced technology in the industry, and two imported testing equipment laboratories. It implements a strict quality control system to ensure the quality of products from raw materials to finished products. The product has been tested by the National Chemical Building Materials Testing Center, and the performance indicators of B and C pipes are in compliance with the GB/T19472.2-2017 standard. It has passed the China Environmental Protection Mark certification and won the 1S09001-2015 quality system certification.





Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 8     Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 9



Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 10     Steel Belt HDPE Corrugated Polyethylene Drainage Pipes Reinforced Hollow Winding 11



FAQ



Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.



Q: Can I customize the size I need?
A: Yes
