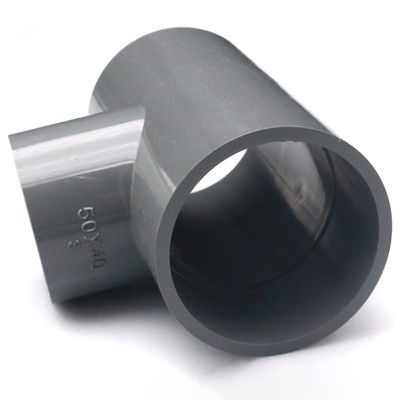

Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM06007
High Light:

Customized PVC Tube Fittings

,

DN20 PVC Tube Fittings

,

Grey PVC Pipe Reducing Tee

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM06007
Specification: DN20-DN800mm
Color: Black,white,grey,green Or At Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
Working Pressure: 0.2mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

PVC Pipe Reducing Tee 20 25 32 40 50 63 75 90 Size Tee Reducing Tee Grey PVC Tube Fittings

----------------------------------------



Basic Info.



PVC pipe fittings are fittings for connecting pvc drainage pipes. There are a variety of specifications and models to choose from, or they can be customized according to needs.
Specification outer diameter: 32mm-315mm



DN.mm Wall thickness(mm)
0.63 M pa 0.8Mpa l.OMpa 1.25Mpa 1.6Mpa 2.0Mpa
20 - - - - 2.0 2.0
25 - - - - 2.0 2.0
32 - - - - 2.0 2.0
40 - - - - 2.0 2.0
50 - - - - 2.0 2.4
50 - - - 2.0 2.4 3.0
63 - - 2.0 2.5 3.0 3.8
75 - 2.0 2.3 2.9 3.6 4.5
90 2.0 2.2 2.8 3.5 4.3 6.5
110 2.2 2.7 3.4 4.2 5.3 6.6
125 2.5 3.1 3.9 4.8 6.0 7.4
140 2.8 3.5 4.3 5.4 6.7 8.3
160 3.2 4.0 4.9 6.2 7.7 9.5
180 3.6 4.4 5.5 6.9 8.6 10.7
200 3.9 4.9 6.2 7.7 9.6 11.9
225 4.4 5.5 6.9 8.6 10.8 13.4
250 4.9 6.2 7.7 9.6 11.9 14.8
280 5.5 6.9 8.6 10.7 13.4 16.6
315 6.2 7.7 9.7 12.1 15.0 18.7
355 7.0 8.7 10.9 13.6 16.9 21.1
400 7.9 9.8 12.3 15.3 19.1 23.7
450 8.8 11.0 13.8 17.2 21.5 26.7
500 8.9 12.3 15.3 19.1 23.9 29.7
560 11.0 13.7 17.2 21.4 26.7 33.2
630 12.3 15.4 19.3 24.1 30.0 37.4



Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 0



Advantage



Compared with traditional metal pipes, plastic pipes have the characteristics of light weight, corrosion resistance, high compressive strength, sanitation and safety, low water flow resistance, energy saving, metal saving, improved living environment, long service life, convenient installation, etc.



Details



Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 1     Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 2



Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 3      Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 4


Application



1. Tap water piping works
2. Water-saving irrigation piping project
3. Piping works for construction
4. Post and telecommunications cable duct
5. Chemical plants are used as infusion piping.
Others are also used in well sinking engineering, medical piping engineering, mineral brine transportation piping engineering, electrical piping engineering, etc.



Certificate



Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 5

Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 6

Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 7

Company Profile



High Mountain Pipe is a well-known PVC pipe manufacturer and wholesaler in Jiangsu. It produces multi-caliber HDPE pipes, pvc pipes, pvc hoses and accessories and supporting machines. The products are widely used. It is the first choice for watering and irrigation of agricultural and forestry breeding gardens. The pipeline is An essential transmission tool for industrial, agricultural, and construction engineering drainage cleaning. Complete specifications, can be customized according to customer needs, use quality to create a brand, and use service to win trust.



The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!



Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 8      Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 9



Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 10      Grey PVC Tube Fittings DN20 25 32 40 50 63 75 90 Pipe Reducing Tee Customized 11





FAQ



Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.



Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.



Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
