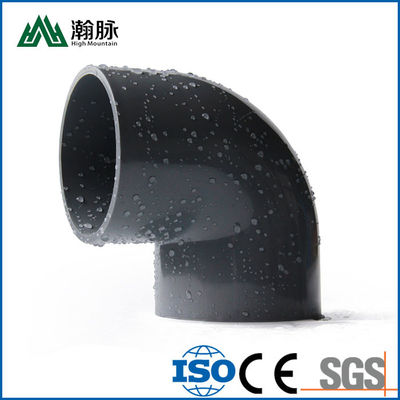

Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM06009
High Light:

DN20 PVC Water Pipe Fittings

,

DN800 PVC Water Pipe Fittings

,

Right Angle PVC Pipe 90 Degree Elbow

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM06009
Specification: DN20-DN800mm
Color: Black,white,grey,green Or At Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
Working Pressure: 0.2mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

PVC Water Supply Pipe Right Angle Elbow 90 Degree Plastic Fitting UPVC Gray White

----------------------------------------



Basic Info.



UPVC pipe is a kind of plastic pipe made of polyvinyl chloride (PVC) resin without plasticizer. With the development of chemical industry technology, it is now possible to produce non-toxic grade pipes, so it has the properties of general polyvinyl chloride and has added some excellent properties. Specifically, it has the advantages of good corrosion resistance and flexibility, so Especially suitable for water supply pipe network. Because it is not conductive, it is not easy to electrochemically react with acid, alkali, and salt. Acid, alkali, and salt are difficult to corrode it, so no external anticorrosive coating and lining are needed. And the flexibility is good, which overcomes the shortcomings of the brittleness of plastic pipes in the past, and can yield under load without cracking.



DN.mm Wall thickness(mm)
0.63 M pa 0.8Mpa l.OMpa 1.25Mpa 1.6Mpa 2.0Mpa
20 - - - - 2.0 2.0
25 - - - - 2.0 2.0
32 - - - - 2.0 2.0
40 - - - - 2.0 2.0
50 - - - - 2.0 2.4
50 - - - 2.0 2.4 3.0
63 - - 2.0 2.5 3.0 3.8
75 - 2.0 2.3 2.9 3.6 4.5
90 2.0 2.2 2.8 3.5 4.3 6.5
110 2.2 2.7 3.4 4.2 5.3 6.6
125 2.5 3.1 3.9 4.8 6.0 7.4
140 2.8 3.5 4.3 5.4 6.7 8.3
160 3.2 4.0 4.9 6.2 7.7 9.5
180 3.6 4.4 5.5 6.9 8.6 10.7
200 3.9 4.9 6.2 7.7 9.6 11.9
225 4.4 5.5 6.9 8.6 10.8 13.4
250 4.9 6.2 7.7 9.6 11.9 14.8
280 5.5 6.9 8.6 10.7 13.4 16.6
315 6.2 7.7 9.7 12.1 15.0 18.7
355 7.0 8.7 10.9 13.6 16.9 21.1
400 7.9 9.8 12.3 15.3 19.1 23.7
450 8.8 11.0 13.8 17.2 21.5 26.7
500 8.9 12.3 15.3 19.1 23.9 29.7
560 11.0 13.7 17.2 21.4 26.7 33.2
630 12.3 15.4 19.3 24.1 30.0 37.4



Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 0



Advantage



Vicat softening: temperature≥74℃
Oven test: the sample has no blistering, chipping and cracking of the joints; defects around the injection point that do not penetrate 50% of the wall thickness of the point are allowed; cracks that are not used to the full wall thickness are allowed at the joint line
Drop test
Appearance: No cracks, the inner and outer surfaces of the pipe fittings are smooth and flat, no bubbles, cracks and obvious marks, depressions, uneven color and discoloration lines are allowed. The pipe fittings should be intact and free of defects, and the gate and overflow should be trimmed and smooth.



Details



Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 1     Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 2



Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 3      Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 4


Application



1. Water supply engineering
2. Electrical engineering
3. Construction engineering
4. Ground water engineering
5. Telephone engineering
6. Well drlling engineering
7. Salt water engineering
8. Gas supply engineering
9. Chenmical factory
10. Paper mill
11. Acidifying∽Fermenting plant
12. Electroplating groend
13. Agricultual plant
14. Mining plant
15. Supply
16. Free way engineering
17. Golf course engineering
18. Fishery use for plastic raft



Certificate



Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 5

Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 6

Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 7

Company Profile



High Mountain Pipe is a well-known PVC pipe manufacturer and wholesaler in Jiangsu. It produces multi-caliber HDPE pipes, pvc pipes, pvc hoses and accessories and supporting machines. The products are widely used. It is the first choice for watering and irrigation of agricultural and forestry breeding gardens. The pipeline is An essential transmission tool for industrial, agricultural, and construction engineering drainage cleaning. Complete specifications, can be customized according to customer needs, use quality to create a brand, and use service to win trust.



The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!



Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 8      Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 9



Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 10      Right Angle PVC Water Pipe Fittings 90 Degree Elbow UPVC DN20 - DN800 11





FAQ



Q: What is the purpose of this pipeline?
A: It is mainly used to transport liquids, and is used on a large scale in urban water supply projects, farmland irrigation, etc.



Q: Where is your company?
A: We are located in Jiangsu, China.



Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
