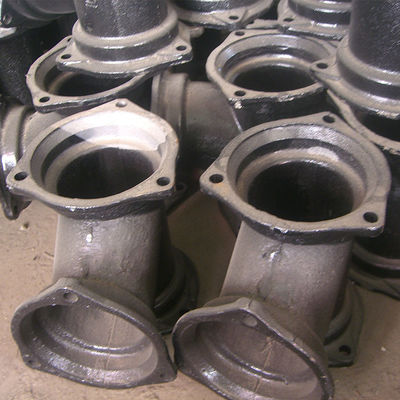

Ductile Iron Pipe Fittings DN 200 500 Tee 90 Degree Cast Iron Elbow Water Supply And Drainage Project
----------------------------------------
Basic Info.
1. The inner and outer surfaces of ductile iron pipe fittings can be coated with bitumen or other anti-corrosion materials. If there are special requirements, please negotiate with the supplier and the buyer.
2. When the ductile iron pipe fittings are used for water supply, the sanitary conditions should comply with the relevant regulations of the health department.
3. Before coating, the inside and outside of the pipe fittings should be cleaned up. After coating, the inside and outside surfaces should be smooth, and the coating should be uniform, firm and not abnormal due to climate changes.
| Diameter(mm) | Outer diameter(mm) | Wall thickness (mm) |
Weight/m (kg) |
Weight/root(kg) | Root/km | Weight/km(ton) |
| 80 | 98 | 6 | 12.2 | 76.5 | 167 | 12.77 |
| 100 | 118 | 6.1 | 15.1 | 95 | 167 | 15.87 |
| 150 | 170 | 6.3 | 22.8 | 144 | 167 | 20.05 |
| 200 | 220 | 6.4 | 30.6 | 194 | 167 | 32.4 |
| 250 | 274 | 6.8 | 40.2 | 255 | 167 | 42.59 |
| 300 | 326 | 7.2 | 50.8 | 323 | 167 | 53.94 |
| 350 | 378 | 7.7 | 63.2 | 403 | 167 | 67.3 |
| 400 | 429 | 8.1 | 75.5 | 482 | 167 | 80.48 |
| 450 | 480 | 8.6 | 89.3 | 575 | 167 | 95.86 |
| 500 | 532 | 9 | 104.3 | 669 | 167 | 111.72 |
| 600 | 635 | 9.9 | 137.3 | 882 | 167 | 147.29 |
| 700 | 738 | 10.8 | 173.9 | 1123 | 167 | 187.54 |
| 800 | 842 | 11.7 | 215.2 | 1394 | 167 | 232.8 |
| 900 | 945 | 12.6 | 260.2 | 1691 | 167 | 282.4 |
| 1000 | 1048 | 13.5 | 309.3 | 2017 | 167 | 336.84 |
| 1200 | 1255 | 15.3 | 420.1 | 2758 | 167 | 460.69 |
Advantage
Strong corrosion resistance, good pressure and bending resistance, convenient joints, water flow, no odor, no harm to health.
Details
Application
It is suitable for the domestic drainage pipes of socket type and clamp type connection of gray cast iron pipes and supporting pipe fittings with internal and external pipe diameters of DN50mm~DN300mm and internal pressure not greater than 0.3MPa in new construction, expansion and reconstruction of civil and industrial buildings. , Rainwater pipes, non-corrosive industrial production wastewater pipes and rain down pipes.
Certificate
Company Profile
Our company's products are of high quality, and we always adhere to and implement the quality policy of "Quality is the foundation of a company's survival, and providing users with satisfactory products and services is our eternal pursuit". . Our company is a factory direct sale of ductile iron pipes, ductile iron pipe fittings, ductile iron manhole covers, Xinxing ductile pipes, ductile iron well grate; W type flexible cast iron pipe, W type cast iron drainage pipe and pipe fittings; A type flexible cast iron pipe, A type cast iron drainage Pipes and fittings, B-type flexible cast iron pipes, B-type cast iron drainage pipes and pipe fittings and other products. Our company is a group company integrating production and sales. The annual production capacity of ductile iron pipes and flexible drainage pipes is 300,000 tons; the annual sales volume of ductile iron pipes is 120,000 tons and the annual sales volume of flexible drainage pipes is 180,000 tons.
