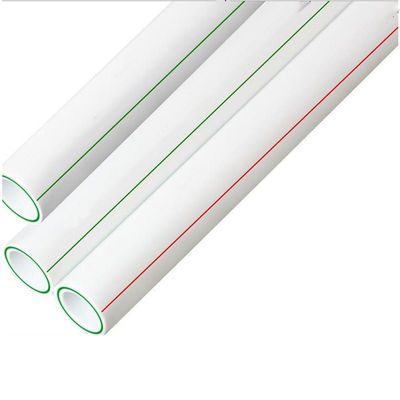

Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: BAILUN
Model Number: HM07017
Specification: DN20-DN1100mm
Color: White Or At Request
Usage: Water Supply
Raw Material: PPR
Size: Customized Size
Working Pressure: 1.25mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

DN50mm Water Supply PPR Pipe

,

Ppr Hot And Cold Water Pipe 2.0mpa

,

ISO9001 Water Supply PPR Pipe

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM07017
Payment & Shipping Terms
Packaging Details: 100m or 40m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

Professional Supplier Green High Quality Cheap Tube Manufacturers In Kenya PPR Pipe With Bestar Price

----------------------------------------



Basic Info.



PPR is the abbreviation of English random copolymer polypropylene (Polypropylene-Random). Commonly known as three-type polypropylene. PPR pipe is a replacement product of galvanized pipe, UPVC water supply pipe, aluminum plastic pipe, PE pipe, PE-X pipe and PE-RT pipe. Because it uses random copolymerization technology, the strength and high temperature resistance of polypropylene are well guaranteed, thus becoming the main force of water pipe materials.



DN(mm) EN(mm) PR(MPa) m/piece
20 2 1.25
1.6
2.0
2.5
100
2.3
2.8
3.4
25 2.3 100
2.8
3.5
4.2
32 2.9 40
3.6
4.4
5.4
40 3.7 40
4.5
5.5
6.7
50 4.6 20
5.6
6.9
8.3
63 5.8 16
7.1
8.6
10.5
75 6.8 12
8.4
10.3
12.5
90 8.2

8



10.1
12.3
15.0
110 10.0 4
12.3
15.1
18.3





Advantage



1. Non-toxic and hygienic. The raw material of PP-R belongs to polyolefin, and its molecule only has carbon and hydrogen elements, which is non-toxic, hygienic and reliable in performance. PP-R will not adversely affect the human body and the environment in the whole process of raw material production, product processing, use and disposal, and is called green building materials. The product can be used not only in hot and cold water systems, but also in pure drinking water systems.

2, heat-resistant insulation. The maximum use temperature is 95°C, and the long-term use temperature is 75°C, which can meet the use of the hot water system specified in the building water supply and drainage design code. Since the thermal conductivity of this product is 0.21W/m°C, which is only 1/200 of the thermal conductivity of steel pipes, it has good thermal insulation performance and can be used in hot water and heating systems, which can save a lot of energy.

3. Corrosion resistance, wear resistance and no scaling. The use of PP-R pipes and fittings can eliminate the worry of pipe fouling and clogging and macular rust in basins and bathtubs. The inner and outer walls are uniform and smooth, the flow resistance is small, the color is soft, and the shape is beautiful.

4, anti-freeze crack. The excellent elasticity of the PP-R material enables the section of the pipe to expand with the frost heaving liquid, thereby absorbing the volume of the frost heaving liquid without bursting.

5. Light weight and high strength. The specific gravity of PP-R pipes and fittings is only one-eighth of ordinary metal pipes, and the pressure resistance test strength is above 5MPa (50kg/cm2), with good toughness and impact resistance.

6. Easy and reliable installation. The hot-melt connection of PP-R pipes and fittings can be completed within a few seconds or tens of seconds by special tools. The strength of the joints of the pipes and fittings connected by hot-melt is greater than the strength of the pipes themselves. Compared with solvent bonding, elastic sealing bearing and other mechanical connection methods, this unique hot-melt connection method of PP-R pipeline has lower cost, higher speed, simple operation, safety and reliability. Consider whether there is leakage at the connection during long-term use. It is connected with metal pipes and water appliances, using high-quality copper inserts, which is safe and reliable.

7. Long service life: The service life of the pipeline system is 50-100 years under normal use.



Details



Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 0



Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 1



Application



A very important step in the installation of PPR water pipes is to heat them with a hot melt machine. A little skill is required in this process. The main thing is that the best hot-melt temperature needs to be controlled at 260°. Generally, the PPR water pipes and pipe fittings in the decoration building materials after hot-melting should be completely integrated, and their strength can be tested by some pressure tests and other methods. , to ensure the safety of use. In addition, no matter what your home decoration style is, you also need to pay attention when installing PPR water pipes. Usually, PPR water pipes are not installed in the way of surface installation, but mostly in the form of concealed installation.



Certificate



Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 2

Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 3

Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 4

Company Profile



Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.



The company analyzes the lifestyle and aesthetic trends of modern people, integrates the concept of excellent pipeline home culture, and relies on the industry-leading integrated system of R&D, design, production, installation, and service to develop a one-stop personalized customized pipeline system solution. Provide optimized, cost-effective health products for thousands of families.



Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 5     Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 6



Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 7     Professional Supplier Water Supply PPR Pipe DN20 DN25 DN32 DN40 DN50mm 8



FAQ



Q: What is the delivery time?
A: We always have common products in stock and can be shipped within 30 days.
Large orders require 15 days to complete production.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.



Q: Can I customize the size I need?
A: Yes
