Insulation PP Fittings PPR Pipe Fitting For Water Supply
100
MOQ
0.5$(1~10per);0.43$(>1000per)
Price
Insulation PP Fittings PPR Pipe Fitting For Water Supply
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM08011
High Light:

Water Supply PPR Pipe Fitting

,

DN20mm PPR Pipe Fitting

Payment & Shipping Terms
Packaging Details: 50 or 100 per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM08011
Specification: DN20-DN1100mm
Color: White Or At Request
Usage: Water Supply
Raw Material: PPR
Size: Customized Size
Working Pressure: 1.25mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

China Big Factory Good Price List Insulation PP Fittings PPR Pipe Fitting For Water Supply

----------------------------------------



Basic Info.



PPR is the abbreviation of three-type polypropylene, also known as random copolymer polypropylene pipe. It adopts the method of heat welding, has special welding and cutting tools, and has high plasticity. The price is also very economical. With the addition of thermal insulation layer, the thermal insulation performance is better, and the pipe wall is also very smooth, excluding the joints of the inner and outer wires. It is generally used in embedded walls, or in pre-embedded pipes in deep wells. PPR pipe is moderate in price, stable in performance, heat-resisting, heat-insulating, corrosion-resistant, smooth inner wall without scaling, safe and reliable in the pipeline system, impermeable, and has a service life of up to 50 years. However, the construction technical requirements are high, and special tools and professionals are required for construction to ensure the safety of the system.



DN EN 20℃ Pressure Temperature range
20mm 2.8mm 2.0Mpa ﹣30~110℃
3.4mm 2.5Mpa
25mm 3.5mm 2.0Mpa
4.2mm 2.5Mpa
30mm 4.3mm 2.0Mpa
5.6mm 2.5Mpa
35mm 5.6mm 2.0Mpa
6.2mm 2.5Mpa
50mm 7.3mm 2.0Mpa
7.8mm 2.5Mpa
60mm 8.0mm 2.0Mpa
8.5mm 2.5Mpa



Insulation PP Fittings PPR Pipe Fitting For Water Supply 0



Advantage



Compared to PP homopolymers, random copolymers have improved optical properties (increased clarity and reduced haze), improved impact resistance, increased flexibility, and reduced melting temperature, which in turn also reduces thermal fusion temperature ; at the same time substantially identical to homopolymers in terms of chemical stability, water vapour barrier properties and organoleptic properties (low odor and taste).



Details

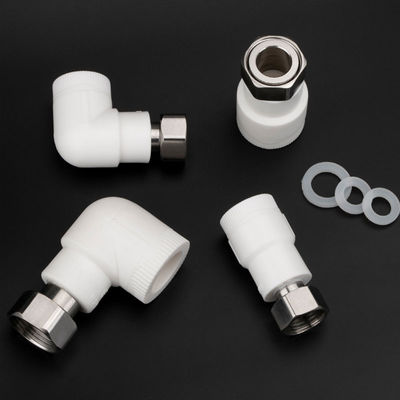

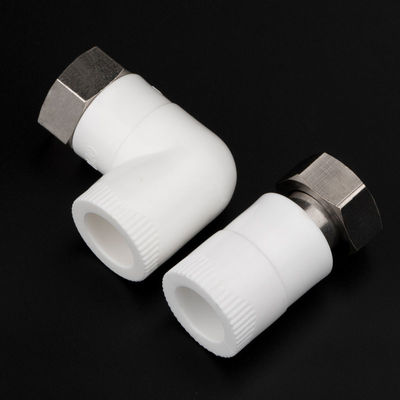

Insulation PP Fittings PPR Pipe Fitting For Water Supply 1     Insulation PP Fittings PPR Pipe Fitting For Water Supply 2



Insulation PP Fittings PPR Pipe Fitting For Water Supply 3     Insulation PP Fittings PPR Pipe Fitting For Water Supply 4



Application



1 Hot and cold water systems in buildings, including central heating systems;
2 Heating systems in buildings, including floors, siding and radiant heating systems;
3. Pure water supply system for direct drinking;
4 Central (centralized) air conditioning system;
5. Industrial pipeline systems such as transport or discharge of chemical media.
6Piping systems such as air passages for cylinder transmission.



Certificate



Insulation PP Fittings PPR Pipe Fitting For Water Supply 5

Insulation PP Fittings PPR Pipe Fitting For Water Supply 6

Insulation PP Fittings PPR Pipe Fitting For Water Supply 7



Company Profile



Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.


Insulation PP Fittings PPR Pipe Fitting For Water Supply 8     Insulation PP Fittings PPR Pipe Fitting For Water Supply 9



Insulation PP Fittings PPR Pipe Fitting For Water Supply 10     Insulation PP Fittings PPR Pipe Fitting For Water Supply 11



FAQ



Q: What is the purpose of this pipeline?
A: It is mainly used to transport liquids, and is used on a large scale in urban water supply projects, farmland irrigation, etc.



Q: What certificates do you have for this product?
A: ISO, CE, SGS, etc.



Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
