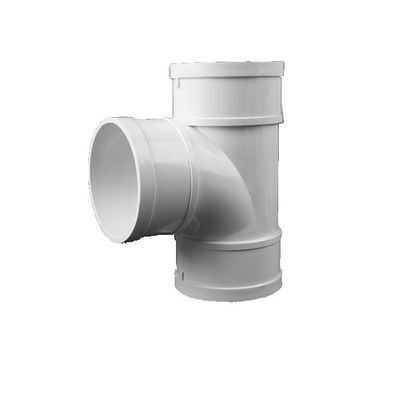

10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM06008-1
High Light:

10Inch PVC Drainage Pipe Fittings

,

PVC Drainage Pipe Fittings 50mm

,

physical properties PVC Drainage Pipe Fittings

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM06008-1
Specification: DN20-DN800mm
Color: Black,white,grey,green Or At Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
Working Pressure: 0.2mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

Competitive Price Of 10 Inch Diameter PVC Drainage Pipe Fittings Can Be Customized

----------------------------------------



Basic Info.



There are PVC pipes with a nominal outer diameter of 50CM, but the largest soft PVC pipe is generally 50mm.
Rigid PVC pipe has a nominal outer diameter: (unit mm)
2.5, 3, 4, 5, 6,...355, 400, 450, 500, 560, 630, 710, 800, 900, 1000, etc.



DN.mm Wall thickness(mm)
0.63 M pa 0.8Mpa l.OMpa 1.25Mpa 1.6Mpa 2.0Mpa
20 - - - - 2.0 2.0
25 - - - - 2.0 2.0
32 - - - - 2.0 2.0
40 - - - - 2.0 2.0
50 - - - - 2.0 2.4
50 - - - 2.0 2.4 3.0
63 - - 2.0 2.5 3.0 3.8
75 - 2.0 2.3 2.9 3.6 4.5
90 2.0 2.2 2.8 3.5 4.3 6.5
110 2.2 2.7 3.4 4.2 5.3 6.6
125 2.5 3.1 3.9 4.8 6.0 7.4
140 2.8 3.5 4.3 5.4 6.7 8.3
160 3.2 4.0 4.9 6.2 7.7 9.5
180 3.6 4.4 5.5 6.9 8.6 10.7
200 3.9 4.9 6.2 7.7 9.6 11.9
225 4.4 5.5 6.9 8.6 10.8 13.4
250 4.9 6.2 7.7 9.6 11.9 14.8
280 5.5 6.9 8.6 10.7 13.4 16.6
315 6.2 7.7 9.7 12.1 15.0 18.7
355 7.0 8.7 10.9 13.6 16.9 21.1
400 7.9 9.8 12.3 15.3 19.1 23.7
450 8.8 11.0 13.8 17.2 21.5 26.7
500 8.9 12.3 15.3 19.1 23.9 29.7
560 11.0 13.7 17.2 21.4 26.7 33.2
630 12.3 15.4 19.3 24.1 30.0 37.4



10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 0



Advantage



PVC drainage pipe is an alternative to traditional drainage pipes and has better physical and chemical properties. Its inner wall is smooth and has less frictional resistance than conventional drainage materials. Therefore, the installation slope of the horizontal pipe is small, which can increase the indoor net height of the building. At the same time, PVC drainage pipes are lighter in weight, one-fifth of cast iron pipes, easy to transport and operate; adhesive connection is used to facilitate installation and maintenance; the price is lower than conventional drainage pipes, which greatly reduces the project cost; strong corrosion resistance, in construction Sewage and rainwater pipe systems are widely used.





Details

10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 110 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 210 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 310 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 4




Application



PVC pipe has been regarded as the preferred pipe material by the construction industry. It is widely used in various fields and industries. From its own characteristics, it can be fully reflected in the waterway system. Then, what should we pay attention to during the installation process?
1. In order to ensure the safety and cleanliness of the PVC pipe, the pipe should be placed on the top with a bracket, which can ensure that the pipe is not placed anywhere and is not trampled by people, the pipe can also be used cleanly, and it can also prevent sludge residue in the pipe;
2. Before installation, the layout of the construction pipeline should be checked clearly, not only neat, but also strong in structure and smooth;
3. When installing, handle the pipe lightly to avoid damage during handling, and pay attention to the stones or silt staying in the pipe;
4. After the installation is completed, we need to conduct a pressure test for a period of time, and then check that there is no water leakage at each interface during the test, and replace it immediately if found.



Certificate



10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 5

10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 6

10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 7

Company Profile



High Mountain Pipe is a well-known PVC pipe manufacturer and wholesaler in Jiangsu. It produces multi-caliber HDPE pipes, pvc pipes, pvc hoses and accessories and supporting machines. The products are widely used. It is the first choice for watering and irrigation of agricultural and forestry breeding gardens. The pipeline is An essential transmission tool for industrial, agricultural, and construction engineering drainage cleaning. Complete specifications, can be customized according to customer needs, use quality to create a brand, and use service to win trust.



The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!



10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 8      10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 9



10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 10      10 Inch Diameter PVC Drainage Pipe Fittings 50mm DN800mm Customized 11





FAQ



Q: What is the purpose of this pipeline?
A: It is mainly used to transport liquids, and is used on a large scale in urban water supply projects, farmland irrigation, etc.



Q: What certificates do you have for this product?
A: ISO, CE, SGS, etc.



Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
