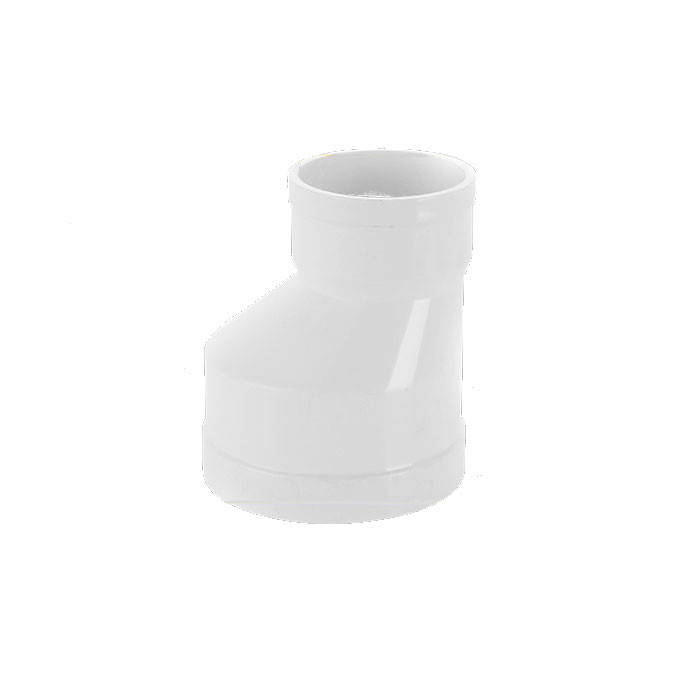

DN800mm PVC Drainage Pipe Fittings Head Reducing Direct

10 Meter/Meters
DN800mm PVC Drainage Pipe Fittings Head Reducing Direct
Features Gallery Product Description Request A Quote
Brand Name: HAIYANG
Model Number: HM06006-1
Specification: DN20-DN800mm
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
Color: Black,white,grey,green Or At Request
Working Pressure: 0.2mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

PVC Reducing Direct Pipe Fittings


DN800mm PVC Reducing Direct Pipe Fittings

Basic Infomation
Place of Origin: China
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

PVC Drainage Pipe Fittings Size Head PVC Reducing Direct PVC Pipe Fittings



Basic Info.


The main component of PVC is polyvinyl chloride, and other components are added to enhance its heat resistance, toughness and ductility. The top layer of this surface film is lacquer, the main component in the middle is polyvinyl chloride, and the bottom layer is a back coating adhesive.
PVC and PVC links are generally bonded with PVC special glue. This method is easy and fast to operate. Large-diameter pipes can also be connected with elastic sealing rings, but the premise is that the flaring of pipes or fittings must be R-type flaring instead of flat expansion. Links between PVC and other materials: flanges are used for large-diameter pipes, and unions or internal and external wire joints are used for small-diameter pipes. Wall thickness(mm)
0.63 M pa 0.8Mpa l.OMpa 1.25Mpa 1.6Mpa 2.0Mpa
20 - - - - 2.0 2.0
25 - - - - 2.0 2.0
32 - - - - 2.0 2.0
40 - - - - 2.0 2.0
50 - - - - 2.0 2.4
50 - - - 2.0 2.4 3.0
63 - - 2.0 2.5 3.0 3.8
75 - 2.0 2.3 2.9 3.6 4.5
90 2.0 2.2 2.8 3.5 4.3 6.5
110 2.2 2.7 3.4 4.2 5.3 6.6
125 2.5 3.1 3.9 4.8 6.0 7.4
140 2.8 3.5 4.3 5.4 6.7 8.3
160 3.2 4.0 4.9 6.2 7.7 9.5
180 3.6 4.4 5.5 6.9 8.6 10.7
200 3.9 4.9 6.2 7.7 9.6 11.9
225 4.4 5.5 6.9 8.6 10.8 13.4
250 4.9 6.2 7.7 9.6 11.9 14.8
280 5.5 6.9 8.6 10.7 13.4 16.6
315 6.2 7.7 9.7 12.1 15.0 18.7
355 7.0 8.7 10.9 13.6 16.9 21.1
400 7.9 9.8 12.3 15.3 19.1 23.7
450 8.8 11.0 13.8 17.2 21.5 26.7
500 8.9 12.3 15.3 19.1 23.9 29.7
560 11.0 13.7 17.2 21.4 26.7 33.2
630 12.3 15.4 19.3 24.1 30.0 37.4


DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 0




PVC drainage pipe is an alternative to traditional drainage pipes and has better physical and chemical properties. Its inner wall is smooth and has less frictional resistance than conventional drainage materials. Therefore, the installation slope of the horizontal pipe is small, which can increase the indoor net height of the building. At the same time, PVC drainage pipes are lighter in weight, one-fifth of cast iron pipes, easy to transport and operate; adhesive connection is used to facilitate installation and maintenance; the price is lower than conventional drainage pipes, which greatly reduces the project cost; strong corrosion resistance, in construction Sewage and rainwater pipe systems are widely used.



DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 1DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 2

DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 3DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 4



PVC pipe has been regarded as the preferred pipe material by the construction industry. It is widely used in various fields and industries. From its own characteristics, it can be fully reflected in the waterway system. Then, what should we pay attention to during the installation process?
1. In order to ensure the safety and cleanliness of the PVC pipe, the pipe should be placed on the top with a bracket, which can ensure that the pipe is not placed anywhere and is not trampled by people, the pipe can also be used cleanly, and it can also prevent sludge residue in the pipe;
2. Before installation, the layout of the construction pipeline should be checked clearly, not only neat, but also strong in structure and smooth;
3. When installing, handle the pipe lightly to avoid damage during handling, and pay attention to the stones or silt staying in the pipe;
4. After the installation is completed, we need to conduct a pressure test for a period of time, and then check that there is no water leakage at each interface during the test, and replace it immediately if found.




DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 5

DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 6

DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 7

Company Profile


High Mountain Pipe is a well-known PVC pipe manufacturer and wholesaler in Jiangsu. It produces multi-caliber HDPE pipes, pvc pipes, pvc hoses and accessories and supporting machines. The products are widely used. It is the first choice for watering and irrigation of agricultural and forestry breeding gardens. The pipeline is An essential transmission tool for industrial, agricultural, and construction engineering drainage cleaning. Complete specifications, can be customized according to customer needs, use quality to create a brand, and use service to win trust.


The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!


DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 8      DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 9


DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 10      DN800mm PVC Drainage Pipe Fittings Head Reducing Direct 11





Q:Is the price on this page correct?
A: The listed price is only for reference, for latest price, pls contact us directly.


Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.


Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.
