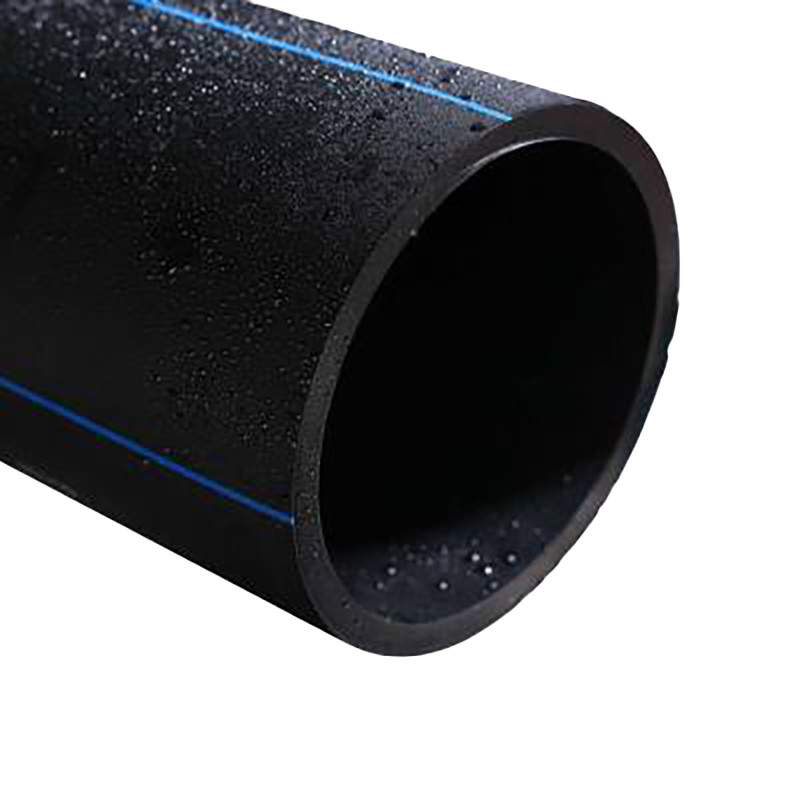

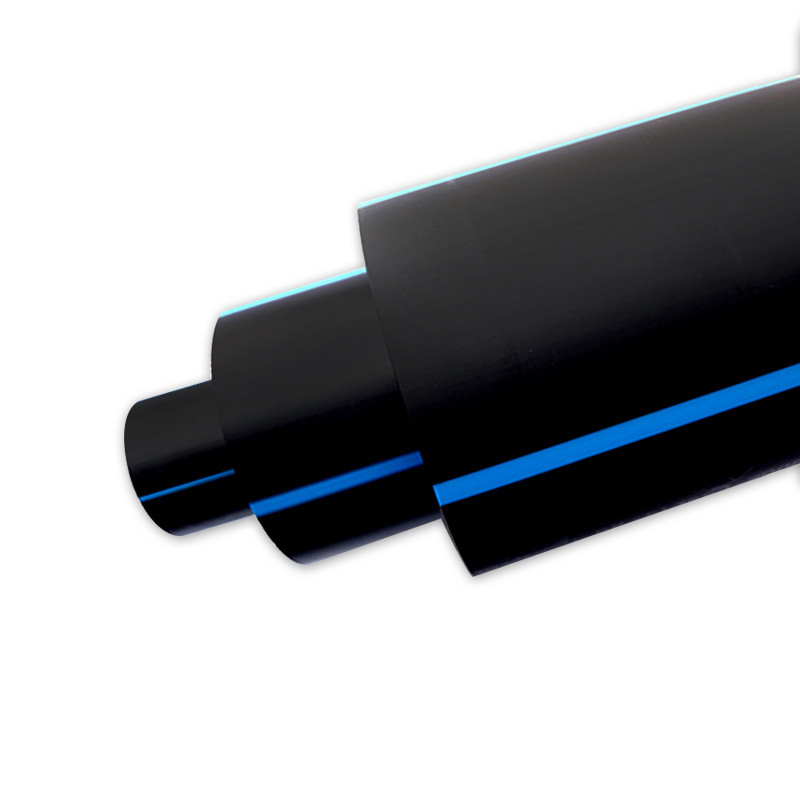

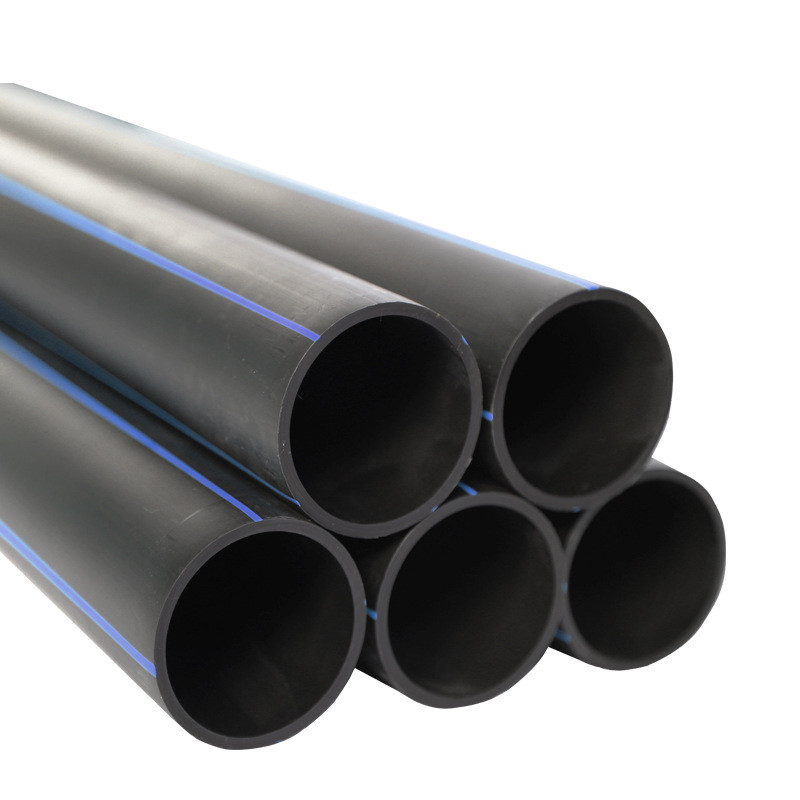

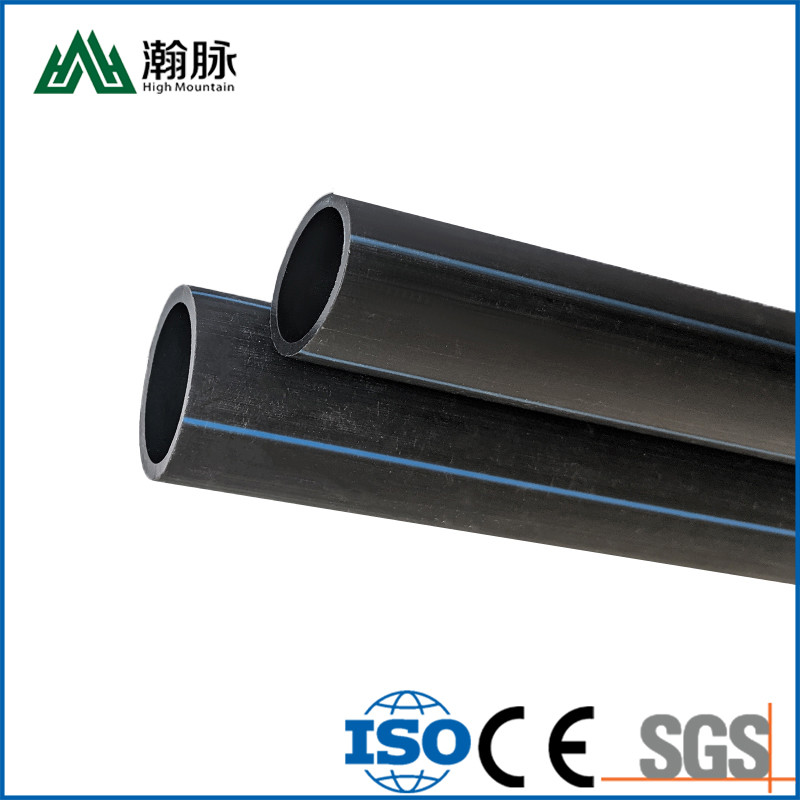

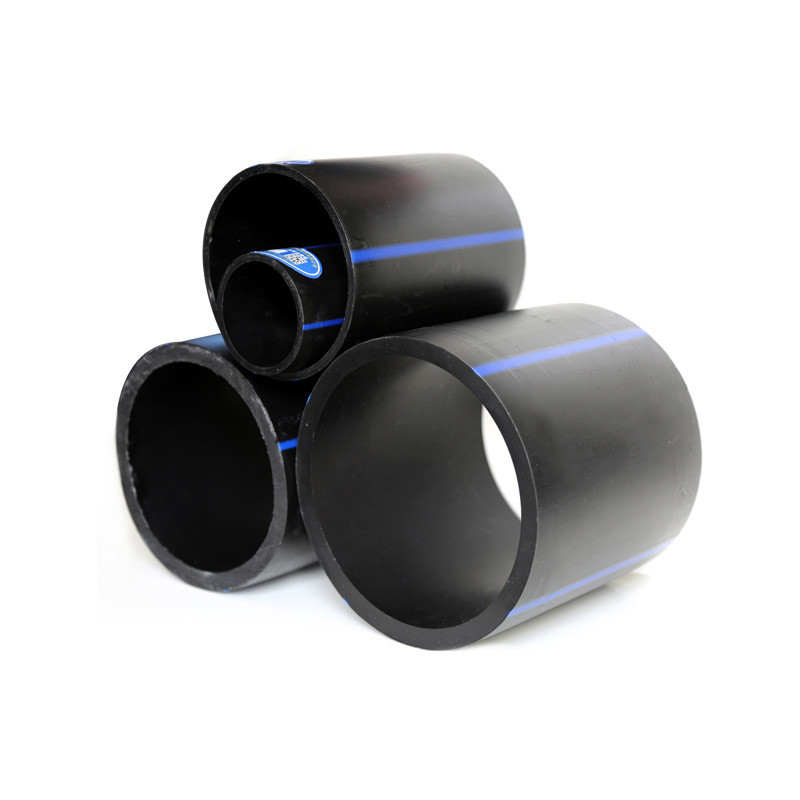

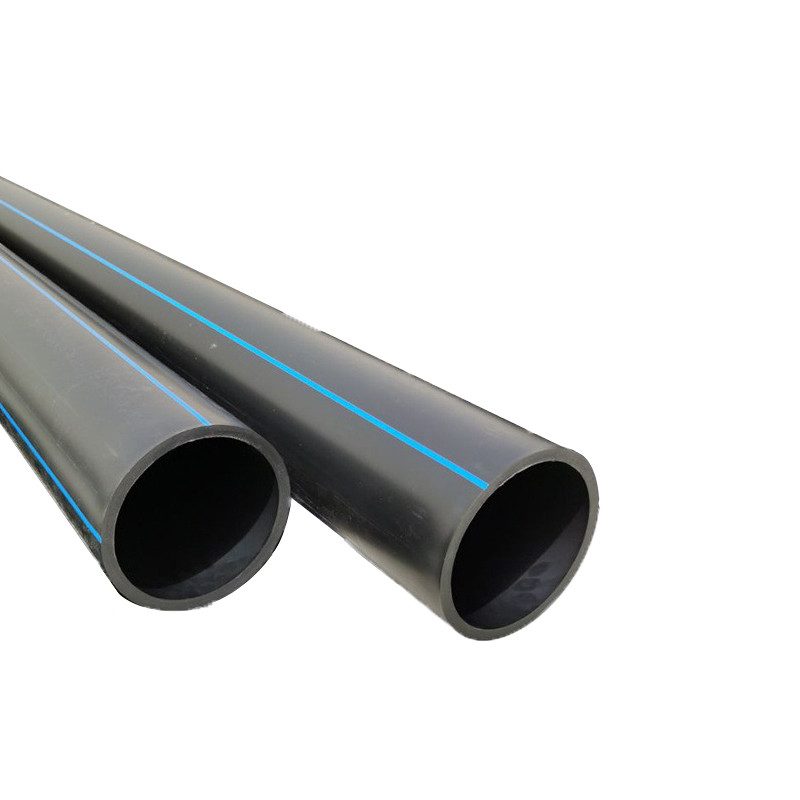

Hdpe Water Supply Pipe 16-Inch Hdpe Pipe For Industrial Applications
----------------------------------------
Basic Info.
HDPE drainage pipe is a replacement product of traditional steel pipes and polyvinyl chloride drainage pipes. It is mainly responsible for drainage of rainwater, sewage, irrigation and drainage of farmland, etc. It is widely used in roads, railway subgrades, subway projects, waste landfills, tunnels, etc. , Green belts, sports grounds and slope protection caused by high water content and other drainage fields, as well as underground irrigation and drainage systems for agriculture and horticulture.
Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
1/2 | 20 | 2.3 | 2.3 | ||||
3/4 | 25 | 3 | 2.3 | 2.3 | |||
1 | 32 | 3.6 | 3 | 2.4 | |||
1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Details
Application
1. Sewage discharge pipe: PE water supply pipe has unique corrosion resistance and is suitable for the discharge of industrial wastewater and sewage. It not only has a long life, but also has low cost and maintenance costs;
2. Natural gas and coal gas pipelines: PE water supply pipes have good creep resistance and economy, and have become the only choice for natural gas pipelines;
3. Renovation of old pipes: it can be used to replace cement pipes, cast iron pipes and steel pipes, without large-scale excavation, and PE water supply pipes can be directly inserted, which is convenient for construction and low in engineering cost, especially suitable for pipeline transformation in old urban areas;
4. Landscaping pipe network: Landscaping requires a large number of water pipes. PE water supply pipes are flexible and low-cost, which is the best choice
Certificate
Company Profile
High Mountain Pipe is A company specializing in the production of PE water supply pipes, PE gas pipes and PE flame-retardant, anti-static mining pipes, PE ground source heat pump pipes, PE siphon drainage pipes, PERT floor heating pipes and supporting PE water supply pipes, PE gas pipes, PE flame retardant, anti- High-tech enterprise of series products such as double-resistance pipe fittings for electrostatic mine, PE ground source heat pump pipe fittings, PE sprayed anticorrosive steel flanges, PE ball valves, PERT floor heating pipe fittings, PE siphon drainage pipe fittings, etc.
FAQ
Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.
Q: Can I customize the size I need?
A: Yes
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
