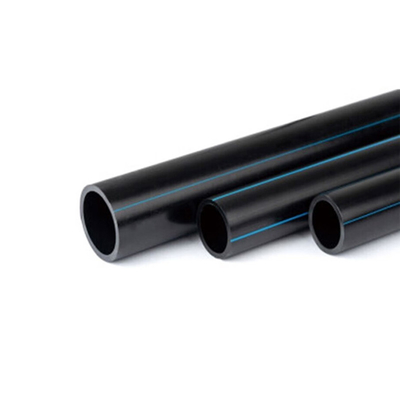

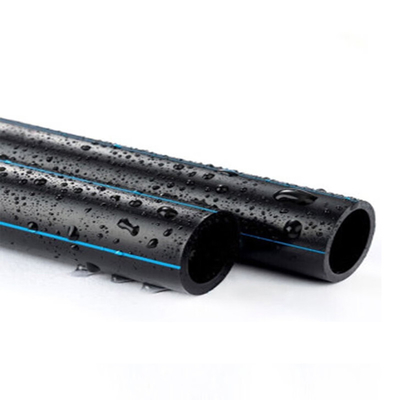

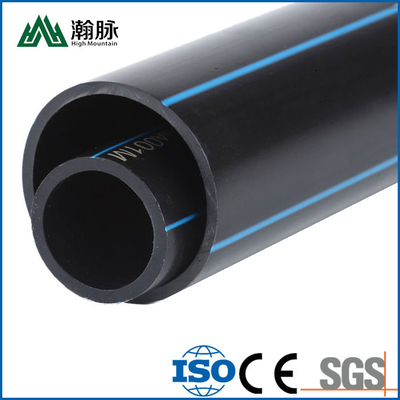

Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM07001
Specification: DN20-DN800mm
Color: Black,white,grey,green Or At Request
Usage: Water Supply
Raw Material: PE
Size: Customized Size
Working Pressure: 0.2mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

PPR Cold And Hot Water Pipe

,

ISO 9001 Cold And Hot Water Pipe

,

6 Inch PPR Pipe For Water Supply

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM07001
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply

----------------------------------------

Basic Info.

When to use HDPE pipes?
HDPE pipes have unique advantages in various application scenarios, which determine when to choose this pipe. First of all, HDPE pipes perform well when transporting liquids and gases underground. Because of their high resistance to corrosion and wear, they are widely used in sewage treatment, water supply systems, and the chemical industry. Secondly, the lightweight design of HDPE pipes makes installation more convenient, especially suitable for underground construction and long-distance transportation. In addition, HDPE pipes have also demonstrated their excellent performance in mining, agricultural irrigation and industrial piping systems.



Size PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(mm) thickness thickness thickness thickness thickness thickness
20 2.3 2.3
25 3.0 2.3 2.3
32 3.6 3.0 2.4
40 4.5 3.7 3.0 2.4
50 5.6 4.6 3.7 3.0
63 7.1 5.8 4.7 3.8
75 8.4 6.8 5.6 4.5
90 10.1 8.2 6.7 5.4 4.3
110 12.3 10.0 8.1 6.6 5.3 4.2
125 14.0 11.4 9.2 7.4 6.0 4.8
140 15.7 12.7 10.3 8.3 6.7 5.4
160 17.9 14.6 11.8 9.5 7.7 6.2
180 20.1 16.4 13.3 10.7 8.6 6.9
200 22.4 18.2 14.7 11.9 9.6 7.7
225 25.2 20.5 16.6 13.4 10.8 8.6
250 27.9 22.7 18.4 14.8 11.9 9.6
280 31.3 25.4 20.6 16.6 13.4 10.7
315 35.2 28.6 23.2 18.7 15.0 12.1
355 39.7 32.2 26.1 21.1 16.9 13.6
400 44.7 36.3 29.4 23.7 19.1 15.3
450 50.3 40.9 33.1 26.7 21.5 17.2
500 55.8 45.4 36.8 29.7 23.9 19.1
560 62.5 50.8 41.2 33.2 26.7 21.4
630 70.3 57.2 46.3 37.4 30.0 24.1
710 79.3 64.5 52.2 42.1 33.9 27.2
800 89.3 72.6 58.8 47.4 38.1 30.6
900   81.8 66.2 53.3 42.9 34.4
1000   90.2 72.5 59.3 47.7 38.2
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2

Advantage

Good hygienic performance: no heavy metal salt stabilizer is added during the processing of PE pipe, the material is non-toxic, no scaling layer, no bacteria breeding,
A good solution to the secondary pollution of urban drinking water.
Excellent corrosion resistance: Except for a few strong oxidants, it can resist the erosion of various chemical media; no electrochemical corrosion.
Long service life: PE pipes can be safely used for more than 50 years under rated temperature and pressure conditions.
Good impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly press through the pipeline, which will not cause the pipeline to break violently.



Details

Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 0Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 1Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 2Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 3



Application

Urban water pipe network system
Replaceable cement, cast iron and steel pipes
Industrial raw material pipeline
Landscaping water supply network
Pipes for sewage discharge
agricultural irrigation pipes
marine pipeline
Seawater desalination pipeline



Certificate



Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 4

Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 5

Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 6

Company Profile



High Mountain Pipe is a production enterprise focusing on core technology of pipelines.

The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.



Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 7 Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 8



Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 9 Farm Irrigation HDPE Cold And Hot Water Pipe 63mm 75mm 110mm Customized For Water Supply 10



FAQ



Q: What are raw materials?
A: PE



Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.



Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
