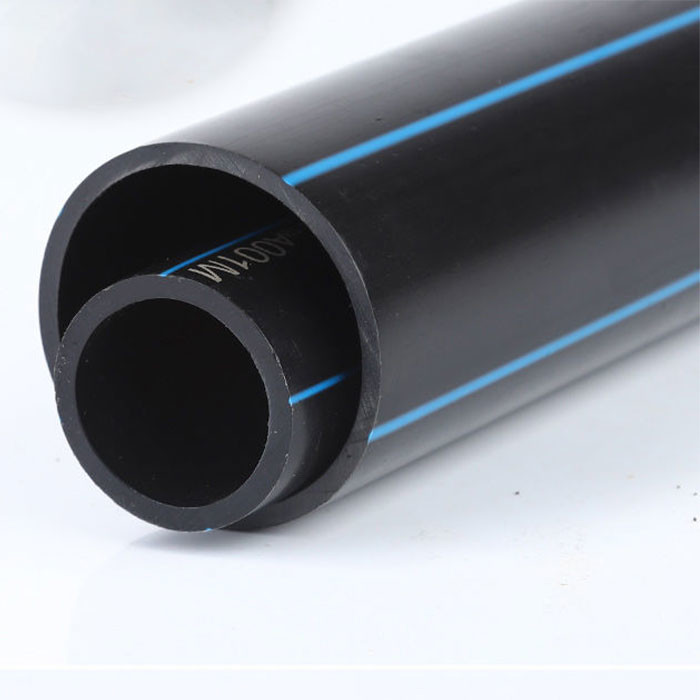

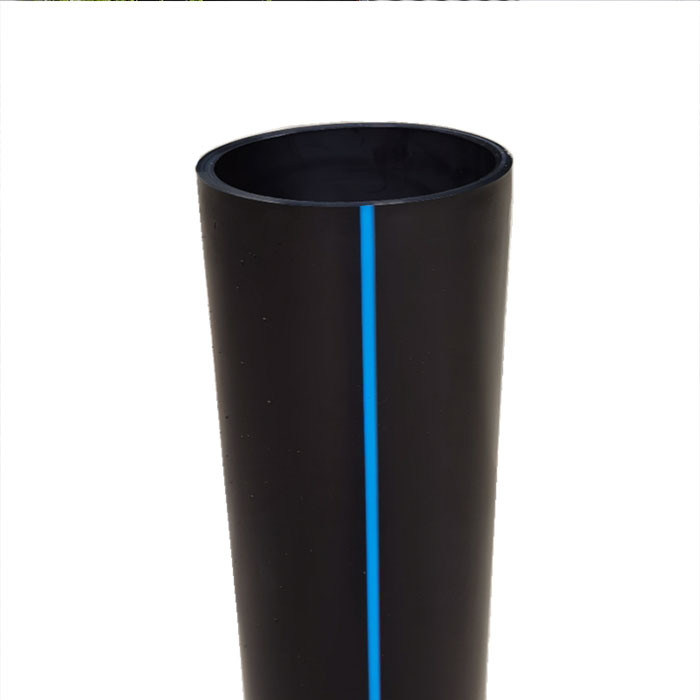

PE Water Supply Pipe Raw Material Pipe HDPE Water Pipe Irrigation Engineering Pipes DN 20 630
----------------------------------------
Basic Info.
High-density polyethylene (HDPE) is a white powder or granular product. It is non-toxic, tasteless, crystallinity is 80%-90%, softening point is 125-135℃, service temperature can reach 100℃; hardness, tensile strength and creep are better than low-density polyethylene; wear resistance, electricity Good insulation, toughness and cold resistance; good chemical stability, insoluble in any organic solvents at room temperature, corrosion resistance to acids, alkalis and various salts; low permeability to water vapor and air, water absorption Low; poor aging resistance, environmental stress cracking resistance is not as good as low-density polyethylene, especially thermal oxidation will reduce its performance, so antioxidants and ultraviolet absorbers must be added to the resin to improve this deficiency. High-density polyethylene film has a lower thermal deformation temperature under stress, so pay attention to it when applying it.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
High-density polyethylene has good heat resistance and cold resistance, good chemical stability, high rigidity and toughness, and good mechanical strength. Dielectric properties and environmental stress cracking resistance are also good. Hardness, tensile strength and creep are better than low-density polyethylene; abrasion resistance, electrical insulation, toughness and cold resistance are all better, but slightly worse than low-density insulation; good chemical stability, at room temperature Under the conditions, it is insoluble in any organic solvents, resistant to corrosion by acids, alkalis and various salts; the film has low permeability to water vapor and air, and low water absorption.

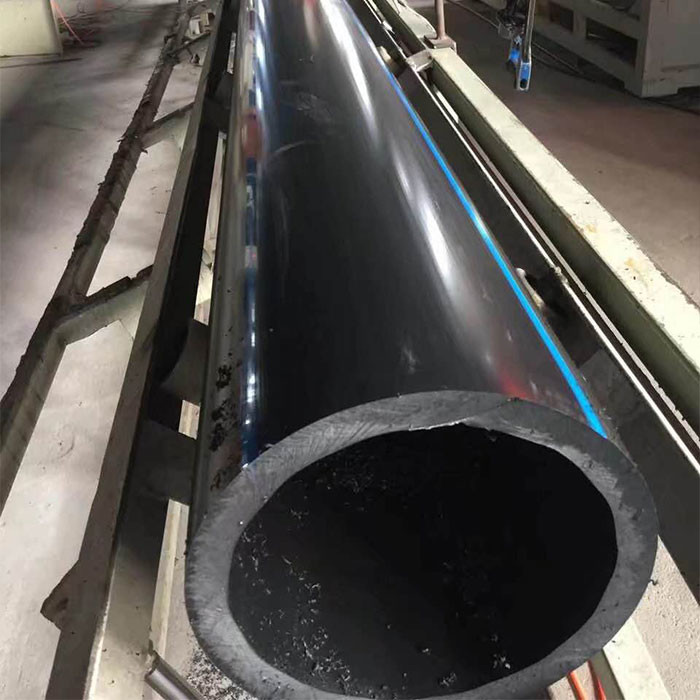

Details
Application
PE pipes are used in a wide range of fields. Among them, water supply pipes and gas pipes are its two largest application markets.

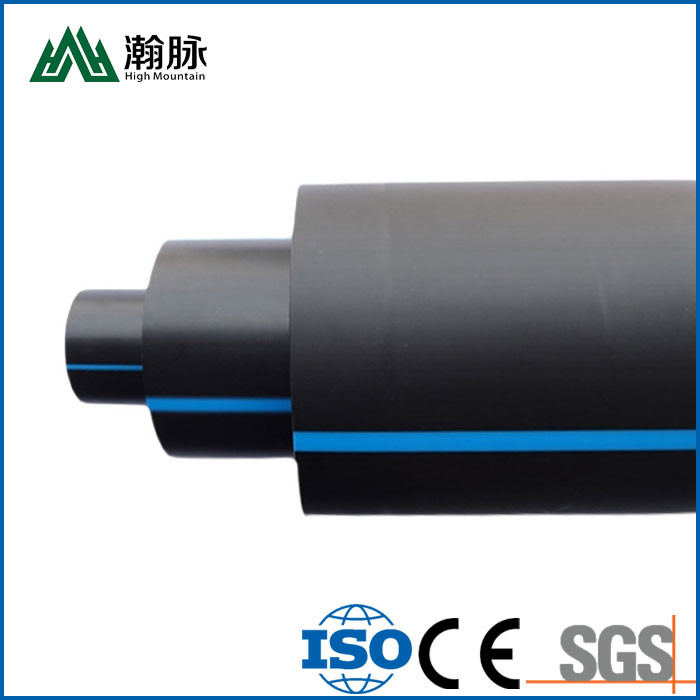

Certificate
Company Profile
High Mountain Pipe Management Industry is mainly use HDPE recycled plastic to develop and produce plastic industrial film. Production of non-toxic, green, corrosion-resistant, and good performance MUHDPE alloy pipes, HDPE national standard corrugated pipes, HDPE national standard corrugated pipes, EPTU three-wall seismic and impact resistant pipes, HDPE steel belts to increase strength spiral corrugated pipes, SRWPE plastic steel dimensional winding pipes , HDPE double wall corrugated pipe, FRPP double wall reinforced corrugated, HDPE water supply pipe, CPVC cable protection pipe, PE porous general cable protection pipe, FRP sand pipe, plastic inspection well and related supporting series products. Provide research and development for different municipal construction pipe network projects. Integrated services in production, sales, installation and engineering skills
