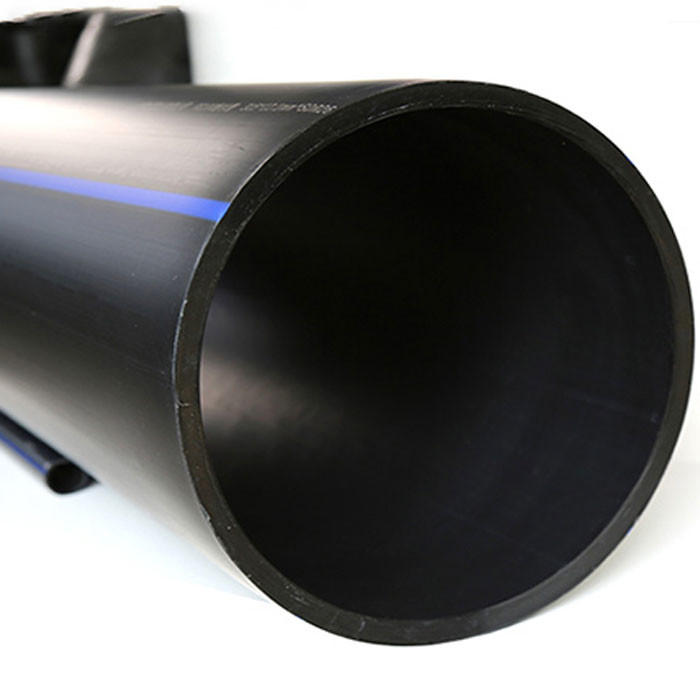

HDPE Water Supply Pipes Threading 50 Irrigation Hot Melt 110 Sprinkler 63 Drainage Tap Water 6 Points
----------------------------------------
Basic Info.
PE pipes for water supply are the replacement products of traditional steel pipes and PVC drinking water pipes.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. High strength, excellent resistance to environmental stress cracking, and good creep resistance;
2. Good toughness, flexibility, strong adaptability to uneven foundations and dislocations, and can withstand harsh environments such as earthquakes and typhoons;
3. Has good weather resistance (including UV resistance) and long-term thermal stability;
4. Corrosion resistance, no need for anti-corrosion treatment, long service life;
5. The inner wall is smooth, the water flow resistance is small, the circulation capacity is large, and the construction cost is saved;
6. Good wear resistance and anti-wear;
7. Good low-temperature impact resistance, can be used safely in the temperature range of -20~40℃, and construction in winter will not be affected;
Details
Application
1. Water supply engineering construction
2. Industrial liquid supply
3. Agricultural irrigation
4. Other occasions where liquids need to be transported
Certificate
Company Profile
High Mountain Pipe Industry has several internationally advanced fully automated production lines with an annual output value of more than 100 million yuan. The company has successively passed ISO9001 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system certification, and has obtained various certifications and honor. The company's products include four series of water supply pipes, drainage pipes, gas pipes, power communication pipes, various pressure specifications of PVC-U, PVC-M, HDPE water supply pipes, large-diameter HDPE steel belt corrugated pipes, and glass fiber reinforced plastics Pipes, HDPE various multi-hole plum blossom pipes, optical cable telecommunication pipes, etc.
Regardless of the past, present and future, the company regards excellent product quality as the golden sign of fighting the market. Adopting quality tracking and link checks, a strict quality inspection and supervision system is formed. The Henan Provincial Product Quality Supervision and Inspection Institute has been entrusted to carry out product tracking and inspection all the year round, and all of them have reached the national designated standards. Can fully meet the various needs of users. Service is also a product, and customer first is our eternal choice. Our after-sales team listens to your dispatch at any time, and provides reasonable plans for your product design, construction, and installation, as well as meticulous, thoughtful, high-quality and fast technical services throughout the process.
The company will uphold the service concept of "Concentrate on managing well, and do more with your heart", pursue the corporate spirit of self-confidence, perseverance, cooperation, sincere dedication, and pragmatic innovation, and is willing to sincerely cooperate with friends from all walks of life to create a harmonious and beautiful future.
FAQ
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
Q: What are your payment terms?
A: Accept the T/T and L/C terms.
Q: What are raw materials?
A: PE
