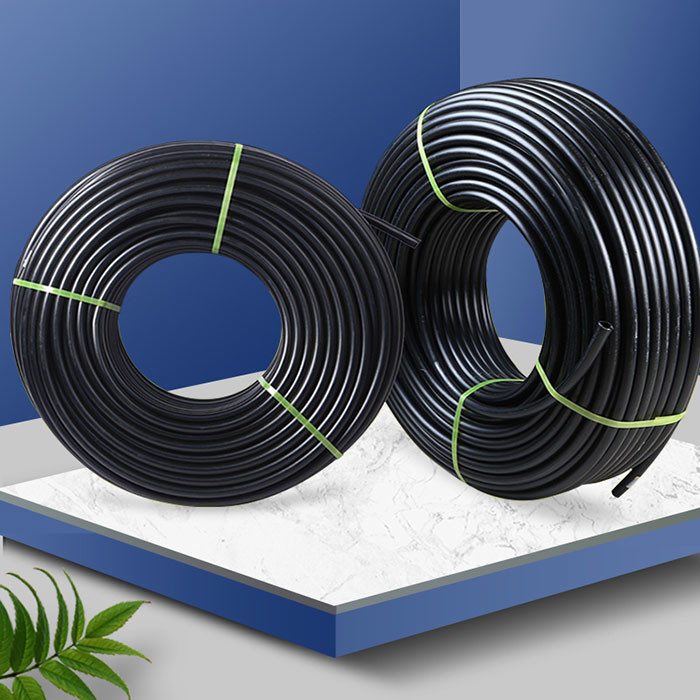

PE Pipe Tap Water Pipe 4 Inch Water Supply Pipe 20/50/32/100 Agricultural Irrigation HDPE Pipe
----------------------------------------
Basic Info.
The plastic pipe industry is preliminarily formed with polyvinyl chloride (PVC-U) pipes, polyethylene (PE) pipes and polypropylene (PP-R) pipes. Among them, polyethylene (PE) pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, electrical and telecommunications protection sleeves, industrial pipes, agricultural pipes, etc. due to their unique advantages. It is mainly used in urban water supply, urban gas supply and farmland irrigation.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Good hygiene, self-cleaning and anti-bacterial, long-term use without scaling, which solves the secondary pollution of drinking water.
2. Resistant to a variety of chemical media, no electrochemical corrosion.
3. The inner wall is smooth, the friction coefficient is low, the medium flow capacity is correspondingly improved, and it has excellent wear resistance.
4. Flexibility, high impact resistance, strong shock and distortion resistance.
5. Light weight, convenient transportation and installation.
6. The connection process is simple, the construction is convenient, and the overall project cost is low.
7. The service life is 50 years
Details
Application
1. Urban engineering water supply system
2. Construction of water supply system in the building
3. Underground water supply system and residential areas
4. Built-in water supply system in the factory
5. Repair the old pipeline
6. Water treatment engineering piping system
7. Industrial water pipes in gardens, irrigation and other fields
Certificate
Company Profile
High Mountain Pipe is committed to producing and selling plastic pipes, fittings, valves and related plumbing accessories. by providing professional solutions for water supply systems The production and distribution of our main products, PE Plumbing Pipes and HDPE Drainage Pipes are industry leaders.
The company covers an area of about 200,000 square meters, has 6 factories, 30 production lines, 300 employees, and a production capacity of 200,000 tons per year. A comprehensive company that brings together science, industry and trade, related industries including research, production, development, production. and polymer materials of plastic pipes All products meet the requirements of national or enterprise audit standards.
FAQ
Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
