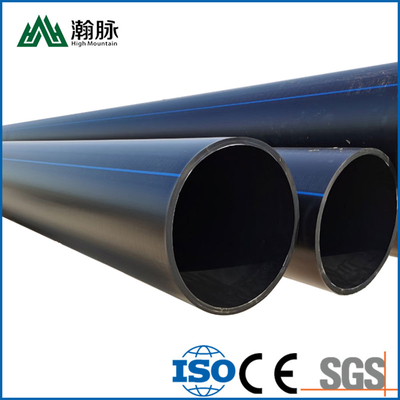

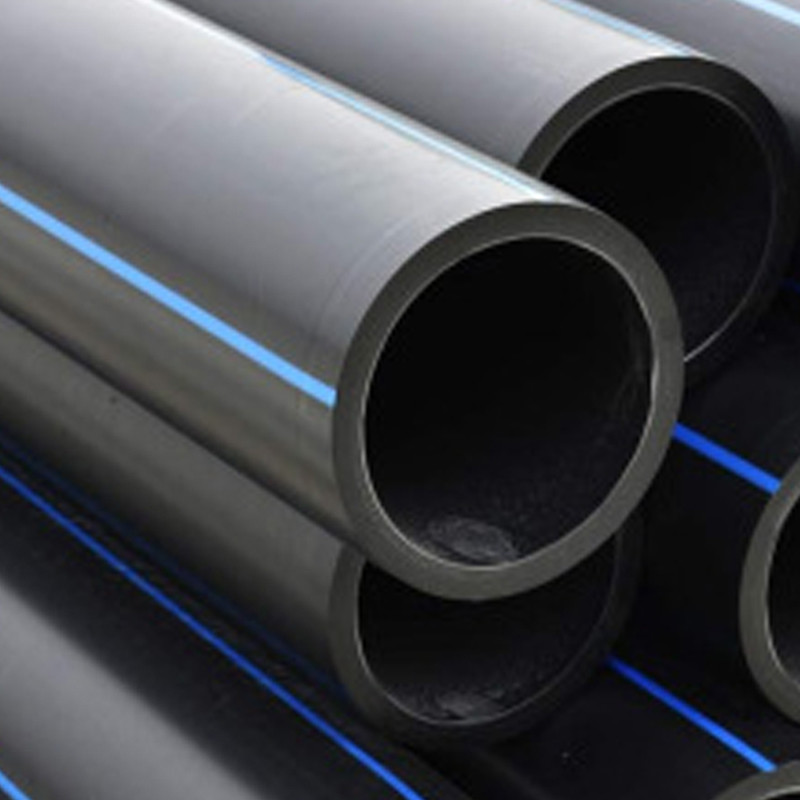

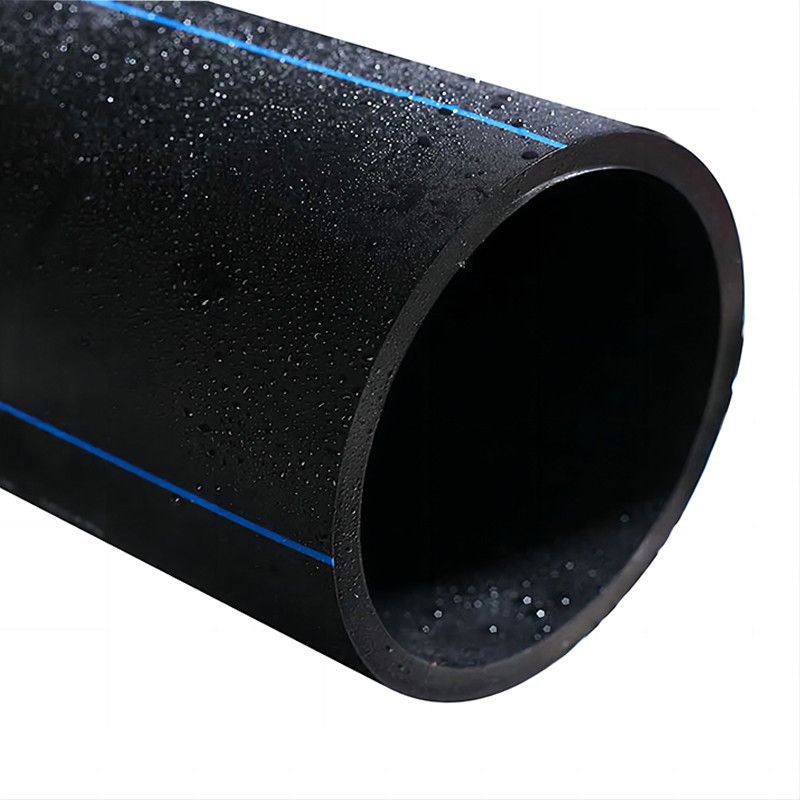

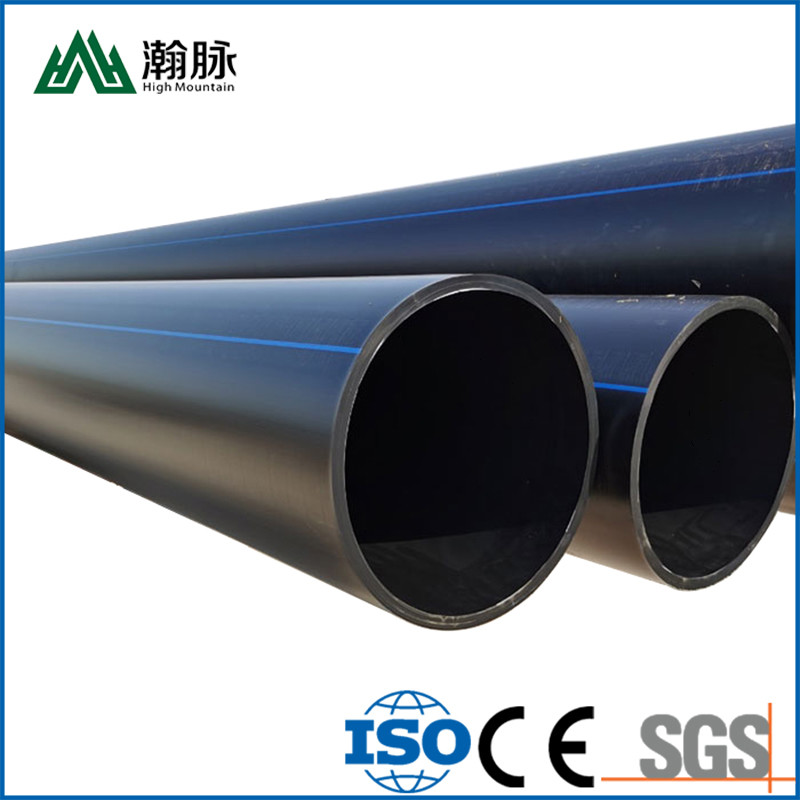

HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM05011
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PE
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

1 Inch Hard Vinyl Chloride Pipe

,

Customized Hard Vinyl Chloride Pipe

,

Customized Hard Polyethylene Tubing

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001,14001,45001
Model Number: HM05011
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

90mm 110mm Hdpe Storm Sewer Multipurpose For Groundwater Supply Systems

----------------------------------------

Basic Info.

What are the structural components of HDPE pipes?
The excellent performance of HDPE pipes is inseparable from its unique structural components. HDPE is a high-density variant of polyethylene with higher molecular density and stronger intermolecular forces. This gives HDPE excellent mechanical properties, chemical resistance and high temperature resistance. The manufacture of HDPE pipes typically involves the extrusion of polyethylene resin, ensuring the pipes have uniform thickness and good durability. The construction components of HDPE pipe provide a solid foundation for its superior performance in a variety of environmental and engineering conditions.



Size PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(mm) thickness thickness thickness thickness thickness thickness
20 2.3 2.3
25 3.0 2.3 2.3
32 3.6 3.0 2.4
40 4.5 3.7 3.0 2.4
50 5.6 4.6 3.7 3.0
63 7.1 5.8 4.7 3.8
75 8.4 6.8 5.6 4.5
90 10.1 8.2 6.7 5.4 4.3
110 12.3 10.0 8.1 6.6 5.3 4.2
125 14.0 11.4 9.2 7.4 6.0 4.8
140 15.7 12.7 10.3 8.3 6.7 5.4
160 17.9 14.6 11.8 9.5 7.7 6.2
180 20.1 16.4 13.3 10.7 8.6 6.9
200 22.4 18.2 14.7 11.9 9.6 7.7
225 25.2 20.5 16.6 13.4 10.8 8.6
250 27.9 22.7 18.4 14.8 11.9 9.6
280 31.3 25.4 20.6 16.6 13.4 10.7
315 35.2 28.6 23.2 18.7 15.0 12.1
355 39.7 32.2 26.1 21.1 16.9 13.6
400 44.7 36.3 29.4 23.7 19.1 15.3
450 50.3 40.9 33.1 26.7 21.5 17.2
500 55.8 45.4 36.8 29.7 23.9 19.1
560 62.5 50.8 41.2 33.2 26.7 21.4
630 70.3 57.2 46.3 37.4 30.0 24.1
710 79.3 64.5 52.2 42.1 33.9 27.2
800 89.3 72.6 58.8 47.4 38.1 30.6
900   81.8 66.2 53.3 42.9 34.4
1000   90.2 72.5 59.3 47.7 38.2
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2

Advantage

1. Durability: HDPE drainage pipes are incredibly durable and long-lasting. They can withstand extreme weather conditions, heavy loads, and high traffic areas. HDPE pipes have a lifespan of up to 100 years, making them a cost-effective choice for drainage systems.
2. Chemical Resistance: HDPE is resistant to a wide range of chemicals, making it an ideal choice for drainage systems that handle chemical waste. The material can withstand exposure to acids, alkalis, and other corrosive substances without degrading.
3. Corrosion Resistance: Unlike metal pipes, HDPE pipes are not susceptible to corrosion. They are immune to rust and other forms of corrosion that can cause leaks and other problems in drainage systems.
4. Lightweight: HDPE pipes are lightweight, making them easy to transport and install. They require fewer workers and less heavy equipment, reducing installation costs.



Details

HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 0HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 1HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 2HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 3



Application

HDPE pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.



Certificate



HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 4

HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 5

HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 6

Company Profile



High Mountain Pipe is a production enterprise focusing on core technology of pipelines.

The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.



HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 7 HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 8



HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 9 HDPE Water Supply Pipe 20-1600mm Polyethylene Pipe Customized 10



FAQ



Q: What are raw materials?
A: PE



Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.



Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
