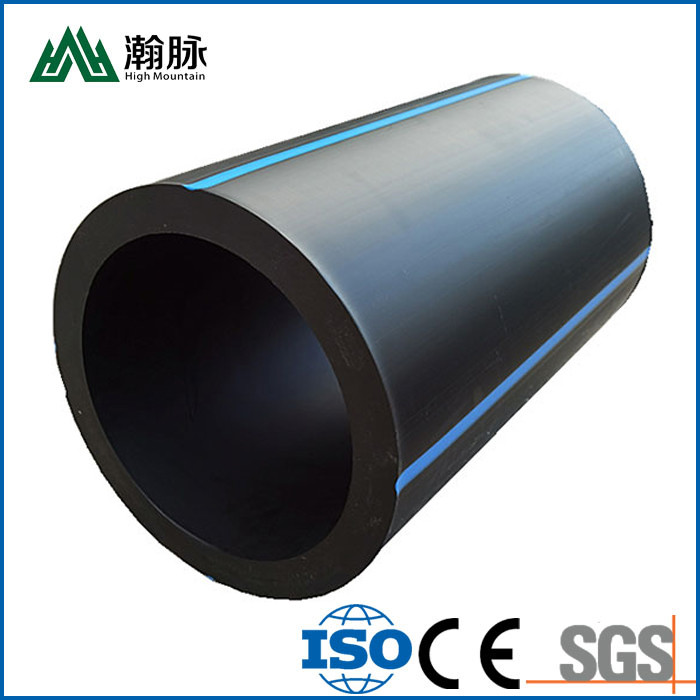

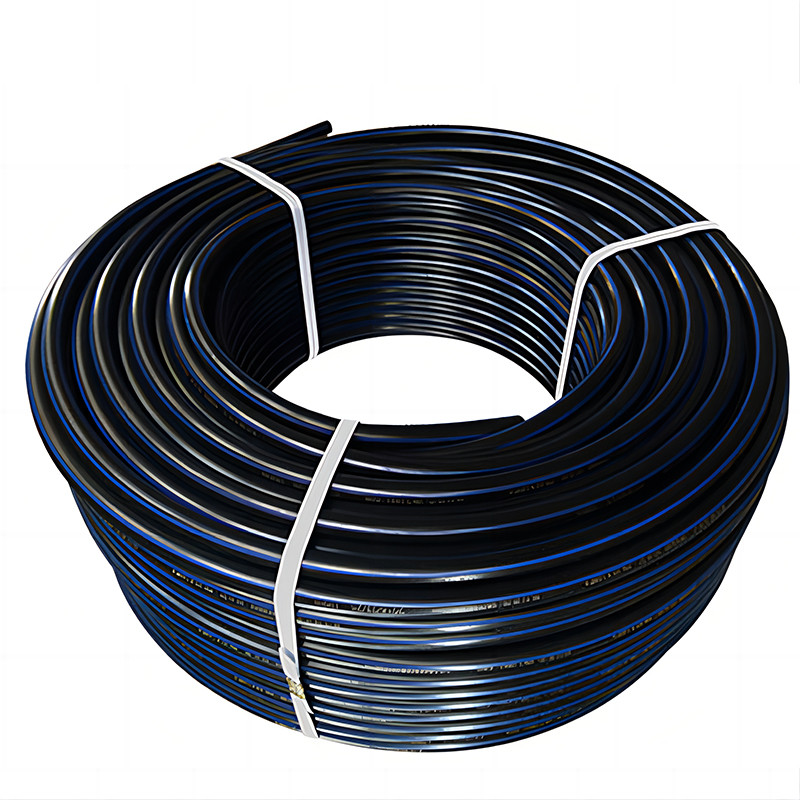

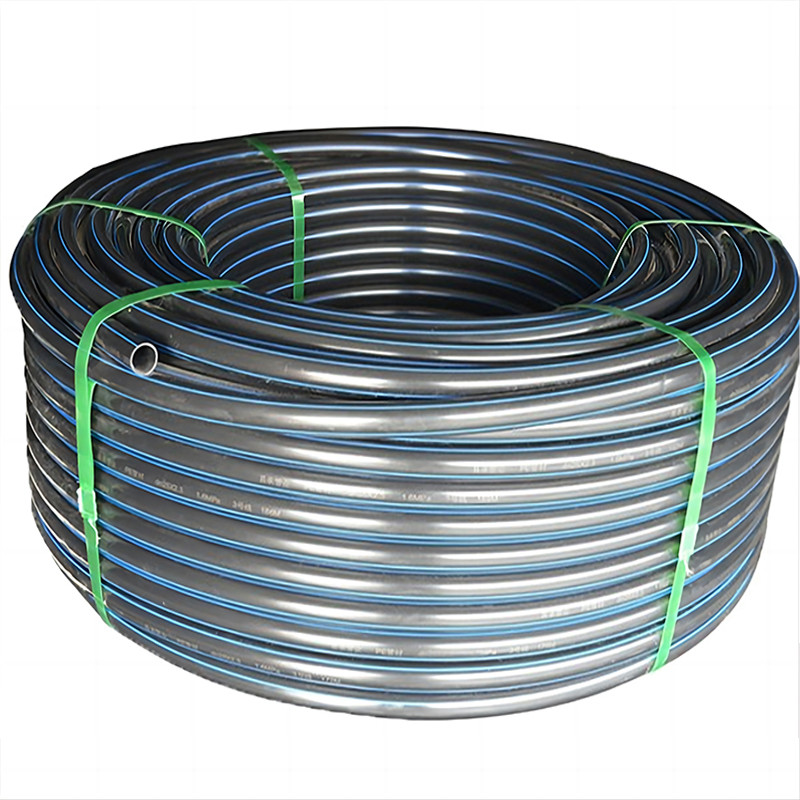

Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM05014
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PE
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

DN20 Hard Plastic Drain Pipe

,

Hollow Hard Plastic Drain Pipe

,

DN50 Black PVC Water Pipe

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001,14001,45001
Model Number: HM05014
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

Plastic HDPE Drainage Pipe 32 40 50 63mm Black HDPE Water Pipe

----------------------------------------

Basic Info.

Is HDPE Pipe Safe for Drinking Water?
One of the primary concerns when it comes to water distribution systems is the safety of the material used. HDPE pipes are considered safe for transporting drinking water, and they comply with stringent regulatory standards. The material is inert, meaning it does not react with the transported water, ensuring that there are no contaminants leaching into the water supply.
The safety of HDPE pipes is further emphasized by their resistance to biological growth, making them an excellent choice for maintaining water quality. The smooth inner surface of HDPE pipes prevents the accumulation of deposits and the growth of bacteria, ensuring a clean and safe water supply for consumers.





Size PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(mm) thickness thickness thickness thickness thickness thickness
20 2.3 2.3
25 3.0 2.3 2.3
32 3.6 3.0 2.4
40 4.5 3.7 3.0 2.4
50 5.6 4.6 3.7 3.0
63 7.1 5.8 4.7 3.8
75 8.4 6.8 5.6 4.5
90 10.1 8.2 6.7 5.4 4.3
110 12.3 10.0 8.1 6.6 5.3 4.2
125 14.0 11.4 9.2 7.4 6.0 4.8
140 15.7 12.7 10.3 8.3 6.7 5.4
160 17.9 14.6 11.8 9.5 7.7 6.2
180 20.1 16.4 13.3 10.7 8.6 6.9
200 22.4 18.2 14.7 11.9 9.6 7.7
225 25.2 20.5 16.6 13.4 10.8 8.6
250 27.9 22.7 18.4 14.8 11.9 9.6
280 31.3 25.4 20.6 16.6 13.4 10.7
315 35.2 28.6 23.2 18.7 15.0 12.1
355 39.7 32.2 26.1 21.1 16.9 13.6
400 44.7 36.3 29.4 23.7 19.1 15.3
450 50.3 40.9 33.1 26.7 21.5 17.2
500 55.8 45.4 36.8 29.7 23.9 19.1
560 62.5 50.8 41.2 33.2 26.7 21.4
630 70.3 57.2 46.3 37.4 30.0 24.1
710 79.3 64.5 52.2 42.1 33.9 27.2
800 89.3 72.6 58.8 47.4 38.1 30.6
900   81.8 66.2 53.3 42.9 34.4
1000   90.2 72.5 59.3 47.7 38.2
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2

Advantage

Good hygienic performance: no heavy metal salt stabilizer is added during the processing of PE pipe, the material is non-toxic, no scaling layer, no bacteria breeding,
A good solution to the secondary pollution of urban drinking water.
Excellent corrosion resistance: Except for a few strong oxidants, it can resist the erosion of various chemical media; no electrochemical corrosion.
Long service life: PE pipes can be safely used for more than 50 years under rated temperature and pressure conditions.
Good impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly press through the pipeline, which will not cause the pipeline to break violently.



Details

Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 0Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 1Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 2Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 3



Application

What Is HDPE Pipe Used For?
HDPE pipes find widespread application in various sectors due to their versatility, durability, and corrosion resistance. Some key applications include:
Water Distribution: HDPE pipes are extensively used for water supply and distribution networks, ranging from municipal water systems to residential plumbing. Their resistance to corrosion and smooth inner surface contribute to efficient water flow and minimal maintenance requirements.
Sewer Systems: HDPE pipes play a crucial role in sewage and wastewater systems. Their resistance to chemical corrosion and abrasion makes them suitable for transporting various types of effluent without degradation.
Industrial Applications: In industrial settings, HDPE pipes are employed for transporting a wide range of fluids, including chemicals and abrasive materials. Their durability and resistance to chemical corrosion make them suitable for diverse industrial processes.
Mining: HDPE pipes are used in mining applications for transporting slurries, chemicals, and water. Their robustness and resistance to abrasion make them well-suited for the challenging conditions encountered in mining operations.
Agricultural Irrigation: HDPE pipes are widely used in agricultural irrigation systems for the efficient and reliable distribution of water to crops. Their flexibility and resistance to UV degradation make them ideal for various agricultural applications.



Certificate



Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 4

Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 5

Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 6

Company Profile



High Mountain Pipe is a production enterprise focusing on core technology of pipelines.

The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.



Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 7 Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 8



Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 9 Plastic HDPE Drainage Pipe 32mm 40mm 50mm 63mm Black HDPE Water Supply Pipe 10



FAQ



Q: What are raw materials?
A: PE



Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.



Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
