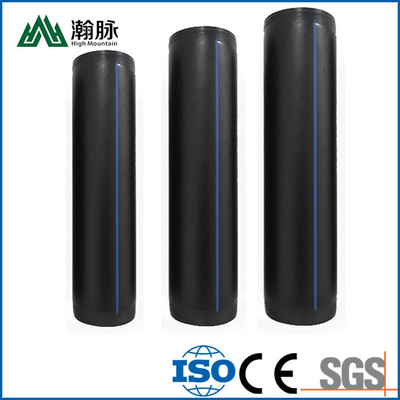

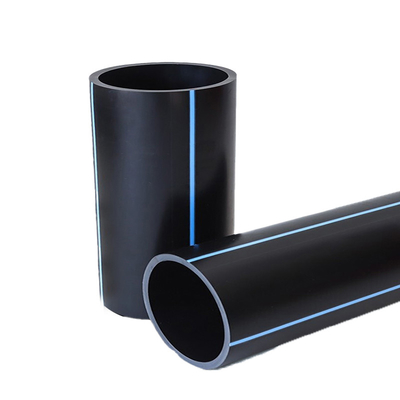

140mm 160mm 180mm 200mm Hot Melt HDPE Water Pipe For Hot And Cold Water
----------------------------------------
Basic Info.
HDPE pipes have become integral components of modern water distribution systems, offering a reliable and sustainable solution for various applications. Their safety for drinking water, versatility in handling hot water, effective joining methods, and diverse range of applications highlight the numerous advantages of HDPE pipes. As the construction and water management industries continue to evolve, HDPE pipes stand out as a resilient and forward-looking choice for ensuring the efficiency and longevity of infrastructure projects.
Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
20 | 2.3 | 2.3 | ||||
25 | 3.0 | 2.3 | 2.3 | |||
32 | 3.6 | 3.0 | 2.4 | |||
40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Good hygienic performance: no heavy metal salt stabilizer is added during the processing of PE pipe, the material is non-toxic, no scaling layer, no bacteria breeding,
A good solution to the secondary pollution of urban drinking water.
Excellent corrosion resistance: Except for a few strong oxidants, it can resist the erosion of various chemical media; no electrochemical corrosion.
Long service life: PE pipes can be safely used for more than 50 years under rated temperature and pressure conditions.
Good impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly press through the pipeline, which will not cause the pipeline to break violently.
Details
Application
What Is HDPE Pipe Used For?
HDPE pipes find widespread application in various sectors due to their versatility, durability, and corrosion resistance. Some key applications include:
Water Distribution: HDPE pipes are extensively used for water supply and distribution networks, ranging from municipal water systems to residential plumbing. Their resistance to corrosion and smooth inner surface contribute to efficient water flow and minimal maintenance requirements.
Sewer Systems: HDPE pipes play a crucial role in sewage and wastewater systems. Their resistance to chemical corrosion and abrasion makes them suitable for transporting various types of effluent without degradation.
Industrial Applications: In industrial settings, HDPE pipes are employed for transporting a wide range of fluids, including chemicals and abrasive materials. Their durability and resistance to chemical corrosion make them suitable for diverse industrial processes.
Mining: HDPE pipes are used in mining applications for transporting slurries, chemicals, and water. Their robustness and resistance to abrasion make them well-suited for the challenging conditions encountered in mining operations.
Agricultural Irrigation: HDPE pipes are widely used in agricultural irrigation systems for the efficient and reliable distribution of water to crops. Their flexibility and resistance to UV degradation make them ideal for various agricultural applications.
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
FAQ
Q: What are raw materials?
A: PE
Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
