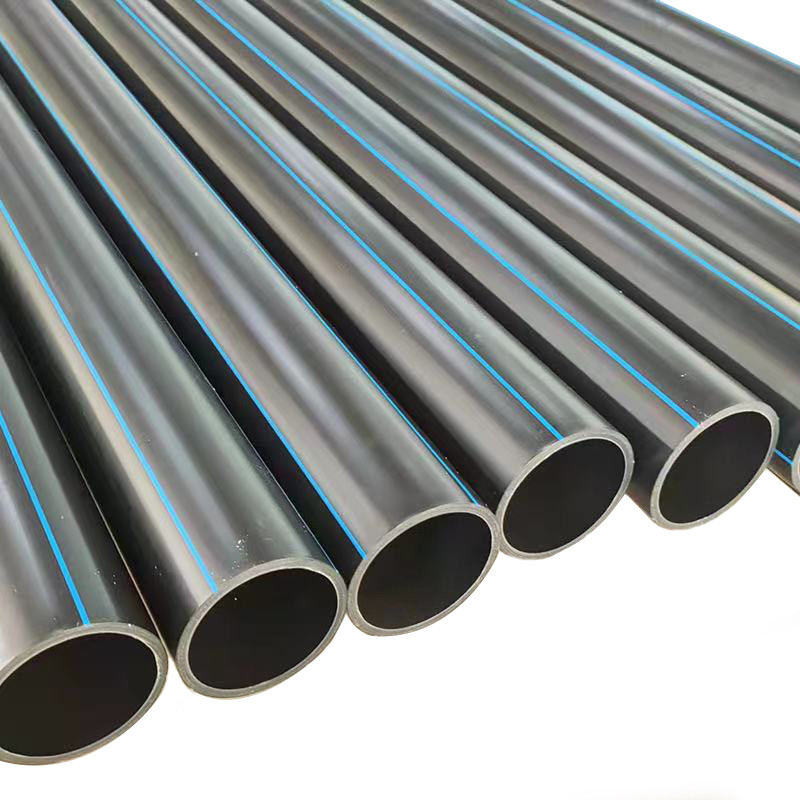

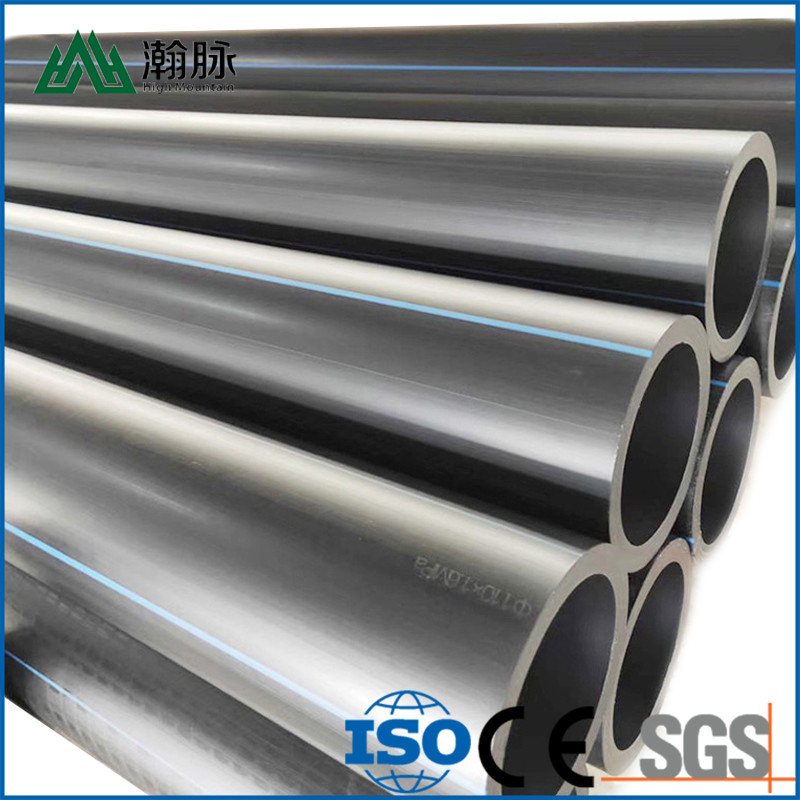

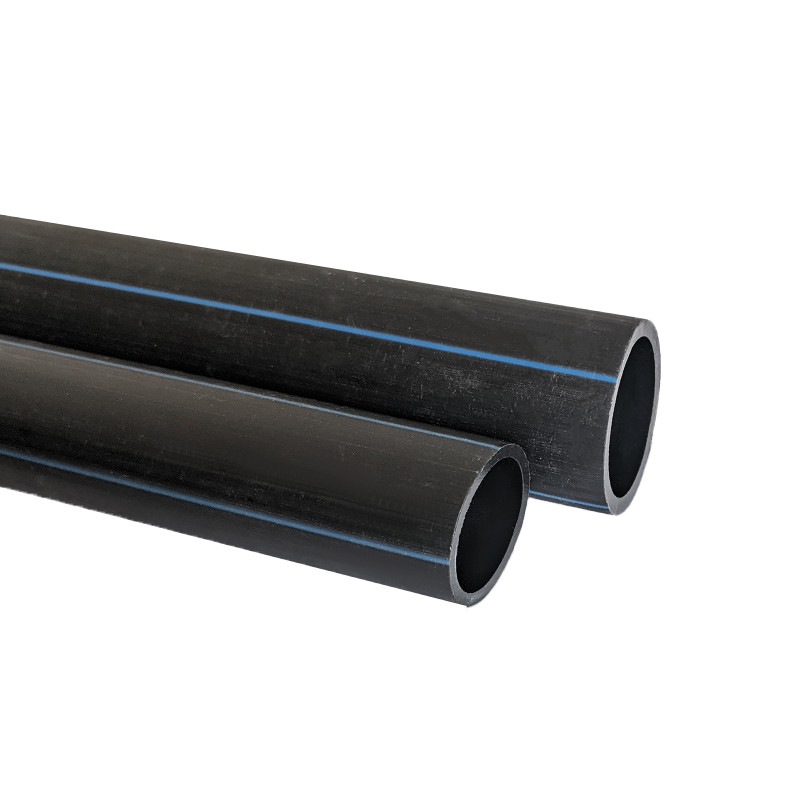

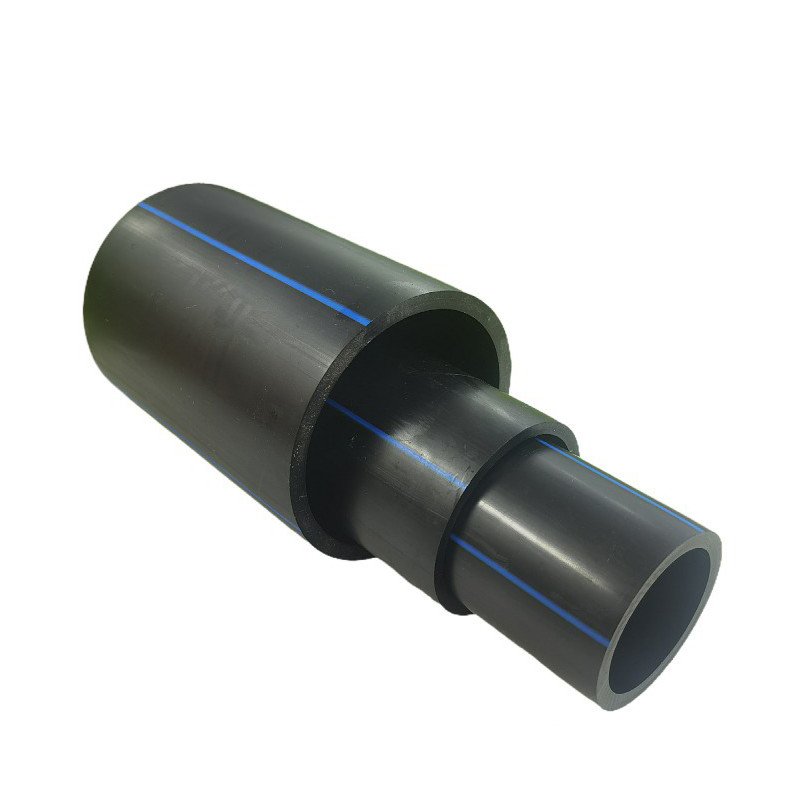

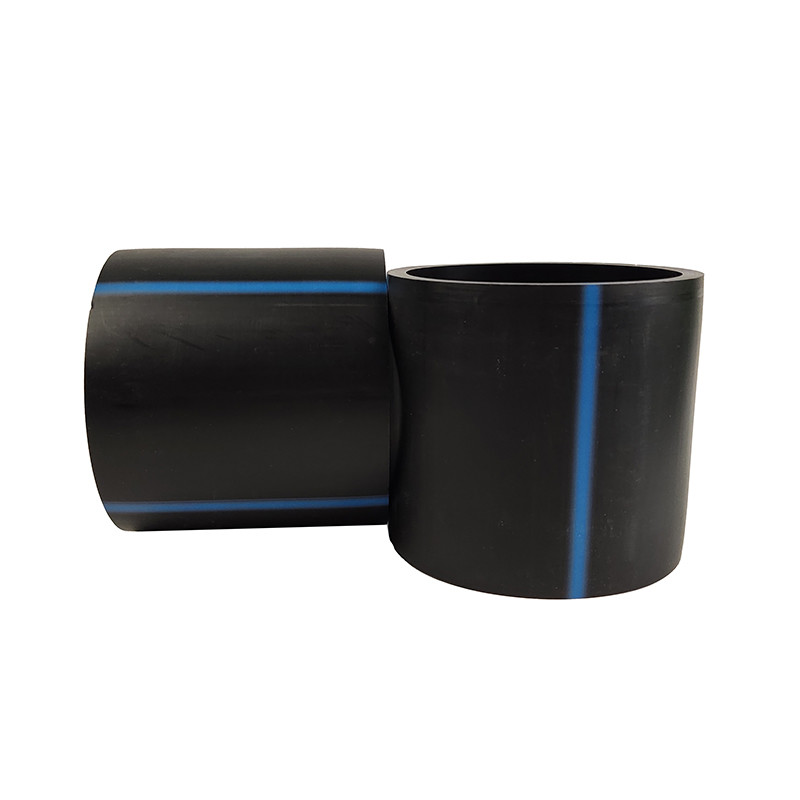

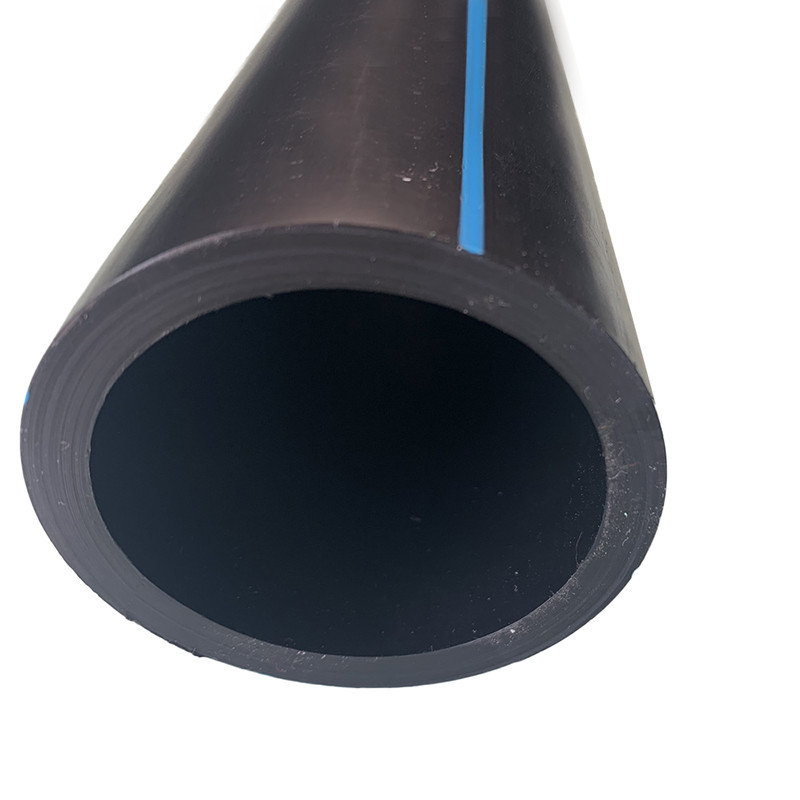

Black Hdpe Water Supply Pipe PE Pipe Irrigation Pipe Rolls Customized
----------------------------------------
Basic Info.
There are many classification methods of HDPE pipes, which can be divided into water supply pipes, gas pipes, aluminum-plastic composite pipes, buried drainage pipes, agricultural irrigation pipes and electrical casings according to the application field; according to the pressure conditions, they can be divided into pressure pipes and non-pressure pipes. , water supply pipes and gas pipes belong to the category of pressure pipes.
Diameter(mm) | Outer diameter(mm) | Wall thickness (mm) |
Weight/m (kg) |
Weight/root(kg) | Root/km | Weight/km(ton) |
80 | 98 | 6 | 12.2 | 76.5 | 167 | 12.77 |
100 | 118 | 6.1 | 15.1 | 95 | 167 | 15.87 |
150 | 170 | 6.3 | 22.8 | 144 | 167 | 20.05 |
200 | 220 | 6.4 | 30.6 | 194 | 167 | 32.4 |
250 | 274 | 6.8 | 40.2 | 255 | 167 | 42.59 |
300 | 326 | 7.2 | 50.8 | 323 | 167 | 53.94 |
350 | 378 | 7.7 | 63.2 | 403 | 167 | 67.3 |
400 | 429 | 8.1 | 75.5 | 482 | 167 | 80.48 |
450 | 480 | 8.6 | 89.3 | 575 | 167 | 95.86 |
500 | 532 | 9 | 104.3 | 669 | 167 | 111.72 |
600 | 635 | 9.9 | 137.3 | 882 | 167 | 147.29 |
700 | 738 | 10.8 | 173.9 | 1123 | 167 | 187.54 |
800 | 842 | 11.7 | 215.2 | 1394 | 167 | 232.8 |
900 | 945 | 12.6 | 260.2 | 1691 | 167 | 282.4 |
1000 | 1048 | 13.5 | 309.3 | 2017 | 167 | 336.84 |
1200 | 1255 | 15.3 | 420.1 | 2758 | 167 | 460.69 |
Advantage
1. High toughness: The elongation at break of PE pipes generally exceeds 500%, and it has a very strong adaptability to ground subsidence. It is a pipe with excellent seismic performance.
2. Flexibility: The pipe can be supplied in coils, and the amount of trench excavation is small, which is especially suitable for trenchless construction technology.
3. Light weight, low construction labor intensity, convenient and fast installation.
Details
Application
Polyethylene PE water supply pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.
Certificate
Company Profile
Our company's products are of high quality, and we always adhere to and implement the quality policy of "Quality is the foundation of a company's survival, and providing users with satisfactory products and services is our eternal pursuit". . Our company is a factory direct sale of ductile iron pipes, ductile iron pipe fittings, ductile iron manhole covers, Xinxing ductile pipes, ductile iron well grate; W type flexible cast iron pipe, W type cast iron drainage pipe and pipe fittings; A type flexible cast iron pipe, A type cast iron drainage Pipes and fittings, B-type flexible cast iron pipes, B-type cast iron drainage pipes and pipe fittings and other products. Our company is a group company integrating production and sales. The annual production capacity of ductile iron pipes and flexible drainage pipes is 300,000 tons; the annual sales volume of ductile iron pipes is 120,000 tons and the annual sales volume of flexible drainage pipes is 180,000 tons.
FAQ
Q: What is the delivery time?
A: We always have common products in stock and can be shipped within 30 days.
Large orders require 15 days to complete production.
Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
Q: What is the purpose of this pipeline?
A: It is mainly used to transport liquids, and is used on a large scale in urban water supply projects, farmland irrigation, etc.
