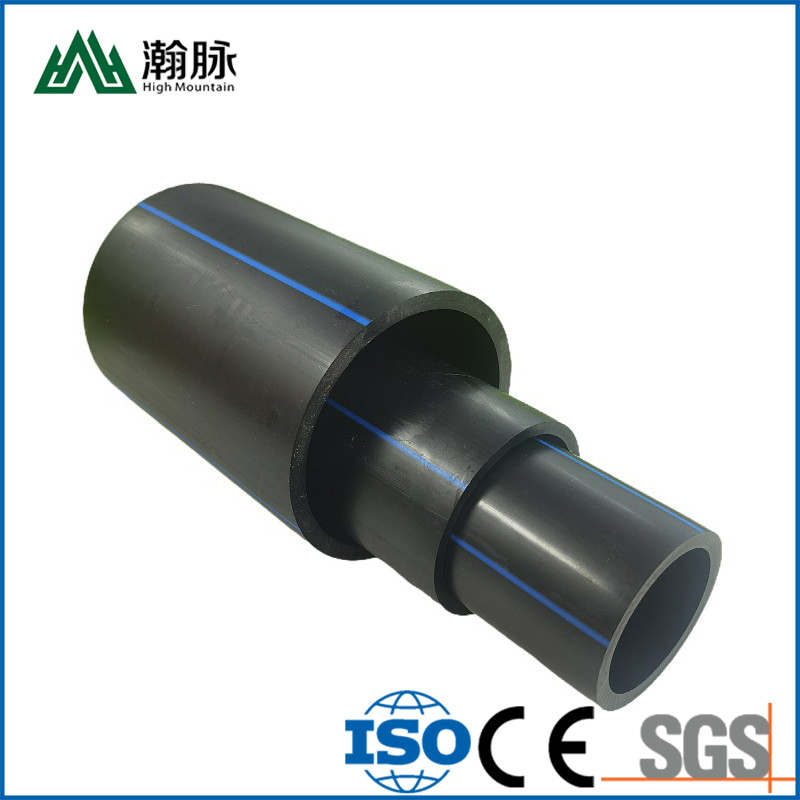

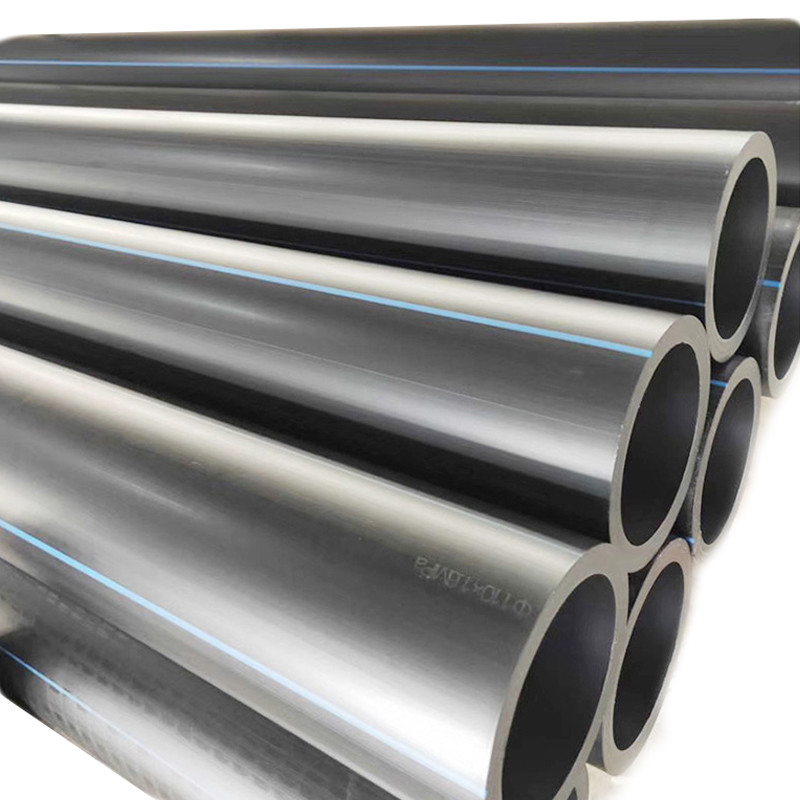

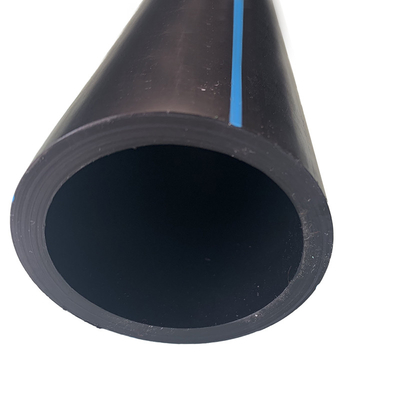

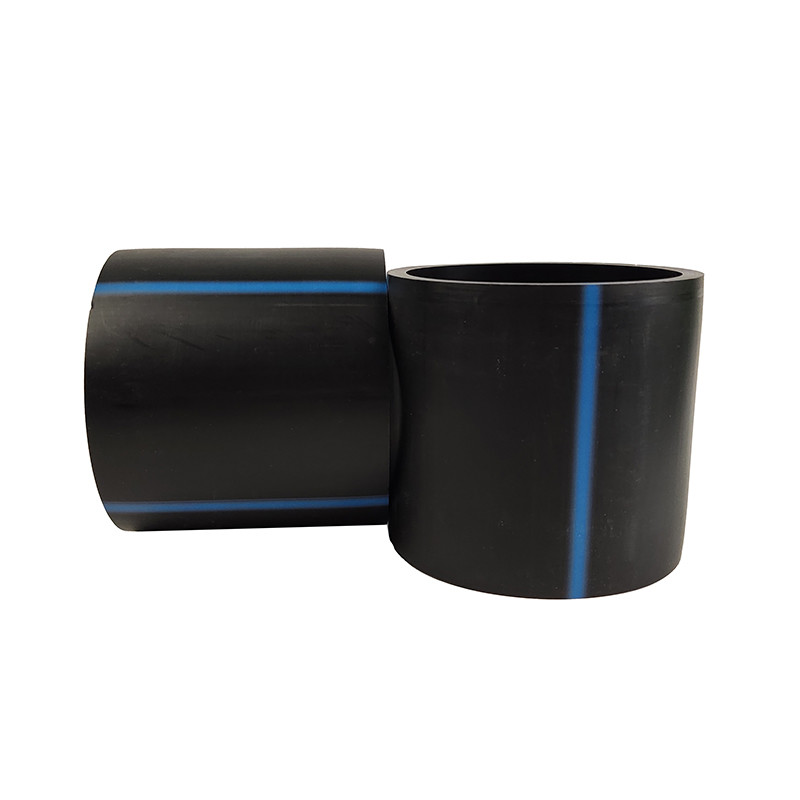

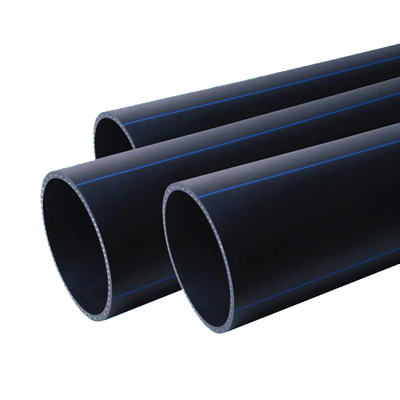

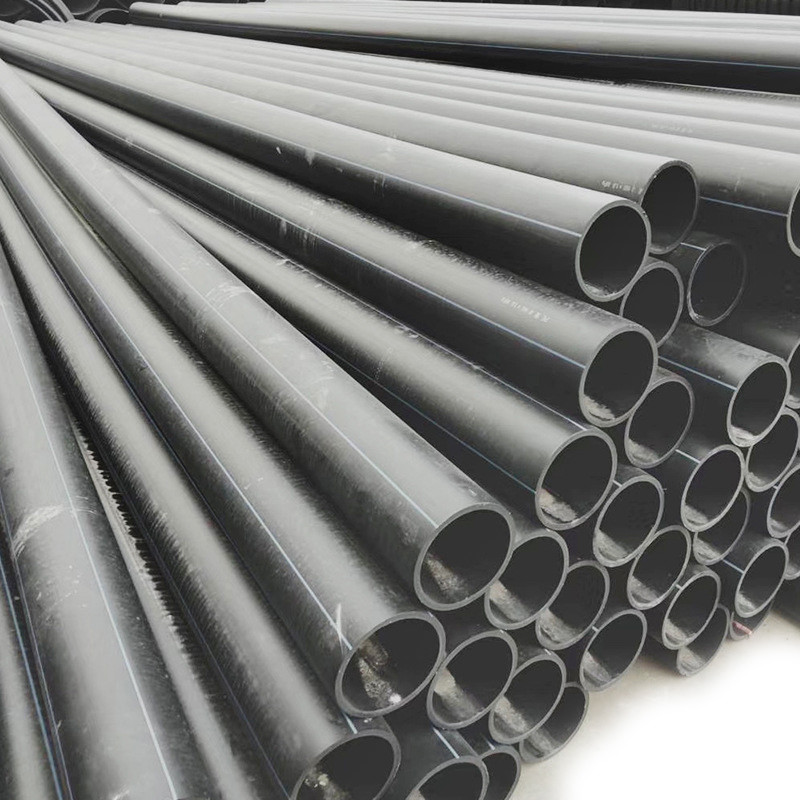

Customizable PE Pipe Irrigation Garden Pipe Collapsible HDPE Water Supply Pipe
----------------------------------------
Basic Info.
HDPE pipe is a highly crystalline, non-polar thermoplastic resin. Generally, the application range of PE pipes for water supply pipelines is below 40°C, and cannot be used for hot water delivery pipelines. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE pipe material has excellent resistance to most household and industrial chemicals. Certain types of chemicals are chemically aggressive, such as corrosive oxidants (concentrated nitric acid), aromatic hydrocarbons (xylene), and halogenated hydrocarbons (carbon tetrachloride).
The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.
Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
It has the essence of iron and the performance of steel. The annealed ductile iron pipe has a metallographic structure of ferrite plus a small amount of pearlite, good mechanical properties, excellent corrosion resistance, good ductility, good sealing effect, easy installation, and mainly used for water supply and gas transmission in municipalities, industrial and mining enterprises , Oil and so on.
A certain amount of spheroidal graphite is distributed on the ferrite and pearlite matrix. According to the nominal diameter and the requirements for elongation, the ratio of ferrite and pearlite in the matrix structure is different. The ratio of pearlite with small diameter Generally, it is not more than 20%, and the large-caliber is generally controlled at about 25%.
Details
Application
It is suitable for the domestic drainage pipes of socket type and clamp type connection of gray cast iron pipes and supporting pipe fittings with internal and external pipe diameters of DN50mm~DN300mm and internal pressure not greater than 0.3MPa in new construction, expansion and reconstruction of civil and industrial buildings. , Rainwater pipes, non-corrosive industrial production wastewater pipes and rain down pipes.
Certificate
Company Profile
Our company's products are of high quality, and we always adhere to and implement the quality policy of "Quality is the foundation of a company's survival, and providing users with satisfactory products and services is our eternal pursuit". . Our company is a factory direct sale of ductile iron pipes, ductile iron pipe fittings, ductile iron manhole covers, Xinxing ductile pipes, ductile iron well grate; W type flexible cast iron pipe, W type cast iron drainage pipe and pipe fittings; A type flexible cast iron pipe, A type cast iron drainage Pipes and fittings, B-type flexible cast iron pipes, B-type cast iron drainage pipes and pipe fittings and other products. Our company is a group company integrating production and sales. The annual production capacity of ductile iron pipes and flexible drainage pipes is 300,000 tons; the annual sales volume of ductile iron pipes is 120,000 tons and the annual sales volume of flexible drainage pipes is 180,000 tons.
FAQ
Q: Which payment method can your company use?
A: T/T, L/C or full trade insurance. You can choose the one that is convenient for you.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: Which payment method can your company use?
A: T/T, L/C or full trade insurance. You can choose the one that is convenient for you.
