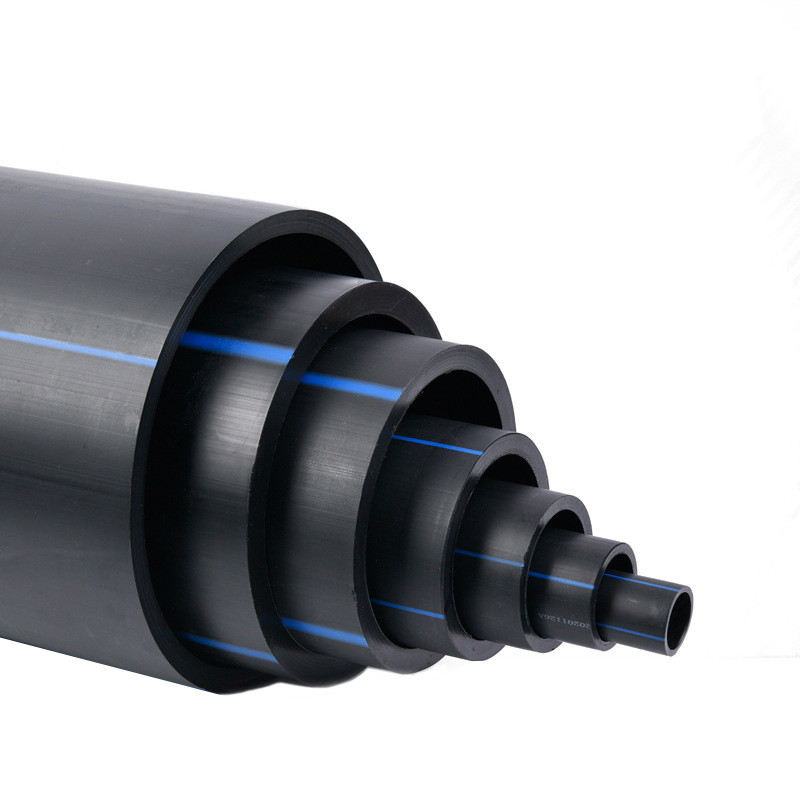

Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM1-75
Specification: DN80-2600mm
Color: Black,grey,or At Request
Usage: Water Supply
Raw Material: Carbon, Silicon, Manganese, Sulfur, Phosphorus, Magnesium,
Size: Customized Size
Standard: GB/T13295-2013 ISO2531/2003
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

90 Degree Ductile Cast Iron Fittings

,

DN80 Ductile Cast Iron Fittings

,

Double Disc Cast Iron Flanged Elbow

Basic Infomation
Place of Origin: China
Certification: ISO9001,14001,45001
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll

----------------------------------------



Basic Info.



There are many classification methods of HDPE pipes, which can be divided into water supply pipes, gas pipes, aluminum-plastic composite pipes, buried drainage pipes, agricultural irrigation pipes and electrical casings according to the application field; according to the pressure conditions, they can be divided into pressure pipes and non-pressure pipes. , water supply pipes and gas pipes belong to the category of pressure pipes.
In recent years, with the application of HDPE pipe more and more widely. Density alone cannot accurately reflect the essential performance of PE as a pipe. At present, the unified classification method is to classify the pipe and its raw materials according to the long-term hydrostatic strength of the PE pipe, which is divided into PE 32, PE 40, and PE 63. PE80, PE100. Among them, the PE 80 and PE 100 grade pipes can be used to transport gas, while the pipes below the PE 63 grade are mainly used for hot water pipes and sewage and irrigation pipes.



Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
Packing
Loaded into 40GP/Piece
6m or 12m per Piece
  Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5     1085
90 10.1 8.2 6.7 5.4 4.3   754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710   64.5 52.2 42.1 33.9 27.2 9
800   72.7 58.8 47.4 38.1 30.6 6
900   81.8 66.2 53.3 42.9 34.4 6
1000   90.2 72.5 59.3 47.7 38.2 4
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2





Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 0



Advantage



1. A variety of non-excavation methods can be used, and the construction and installation are extremely convenient.
2. The system cost is low, and the maintenance cost is low, which can greatly reduce the project cost.

3. No leakage: PE pipe adopts electrofusion connection, and its interface strength is higher than the pipe itself.
4. High toughness: The elongation at break of PE pipe is generally above 500%.For the uneven settlement of the base layer, its adaptability is very strong and the seismic performance is good.
5. Excellent resistance to rapid crack propagation (RCP).
6. Excellent flexibility and scratch resistance.
7. Good wear resistance, low wall friction coefficient, low flow resistance, and excellent conveying capacity.



Details



     Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 1Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 2Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 3Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 4









Application



1. Polyurethane coating
It is a new type of green special coating developed to meet the needs of environmental protection, with good wear resistance and corrosion resistance.

2. Epoxy coal pitch coating
Epoxy coal tar coating is not only suitable for gas pipelines, but also for sewage pipelines. It is a two-component coating that has high adhesion and a very smooth surface
3. Epoxy ceramic lining
Epoxy ceramic lining is suitable for sewage pipelines and gas pipelines, but due to the difficult manufacturing process and high cost, it has certain limitations in use. Epoxy ceramic lining has high adhesion and smoothness, and is a good anti-corrosion coating.
4. Aluminate cement coating or sulfate cement coating
Both of these special cement coatings are suitable for the internal anti-corrosion of ductile iron pipes used in sewage pipelines to improve the corrosion resistance of the acid and alkali components in the sewage.





Certificate



Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 5

Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 6

Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 7

Company Profile



Our company's products are of high quality, and we always adhere to and implement the quality policy of "Quality is the foundation of a company's survival, and providing users with satisfactory products and services is our eternal pursuit". . Our company is a factory direct sale of ductile iron pipes, ductile iron pipe fittings, ductile iron manhole covers, Xinxing ductile pipes, ductile iron well grate; W type flexible cast iron pipe, W type cast iron drainage pipe and pipe fittings; A type flexible cast iron pipe, A type cast iron drainage Pipes and fittings, B-type flexible cast iron pipes, B-type cast iron drainage pipes and pipe fittings and other products. Our company is a group company integrating production and sales. The annual production capacity of ductile iron pipes and flexible drainage pipes is 300,000 tons; the annual sales volume of ductile iron pipes is 120,000 tons and the annual sales volume of flexible drainage pipes is 180,000 tons.



Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 8     Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 9



Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 10     Customization Small Diameter HDPE Water Supply Irrigation Plastic Water Pipe Roll 11



FAQ



Q: What is the delivery time?
A: We always have common products in stock and can be shipped within 30 days.
Large orders require 15 days to complete production.



Q: How to buy products?
A: Send an email to us and we will get back to you within one day.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
