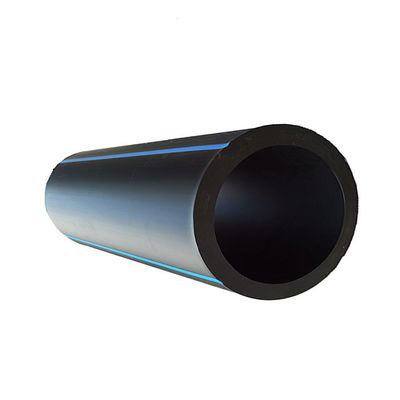

3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM01022
High Light:

Polyethylene High Density Water Tubing

,

Anti Corrosion Water Supply HDPE Pipe

,

Anti Freeze Water Supply HDPE Pipe

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM01022
Specification: DN20mm-630mm
Color: Black Or Customer Request
Usage: Water Supply
Raw Material: PE100
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
Product Description

New Material 3 4 Inch HDPE Pipe for Water Supply High-Density Water Pipe Anti-Freeze And Anti-Corrosion Polyethylene
----------------------------------------

Basic Info.



HDPE water supply pipe high-density polyethylene is non-toxic, tasteless, odorless white particles, the melting point is about 130 ℃, and the relative density is 0.941~0.960.





Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
Packing
Loaded into 40GP/Piece
6m or 12m per Piece
  Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5     1085
90 10.1 8.2 6.7 5.4 4.3   754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710   64.5 52.2 42.1 33.9 27.2 9
800   72.7 58.8 47.4 38.1 30.6 6
900   81.8 66.2 53.3 42.9 34.4 6
1000   90.2 72.5 59.3 47.7 38.2 4
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2




3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 0

Advantage

It has good heat resistance and cold resistance, good chemical stability, high rigidity and toughness, and good mechanical strength. Dielectric properties and environmental stress cracking resistance are also good.

Details


3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 1     3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 2



3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 3      3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 4





Application

PE pipes are used in a wide range of fields, among which water supply/drainage pipes, power/communication pipes, gas pipes, and sewage pipes are the main uses. Compared with traditional metal pipes and cement pipes, PE pipes have light weight, corrosion resistance, and water flow resistance. Small size, good energy saving, convenient transportation and installation, long service life and other advantages. The materials used for polymer pipes (plastic pipes) mainly include polyvinyl chloride (PVC), polyethylene (PE) and polypropylene.

Certificate

3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 5
3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 6
3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 7
Company Profile

High Mountain Pipe Management Industry With 19 years of experience in R&D, production and sales of plastic pipe fittings, HDPE pipes are of good quality. In order to meet the actual needs of modern high-quality buildings and the design concept of environmental protection and silence, the company has introduced advanced production equipment and manufacturing technology, and has successively developed grooved ( HDPE) HDPE mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and HDPE siphon drainage system series products. HDPE is a highly crystalline, non-polar thermoplastic resin. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE has excellent resistance to most household and industrial chemicals. hdpe pipe factory adheres to the factory policy of "credibility, quality and management as the fundamental goal", with moderate price, dedicated service, and customer satisfaction as the purpose, abiding by contracts and keeping promises and famous all over the country.

3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 8     3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 9

3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 10     3 4 Inch Water Supply HDPE Pipe High Density Water Tubing Anti Freeze Anti Corrosion 11

FAQ



Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.



Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
