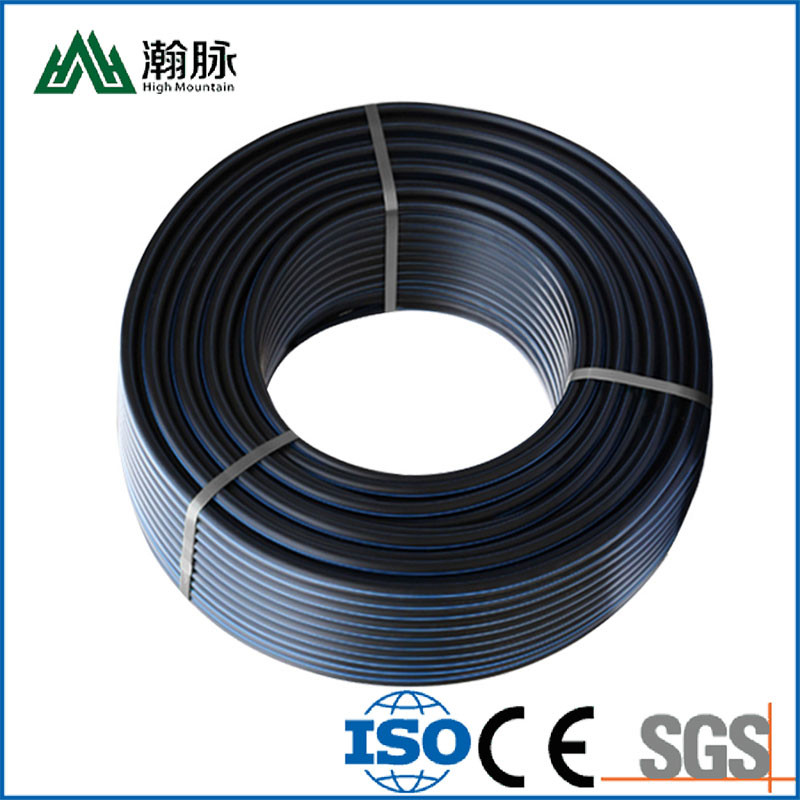

400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM01025
Specification: DN20mm-630mm
Color: Black Or Customer Request
Usage: Water Supply
Raw Material: PE100
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
High Light:

400mm Water Supply Plastic PE Pipes

,

630mm Polyethylene PE Pipes For Water Supply

,

PE100 HDPE Drip Irrigation Pipe

Basic Infomation
Place of Origin: China
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

Plastic PE Pipes 400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe and Fitting Prices Hose HDPE Pipe For Water Supply
----------------------------------------

Basic Info.



Drip irrigation pipe is a more important irrigator in the drip irrigation system. According to the water demand of crops, through the low-pressure pipeline system and the irrigator installed on the capillary, the water and the nutrients needed by the crops are dripped into the water evenly and slowly. in the root zone of crops.

The full name of PE drip irrigation pipe is high pressure low density polyethylene pipe. The raw material is LLDPE. LLDPE can also become LLDPE pipe. The color of LLDPE pipe is divided into white and black. /T1930-2006.

Pipe specifications: 16mm, 20mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm and 110mm.





Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
Packing
Loaded into 40GP/Piece
6m or 12m per Piece
  Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5     1085
90 10.1 8.2 6.7 5.4 4.3   754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710   64.5 52.2 42.1 33.9 27.2 9
800   72.7 58.8 47.4 38.1 30.6 6
900   81.8 66.2 53.3 42.9 34.4 6
1000   90.2 72.5 59.3 47.7 38.2 4
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2




400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 0

Advantage

Performance characteristics of HDPE water supply solid wall pipe:
1. Easy to handle: HDPE pipes are lighter than concrete pipes, galvanized pipes and steel pipes. It is easy to handle and install. Lower manpower and equipment requirements mean that the installation cost of the project is greatly reduced.
2. A variety of new construction methods: HDPE pipes have a variety of construction technologies, which are fully suitable for traditional excavation construction methods and new trenchless technologies such as pipe jacking, directional drilling, lining, cracking, and submersion.
3. Reliable connection: HDPE piping systems are connected by hot melt or electric hot melt, and the strength of the joint is higher than that of the pipe body, as long as the correct temperature, hot melt time, cooling time and hot melt connection method are mastered during construction according to the construction method standard Generally speaking, there is no risk of leakage during operation.
4. Electrothermal fusion: The use of special electric fusion welding machine to connect straight pipes and straight pipes, straight pipes and pipe fittings is generally used for pipes below 160mm.
5. Hot-melt butt connection: It is generally used for pipes above 160mm when using a special butt welding machine to connect pipes.
6. Steel-plastic connection: It can be connected by flange, screw thread and other methods.


Details


400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 1     400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 2



400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 3      400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 4





Application

Application: Municipal tap water supply, water diversion, water treatment engineering; rural healthy drinking water engineering; pipeline system for water supply inside and outside buildings; old pipeline repair, water treatment engineering pipeline system; industrial water pipes in gardening, irrigation and other fields.


Certificate

400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 5
400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 6
400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 7
Company Profile

High Mountain Pipe Management Industry With 19 years of experience in R&D, production and sales of plastic pipe fittings, HDPE pipes are of good quality. In order to meet the actual needs of modern high-quality buildings and the design concept of environmental protection and silence, the company has introduced advanced production equipment and manufacturing technology, and has successively developed grooved ( HDPE) HDPE mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and HDPE siphon drainage system series products. HDPE is a highly crystalline, non-polar thermoplastic resin. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE has excellent resistance to most household and industrial chemicals. hdpe pipe factory adheres to the factory policy of "credibility, quality and management as the fundamental goal", with moderate price, dedicated service, and customer satisfaction as the purpose, abiding by contracts and keeping promises and famous all over the country.

400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 8     400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 9

400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 10     400mm 500mm 630mm PE100 SDR11 PN16 HDPE Pipe For Water Supply 11

FAQ



Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.



Q: How to buy products?
A: Send an email to us and we will get back to you within one day.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
