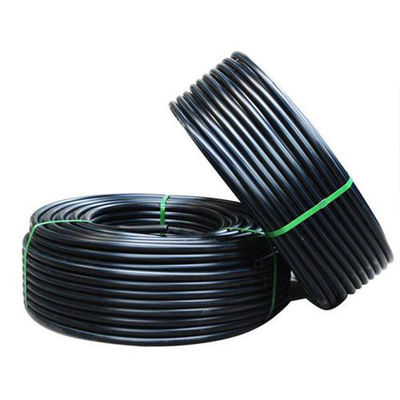

Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM01033
High Light:

Customized Hdpe Water Supply Tube

,

PE100 Hdpe Water Supply Tube

,

DN50mm Hdpe Pipe For Water Supply

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM01033
Specification: DN20mm-630mm
Color: Black Or Customer Request
Usage: Water Supply
Raw Material: PE100
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
Product Description

Customized High Quality Factory Direct Water Supply Pipe Hdpe Tube Polyethylene Plastic Pipe
----------------------------------------

Basic Info.



HDPE water supply pipes are produced with high-density polyethylene PE100 or PE80 resin raw materials, and are widely used in urban water supply projects and rural drinking water projects. Nominal pressure has five pressure levels from 0.6Mpa-1.6Mpa; specifications from dn20-dn1600mm.



Model (inner diameter)
Ф20 Ф25 Ф32 Ф40 Ф50 Ф63 Ф75 Ф90
Ф110 Ф125 Ф140 Ф160 Ф180 Ф200 Ф225 Ф250
Ф280 Ф315 Ф355 Ф400 Ф450 Ф500 Ф560 Ф630
Ф710 Ф800 Ф900 Ф1000 Ф1200











Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 0

Advantage


1. Reliable connection: The HDPE drainage pipe system adopts electrothermal fusion connection, and the strength of the joint is higher than that of the pipe body;

2. Good impact resistance at low temperature: The low temperature embrittlement temperature of polyethylene is extremely low, and it can be used safely in the temperature range of -60-60 °C. During winter construction, due to the good impact resistance of the material, the pipe will not be brittle;

3. Good stress cracking resistance: HDPE drainage pipe has low notch sensitivity, high shear strength and excellent scratch resistance, and its ability to resist environmental stress cracking is also very prominent;

4. Good chemical resistance: HDPE drainage pipes can withstand the corrosion of various chemical media, and the chemicals in the soil will not cause any degradation to the pipes. Polyethylene is an electrical insulator, so it will not rot, rust or galvanically corrode; moreover, it will not promote the growth of algae, bacteria or fungi;

5. Anti-aging and long service life: polyethylene pipes containing 2-2.5% evenly distributed carbon black can be stored or used outdoors for 50 years without being damaged by ultraviolet radiation;

6. Good wear resistance: The comparison test of wear resistance between HDPE drainage pipe and steel pipe shows that the wear resistance of HDPE drainage pipe is 4 times that of steel pipe. In the field of mud conveying, HDPE drainage pipes have better wear resistance than steel pipes, which means HDPE drainage pipes have longer service life and better economy;

7. Good flexibility: The flexibility of HDPE drainage pipe makes it easy to bend. In engineering, obstacles can be bypassed by changing the direction of the pipe. In many cases, the flexibility of the pipeline can reduce the number of fittings and reduce installation costs;

8. Small water flow resistance: The inner surface of the HDPE drainage pipe is smooth, and the Manning coefficient is 0.009. The smooth performance and non-stick characteristics ensure that the HDPE drainage pipe has a higher conveying capacity than traditional pipes, and at the same time reduces the pressure loss of the pipe and the energy consumption of water conveying;

9. Easy to handle: HDPE drainage pipes are lighter than concrete pipes, galvanized pipes and steel pipes. It is easy to handle and install. Lower manpower and equipment requirements mean that the installation cost of the project is greatly reduced;

10. Various new construction methods: There are various construction techniques for HDPE drainage pipes. In addition to traditional excavation methods, a variety of trenchless new technologies such as pipe jacking, directional drilling, liner pipes, cracked pipes, etc. can also be used, which is the only choice for places where excavation is not allowed. Therefore, HDPE drainage pipes are more widely used


Details


Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 1     Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 2



Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 3      Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 4





Application


HDPE pipe has many advantages that traditional water supply pipes do not have, so it is widely used in various construction projects, such as chemical raw material transportation pipelines, green gardens, discharge of industrial wastewater, agricultural irrigation, railway highway engineering projects, mine engineering building etc.


Certificate

Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 5
Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 6
Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 7
Company Profile

High Mountain Pipe Management Industry With 19 years of experience in R&D, production and sales of plastic pipe fittings, HDPE pipes are of good quality. In order to meet the actual needs of modern high-quality buildings and the design concept of environmental protection and silence, the company has introduced advanced production equipment and manufacturing technology, and has successively developed grooved ( HDPE) HDPE mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and HDPE siphon drainage system series products. HDPE is a highly crystalline, non-polar thermoplastic resin. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE has excellent resistance to most household and industrial chemicals. hdpe pipe factory adheres to the factory policy of "credibility, quality and management as the fundamental goal", with moderate price, dedicated service, and customer satisfaction as the purpose, abiding by contracts and keeping promises and famous all over the country.

Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 8     Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 9

Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 10     Water Supply Hdpe Tube Polyethylene Plastic Pipe Customized 11

FAQ



Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.



Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.



Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.
