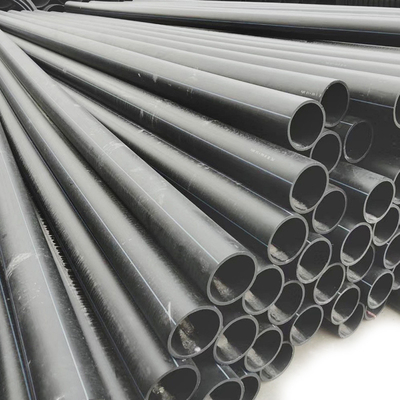

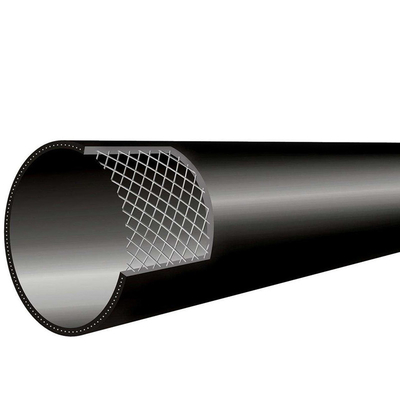

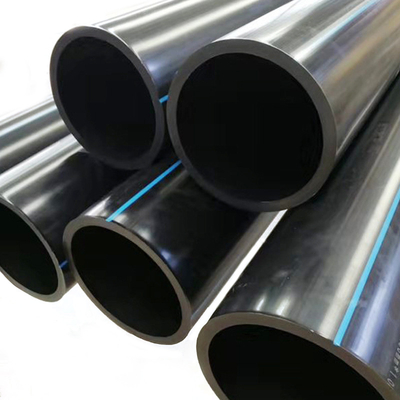

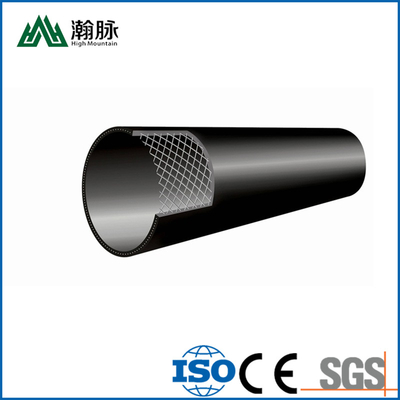

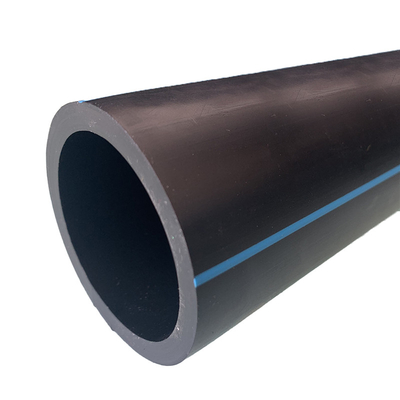

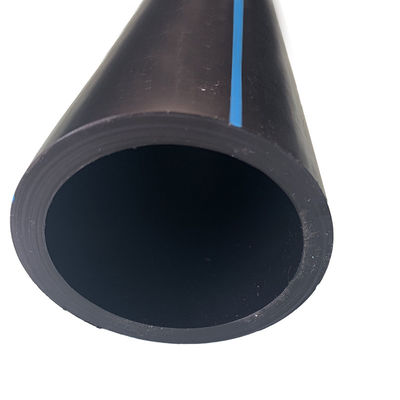

HDPE Wire Mesh Skeleton Pipe 1.0 1.6mpa PE Water Supply Plastic Pipe
----------------------------------------
Basic Info.
The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Excellent corrosion resistance, better hygiene performance and longer service life
2. Unique flexibility and excellent scratch resistance
3. Very outstanding low temperature resistance
4. Good fracture toughness with rapid crack growth
Details
Application
1. Municipal engineering water supply system
2. Building indoor water supply system
3. Outdoor buried water supply system and residential area
4. Buried water supply system in the plant
5. Old pipeline repair
6. Water treatment engineering piping system
7. Industrial water pipes in gardens, irrigation and other fields.
Certificate
Company Profile
Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.
The company analyzes the lifestyle and aesthetic trends of modern people, integrates the concept of excellent pipeline home culture, and relies on the industry-leading integrated system of R&D, design, production, installation, and service to develop a one-stop personalized customized pipeline system solution. Provide optimized, cost-effective health products for thousands of families.
FAQ
Q: Where is your company?
A: We are located in Jiangsu, China.
Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
