PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe

100
MOQ
0.5$(1~10per);0.43$(>1000per)
Price
PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM1-89
Specification: DN20-DN1100mm
Color: White Or At Request
Usage: Water Supply
Raw Material: PPR
Size: Customized Size
Working Pressure: 1.25mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

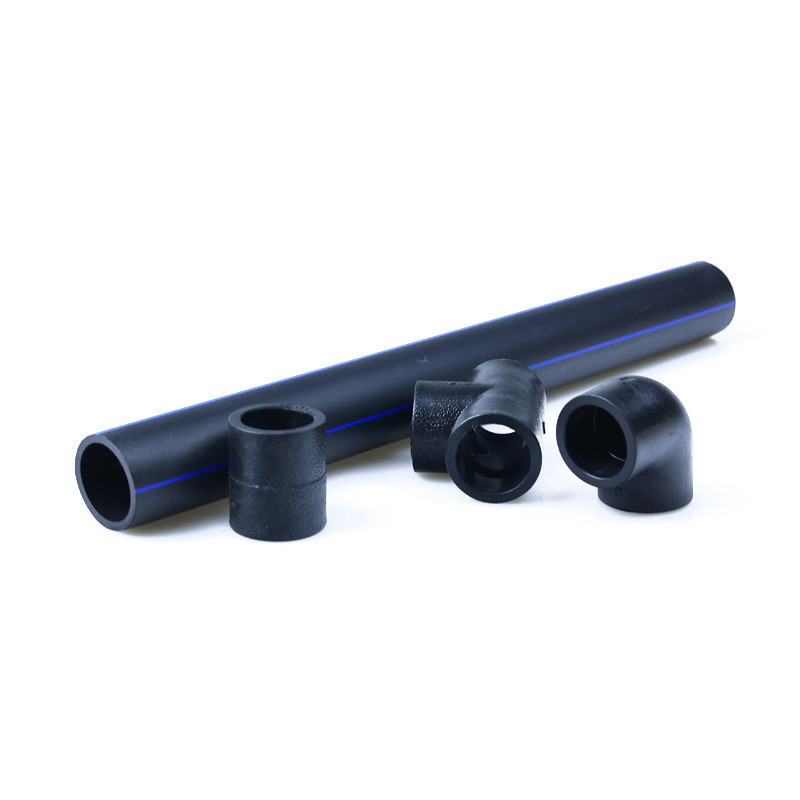

Water Supply Pipe Plug Elbow

,

3 Way PPR Pipe Plug Elbow

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001,14001,45001
Model Number: HM1-89
Payment & Shipping Terms
Packaging Details: 50 or 100 per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe

----------------------------------------



Basic Info.



HDPE pipe is a highly crystalline, non-polar thermoplastic resin. Generally, the application range of PE pipes for water supply pipelines is below 40°C, and cannot be used for hot water delivery pipelines. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE pipe material has excellent resistance to most household and industrial chemicals. Certain types of chemicals are chemically aggressive, such as corrosive oxidants (concentrated nitric acid), aromatic hydrocarbons (xylene), and halogenated hydrocarbons (carbon tetrachloride).



Diameter(mm) Outer diameter(mm) Wall thickness
(mm)
Weight/m
(kg)
Weight/root(kg) Root/km Weight/km(ton)
80 98 6 12.2 76.5 167 12.77
100 118 6.1 15.1 95 167 15.87
150 170 6.3 22.8 144 167 20.05
200 220 6.4 30.6 194 167 32.4
250 274 6.8 40.2 255 167 42.59
300 326 7.2 50.8 323 167 53.94
350 378 7.7 63.2 403 167 67.3
400 429 8.1 75.5 482 167 80.48
450 480 8.6 89.3 575 167 95.86
500 532 9 104.3 669 167 111.72
600 635 9.9 137.3 882 167 147.29
700 738 10.8 173.9 1123 167 187.54
800 842 11.7 215.2 1394 167 232.8
900 945 12.6 260.2 1691 167 282.4
1000 1048 13.5 309.3 2017 167 336.84
1200 1255 15.3 420.1 2758 167 460.69






Advantage



1. Low temperature thermal shock resistance: PE-RT has better low temperature shock resistance. During winter construction, the pipes are not susceptible to impact and rupture, which increases the flexibility of construction arrangements.
2. Environmental protection: PE-RT and PP-R can be recycled and will not pollute the environment. The PEX cannot be recycled will cause secondary pollution.
3. Stability of processing performance: PEX has the problems of controlling the degree of cross-linking and cross-linking uniformity. The processing is complicated and the processing directly affects the performance of the pipe. However, PE-RT and PP-R are easy to process, and the performance of the pipe is basically determined by the raw material, and the performance is relatively stable.



Details

PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 0PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 1PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 2PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 3









Application



1. Urban gas pipelines
Because HDPE gas special pipeline has strong impact resistance and toughness. Gradually replace cast iron pipes for urban and rural gas transmission projects. The urban gas pipeline network must not only ensure uninterrupted and reliable supply of gas to users, ensure the safe operation and management of the system, and facilitate maintenance and maintenance, but also consider closing some pipe sections without affecting the work of other systems during maintenance or failure. Therefore, it is necessary to select different pressure levels in the urban gas network system.
2. Sewage discharge pipes
HDPE sewage treatment pipe refers to a system of pipes, canals and their ancillary facilities that collect and discharge sewage, waste water and rainwater. Including mains, branches and pipes leading to the treatment plant, whether built on the street or anywhere else, should be counted as drains as long as they are drains. HDPE chemical pipes have high chemical resistance to rings dissolved in civil and industrial wastewater.



Certificate



PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 4

PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 5

PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 6



Company Profile



Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.


PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 7     PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 8



PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 9     PE Water Supply Pipe Polyethylene Steel Mesh Composite Pipe Drinking Tap Water Pipe 10



FAQ



Q: How to buy products?
A: Send an email to us and we will get back to you within one day.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.



Q: Can I customize the size I need?
A: Yes
