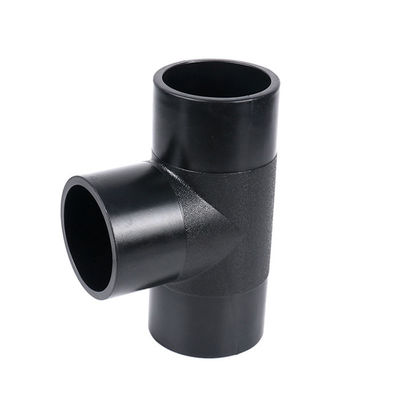

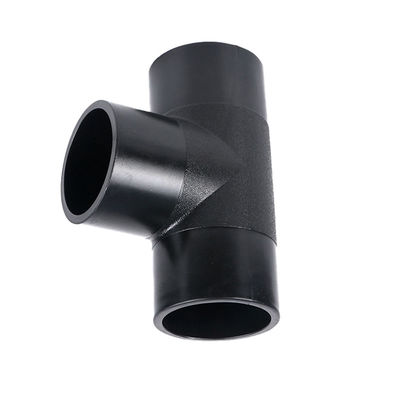

Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM04014-6
Specification: 20-800mm,or As Custom
Color: Black Or As Custom
Usage: HDPE Pipe Connector
Raw Material: PE100
Size: Customized Size
MOQ: 1 Piece
Sample: Provide Samples
Advantage: High Performance
Occasion: House Service,water Mains,irrigation,various
High Light:

hot melt hdpe reducing tee

,

sprinkler irrigation system hdpe reducing tee

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM04014-6
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

HDPE Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System



----------------------------------------



Basic Info.



HDPE drainage pipe is a thermoplastic pipe material, the matrix is ​​mainly high-density polyethylene resin, and it is used for plastic pipes without internal pressure after extrusion molding. The raw material is white powder or granular, non-toxic, tasteless, and has the advantages of corrosion resistance, aging resistance, impact resistance and crack resistance.



Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
  Wall Thick Ness(mm)
20 2.3 2.3
25 3 2.3 2.3
32 3.6 3 2.4
40 4.5 3.7 3 2.4
50 5.6 4.6 3.7 3
63 7.1 5.8 4.7 3.8
75 8.4 6.8 5.6 4.5
90 10.1 8.2 6.7 5.4 4.3
110 12.3 10 8.1 6.6 5.3 4.2
125 14 11.4 9.2 7.4 6 4.8
140 15.7 12.7 10.3 8.3 6.7 5.4
160 17.9 14.6 11.8 9.5 7.7 6.2
180 20.1 16.4 13.3 10.7 8.6 6.9
200 22.4 18.2 14.7 11.9 9.6 7.7
225 25.2 20.5 16.6 13.4 10.8 8.6
250 27.9 22.7 18.4 14.8 11.9 9.6
280 31.3 25.4 20.6 16.6 13.4 10.7
315 35.2 28.6 23.2 18.7 15 12.1
355 39.7 32.2 26.1 21.1 16.9 13.6
400 44.7 36.3 29.4 23.7 19.1 15.3
450 50.3 40.9 33.1 26.7 21.5 17.2
500 55.8 45.4 36.8 29.7 23.9 19.1
560 62.5 50.8 41.2 33.2 26.7 21.4
630 70.3 57.2 46.3 37.4 30 24.1
710   64.5 52.2 42.1 33.9 27.2
800   72.7 58.8 47.4 38.1 30.6
900   81.8 66.2 53.3 42.9 34.4
1000   90.2 72.5 59.3 47.7 38.2
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2

61.2



Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 0



Advantage



1. Easy butt welding and electrofusion welding form a closed anti-seepage system. When laying along the trench, it can reduce the amount of trench excavated earthwork and reduce the amount of accessories.

2. Lightweight and easy to install and handle;

3. With its strong wear resistance and excellent hydraulic performance, no external protection is needed for buried pipelines. It can be applied to earthquake and soil settlement areas in mining areas, and can also be laid at the bottom of rivers by the sinking method.

4. It is resistant to chemical corrosion, internal and external microbial corrosion, strong corrosion resistance, and healthy. It is suitable for transporting acidic and alkaline substances, sewage, natural gas, coal gas and other substances;

5. Good environmental adaptability and frost resistance. Can be used for indoor and outdoor water supply pipelines.

6. Long service life, with a service life of more than almost 50 years;

7. Easy to recycle.



Details







     Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 1Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 2Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 3Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 4






Application



1. Building indoor water supply system,

2. Vertical and horizontal drainage and permeation of expressways,

3. Vertical and horizontal drainage on the back of various retaining walls and side ditches of expressways,

4. Water supply and drainage systems for municipal engineering, water purification plants, sewage plants, garbage dumps, etc.,

5. Outdoor buried water supply system and residential area, factory area buried water supply system,

6. Water treatment engineering piping system,

7. Industrial water pipes in gardens, irrigation and other fields, etc.



Certificate



Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 5

Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 6

Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 7



Company Profile



High Mountain Pipe has passed ISO 9001, ISO 14001, OHSAS 18001 management system certification and China environmental labeling product certification. The company is applying for CQC (China Quality) certification and CNAS (China National Accreditation Service for Conformity Assessment) national laboratory qualification accreditation. The company adheres to the business philosophy of "integrity, modesty, and a long history",Relying on our wide business channels and professional experience, we are more skillfully providing products of stable but differentiated quality, along with flexible, highly efficient & considerate service to satisfy our partner at more competitive pricing.



Long-term stock products: FRPP pipes, HDPE pipes, PP pipes, PPH pipes, PP boards, PE boards, UHMWPE boards and all pipe fittings.Pipes and plates with special quality requirements and colors, large quantities can be customized according to customer requirements and colors.



Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 8      Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 9



Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 10      Hdpe Pipe Fittings Hot Melt Tee Reducer Pipe Fittings For Sprinkler Irrigation System 11



FAQ



Q: What are your payment terms?
A: Accept the T/T and L/C terms.



Q: After reading your FAQ, I am very satisfied. How can I start buying my order?
A: Please contact our sales manager by email or phone, thank you.



Q: What is the purpose of this pipeline?
A: It is mainly used to transport liquids, and is used on a large scale in urban water supply projects, farmland irrigation, etc.
