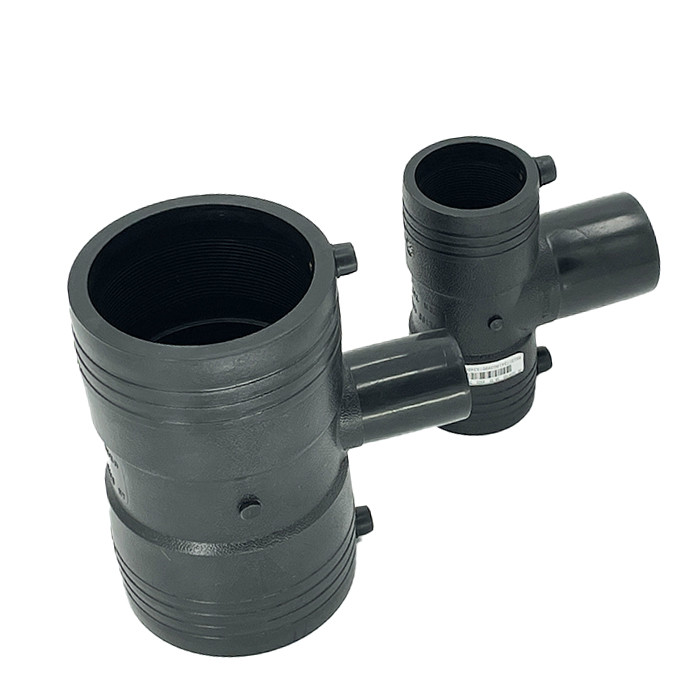

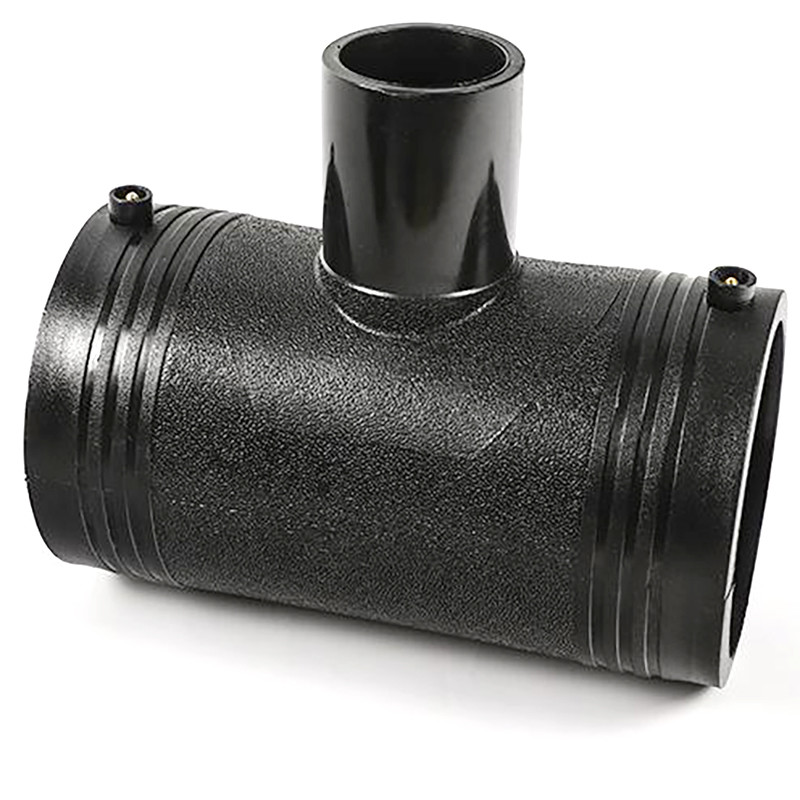

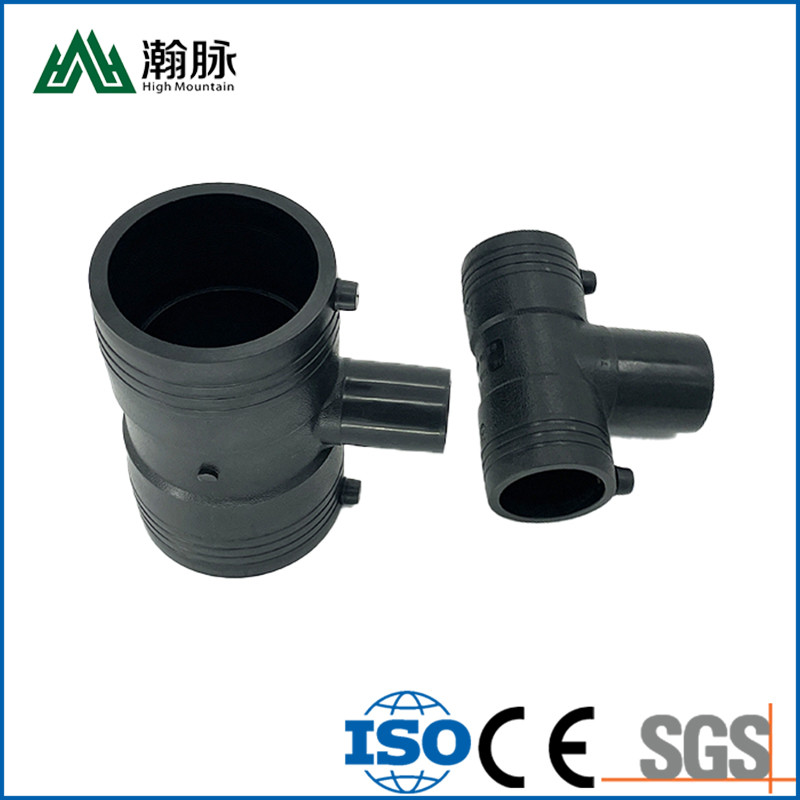

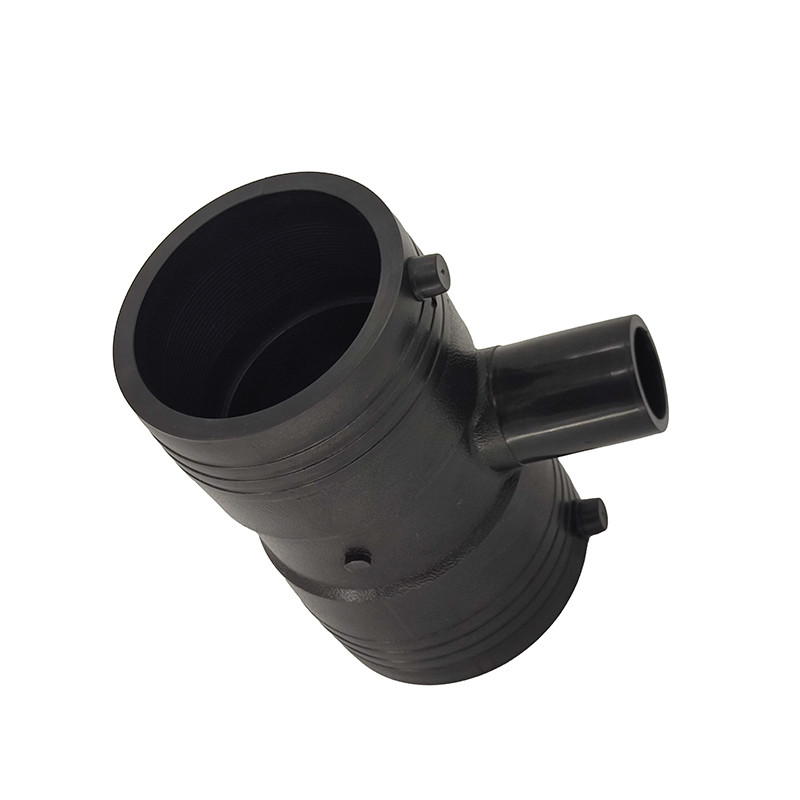

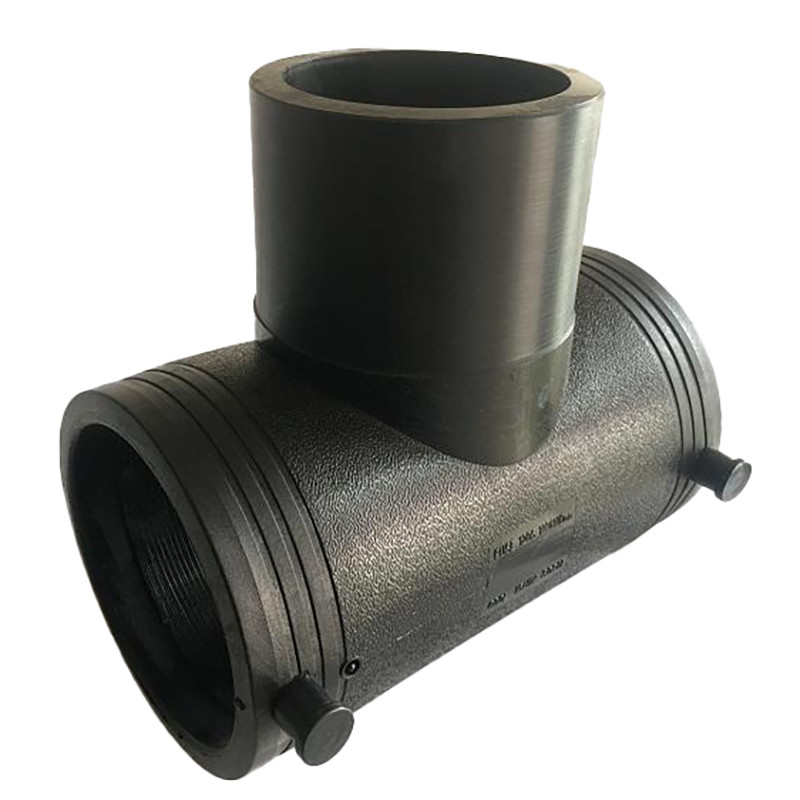

HDPE Pipe Fittings Electrofusion Reducing Tee Pe Tap Water Supply Pipe Joint
----------------------------------------
Basic Info.
HDPE is a highly crystalline, non-polar thermoplastic resin. The appearance of the original HDPE is milky white, and the thin section is translucent to a certain extent. PE has excellent resistance to most domestic and industrial chemicals. Certain types of chemicals can cause chemical corrosion, such as corrosive oxidizers (concentrated nitric acid), aromatic hydrocarbons (xylene) and halogenated hydrocarbons (carbon tetrachloride). The polymer is non-hygroscopic and has good water vapor resistance, and can be used for packaging purposes.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
| Wall Thick Ness(mm) | ||||||
| 20 | 2.3 | 2.3 | ||||
| 25 | 3 | 2.3 | 2.3 | |||
| 32 | 3.6 | 3 | 2.4 | |||
| 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 1600 | 117.6 | 94.1 | 76.2 |
61.2 |
||
Advantage
High-density polyethylene is non-toxic, tasteless, and odorless white particles with a melting point of about 130°C and a relative density of 0.941 to 0.960. HDPE has good electrical properties, especially high dielectric strength, medium to high molecular weight,and excellent impact resistance, both at room temperature and even at low temperatures.
Details
Application
1.When the water supply pipe is laid outdoors in the open air, shielding measures should be taken in the place exposed to sunlight.
2.When installing high-density polyethylene pipes, if the available operating space is too small, electrofusion connection should be selected for work.
3.When using hot-melt socket connection, the heating temperature should not be too high, and the heating time should not be too long. The temperature should be controlled at about 210±10 °C to avoid excessive extrusion of molten slurry in the fittings, thus reducing the inner diameter of the water. At the same time, when the socket is inserted, the pipe fittings and the pipe interface should be kept clean to avoid the situation that the socket is disconnected and leaked.
Certificate
Company Profile
High Mountain Pipe has passed ISO 9001, ISO 14001, OHSAS 18001 management system certification and China environmental labeling product certification. The company is applying for CQC (China Quality) certification and CNAS (China National Accreditation Service for Conformity Assessment) national laboratory qualification accreditation. The company adheres to the business philosophy of "integrity, modesty, and a long history".
Long-term stock products: FRPP pipes, HDPE pipes, PP pipes, PPH pipes, PP boards, PE boards, UHMWPE boards and all pipe fittings.Pipes and plates with special quality requirements and colors, large quantities can be customized according to customer requirements and colors.
