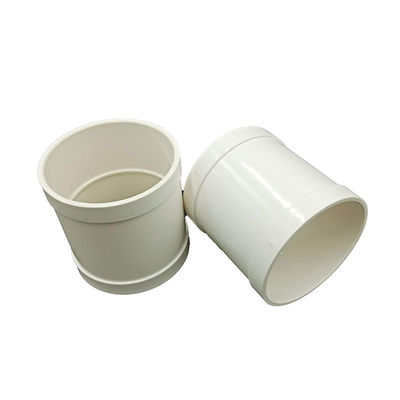

Non-potable Water Sewage Drainage PVC Drainage Pipe White Fittings
----------------------------------------
Basic Info.
PVC and PVC links are generally bonded with PVC special glue. This method is easy and fast to operate. Large-diameter pipes can also be connected with elastic sealing rings, but the premise is that the flaring of pipes or fittings must be R-type flaring instead of flat expansion. Links between PVC and other materials: flanges are used for large-diameter pipes, and unions or internal and external wire joints are used for small-diameter pipes.
| DN.mm | Wall thickness(mm) | |||||
| 0.63 M pa | 0.8Mpa | l.OMpa | 1.25Mpa | 1.6Mpa | 2.0Mpa | |
| 20 | - | - | - | - | 2.0 | 2.0 |
| 25 | - | - | - | - | 2.0 | 2.0 |
| 32 | - | - | - | - | 2.0 | 2.0 |
| 40 | - | - | - | - | 2.0 | 2.0 |
| 50 | - | - | - | - | 2.0 | 2.4 |
| 50 | - | - | - | 2.0 | 2.4 | 3.0 |
| 63 | - | - | 2.0 | 2.5 | 3.0 | 3.8 |
| 75 | - | 2.0 | 2.3 | 2.9 | 3.6 | 4.5 |
| 90 | 2.0 | 2.2 | 2.8 | 3.5 | 4.3 | 6.5 |
| 110 | 2.2 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 |
| 125 | 2.5 | 3.1 | 3.9 | 4.8 | 6.0 | 7.4 |
| 140 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 |
| 160 | 3.2 | 4.0 | 4.9 | 6.2 | 7.7 | 9.5 |
| 180 | 3.6 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 |
| 200 | 3.9 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 |
| 225 | 4.4 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 |
| 250 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 |
| 280 | 5.5 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 |
| 315 | 6.2 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 |
| 355 | 7.0 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 |
| 400 | 7.9 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 |
| 450 | 8.8 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 |
| 500 | 8.9 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 |
| 560 | 11.0 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 |
| 630 | 12.3 | 15.4 | 19.3 | 24.1 | 30.0 | 37.4 |
Advantage
1. It has good tensile and compressive strength.
2. The wall of the pipe is very smooth, so the resistance of the water flow is very small. Its water delivery capacity is 20% higher than that of the cast iron pipe of the same diameter, and the water delivery effect is very high.
3. Corrosion resistance and chemical resistance are also very good, with good acid resistance, alkali resistance, corrosion resistance, not affected by wet moisture and soil pH, and have a long service life.
4. It has good water tightness. Whether this kind of pipe is connected by bonding or rubber ring, it can maintain good water tightness.
5. It has good stretchability and thermal stability, can adapt to different environments and has a wide range of use.
Details
Application
PVC pipe has been regarded as the preferred pipe material by the construction industry. It is widely used in various fields and industries. From its own characteristics, it can be fully reflected in the waterway system. Then, what should we pay attention to during the installation process?
1. In order to ensure the safety and cleanliness of the PVC pipe, the pipe should be placed on the top with a bracket, which can ensure that the pipe is not placed anywhere and is not trampled by people, the pipe can also be used cleanly, and it can also prevent sludge residue in the pipe;
2. Before installation, the layout of the construction pipeline should be checked clearly, not only neat, but also strong in structure and smooth;
3. When installing, handle the pipe lightly to avoid damage during handling, and pay attention to the stones or silt staying in the pipe;
4. After the installation is completed, we need to conduct a pressure test for a period of time, and then check that there is no water leakage at each interface during the test, and replace it immediately if found.
Certificate
Company Profile
High Mountain Pipe is a well-known PVC pipe manufacturer and wholesaler in Jiangsu. It produces multi-caliber HDPE pipes, pvc pipes, pvc hoses and accessories and supporting machines. The products are widely used. It is the first choice for watering and irrigation of agricultural and forestry breeding gardens. The pipeline is An essential transmission tool for industrial, agricultural, and construction engineering drainage cleaning. Complete specifications, can be customized according to customer needs, use quality to create a brand, and use service to win trust.
The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!
FAQ
Q: How can you guarantee the goods you offer is qualified?
A: We always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.
Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.
