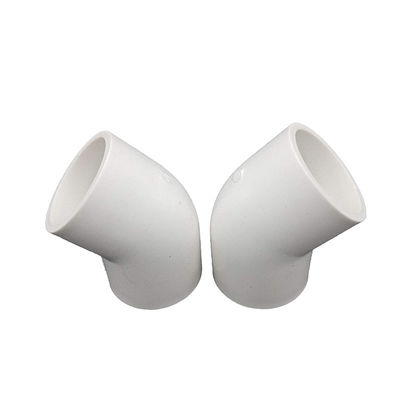

Pvc Drainage Pipe Fittings Tee 45 90 Degree Elbow Male Famale Thread Adaptor Pipe Connector
----------------------------------------
Basic Info.
The main component of PVC is polyvinyl chloride, and other components are added to enhance its heat resistance, toughness and ductility. The top layer of this surface film is lacquer, the main component in the middle is polyvinyl chloride, and the bottom layer is a back coating adhesive.
PVC and PVC links are generally bonded with PVC special glue. This method is easy and fast to operate. Large-diameter pipes can also be connected with elastic sealing rings, but the premise is that the flaring of pipes or fittings must be R-type flaring instead of flat expansion. Links between PVC and other materials: flanges are used for large-diameter pipes, and unions or internal and external wire joints are used for small-diameter pipes.
| DN.mm | Wall thickness(mm) | |||||
| 0.63 M pa | 0.8Mpa | l.OMpa | 1.25Mpa | 1.6Mpa | 2.0Mpa | |
| 20 | - | - | - | - | 2.0 | 2.0 |
| 25 | - | - | - | - | 2.0 | 2.0 |
| 32 | - | - | - | - | 2.0 | 2.0 |
| 40 | - | - | - | - | 2.0 | 2.0 |
| 50 | - | - | - | - | 2.0 | 2.4 |
| 50 | - | - | - | 2.0 | 2.4 | 3.0 |
| 63 | - | - | 2.0 | 2.5 | 3.0 | 3.8 |
| 75 | - | 2.0 | 2.3 | 2.9 | 3.6 | 4.5 |
| 90 | 2.0 | 2.2 | 2.8 | 3.5 | 4.3 | 6.5 |
| 110 | 2.2 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 |
| 125 | 2.5 | 3.1 | 3.9 | 4.8 | 6.0 | 7.4 |
| 140 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 |
| 160 | 3.2 | 4.0 | 4.9 | 6.2 | 7.7 | 9.5 |
| 180 | 3.6 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 |
| 200 | 3.9 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 |
| 225 | 4.4 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 |
| 250 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 |
| 280 | 5.5 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 |
| 315 | 6.2 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 |
| 355 | 7.0 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 |
| 400 | 7.9 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 |
| 450 | 8.8 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 |
| 500 | 8.9 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 |
| 560 | 11.0 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 |
| 630 | 12.3 | 15.4 | 19.3 | 24.1 | 30.0 | 37.4 |
Advantage
PVC drainage pipe is an alternative to traditional drainage pipes and has better physical and chemical properties. Its inner wall is smooth and has less frictional resistance than conventional drainage materials. Therefore, the installation slope of the horizontal pipe is small, which can increase the indoor net height of the building. At the same time, PVC drainage pipes are lighter in weight, one-fifth of cast iron pipes, easy to transport and operate; adhesive connection is used to facilitate installation and maintenance; the price is lower than conventional drainage pipes, which greatly reduces the project cost; strong corrosion resistance, in construction Sewage and rainwater pipe systems are widely used.
Details
Application
PVC drainage pipe is an alternative to traditional drainage pipes and has better physical and chemical properties. Its inner wall is smooth and has lower frictional resistance than conventional drainage materials. Therefore, the installation slope of the horizontal pipe is small, which can increase the indoor clear height of the building. At the same time, PVC drainage pipes are lighter, one-fifth the weight of cast iron pipes, and are easy to transport and operate. Adhesive connections are used to facilitate installation and maintenance. The price is lower than conventional drainage pipes, which greatly reduces the project cost. It has strong corrosion resistance and is suitable for construction. Sewage and rainwater piping systems are commonly used. In addition, the widespread use of PVC drainage pipes is conducive to saving steel.
Certificate
Company Profile
High Mountain Pipe is a well-known PVC pipe manufacturer and wholesaler in Jiangsu. It produces multi-caliber HDPE pipes, pvc pipes, pvc hoses and accessories and supporting machines. The products are widely used. It is the first choice for watering and irrigation of agricultural and forestry breeding gardens. The pipeline is An essential transmission tool for industrial, agricultural, and construction engineering drainage cleaning. Complete specifications, can be customized according to customer needs, use quality to create a brand, and use service to win trust.
The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!
