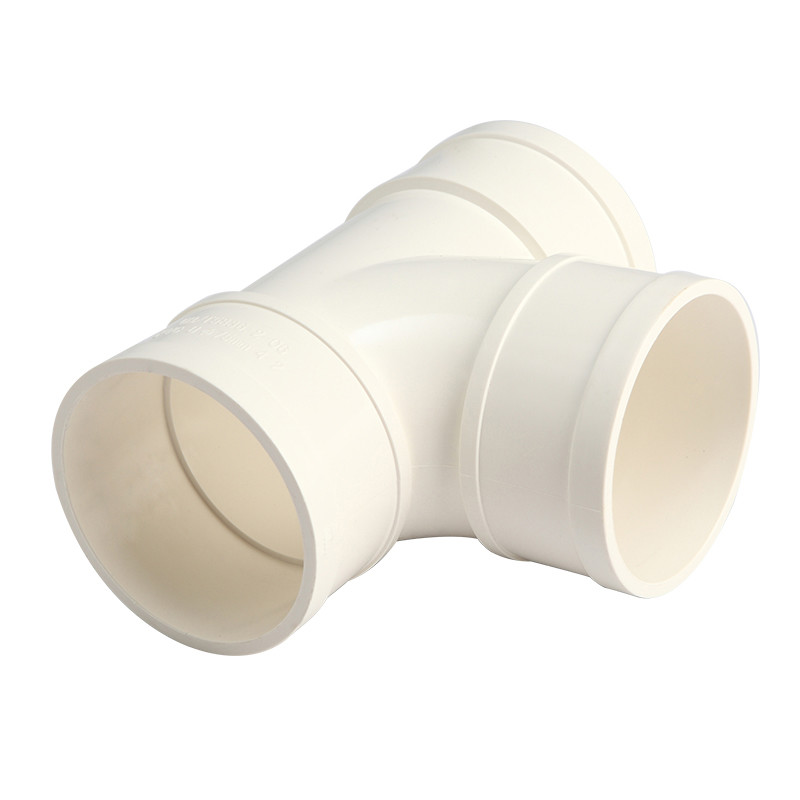

Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM06010-1
High Light:

Municipal PVC Drainage Pipe Fittings

,

Tee50 PVC Drainage Pipe Fittings

,

Plastic Tee75 PVC Drainage Pipe Fittings

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM06010-1
Specification: DN20-DN800mm
Color: Black,white,grey,green Or At Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
Working Pressure: 0.2mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

Municipal Drainage Pipe Fittings Positive Tee 50 75 110 160 Plastic PVC Pipe Fittings Supply

----------------------------------------



Basic Info.



PVC drainage pipe is an alternative to traditional drainage pipes and has better physical and chemical properties. Its inner wall is smooth and has less frictional resistance than conventional drainage materials. Therefore, the installation slope of the horizontal pipe is small, which can increase the indoor net height of the building. At the same time, PVC drainage pipes are lighter in weight, one-fifth of cast iron pipes, easy to transport and operate; adhesive connection is used to facilitate installation and maintenance; the price is lower than conventional drainage pipes, which greatly reduces the project cost; strong corrosion resistance, in construction Sewage and rainwater pipe systems are widely used.



DN.mm Wall thickness(mm)
0.63 M pa 0.8Mpa l.OMpa 1.25Mpa 1.6Mpa 2.0Mpa
20 - - - - 2.0 2.0
25 - - - - 2.0 2.0
32 - - - - 2.0 2.0
40 - - - - 2.0 2.0
50 - - - - 2.0 2.4
50 - - - 2.0 2.4 3.0
63 - - 2.0 2.5 3.0 3.8
75 - 2.0 2.3 2.9 3.6 4.5
90 2.0 2.2 2.8 3.5 4.3 6.5
110 2.2 2.7 3.4 4.2 5.3 6.6
125 2.5 3.1 3.9 4.8 6.0 7.4
140 2.8 3.5 4.3 5.4 6.7 8.3
160 3.2 4.0 4.9 6.2 7.7 9.5
180 3.6 4.4 5.5 6.9 8.6 10.7
200 3.9 4.9 6.2 7.7 9.6 11.9
225 4.4 5.5 6.9 8.6 10.8 13.4
250 4.9 6.2 7.7 9.6 11.9 14.8
280 5.5 6.9 8.6 10.7 13.4 16.6
315 6.2 7.7 9.7 12.1 15.0 18.7
355 7.0 8.7 10.9 13.6 16.9 21.1
400 7.9 9.8 12.3 15.3 19.1 23.7
450 8.8 11.0 13.8 17.2 21.5 26.7
500 8.9 12.3 15.3 19.1 23.9 29.7
560 11.0 13.7 17.2 21.4 26.7 33.2
630 12.3 15.4 19.3 24.1 30.0 37.4



Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 0



Advantage



1. Light weight, convenient handling and handling: low density, convenient handling, handling, and construction.
2. Small fluid resistance: The inner wall of the pipe is smooth, its roughness coefficient is only 0.009, and the fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces the operating cost of the system.
3. Excellent corrosion resistance: It has excellent acid resistance, alkali resistance and corrosion resistance, which is very suitable for the use of chemical industry.
4. High mechanical strength: The pipe has good pressure resistance, impact resistance and tensile strength.
5. Simple construction: The pipeline connection construction is quick and easy, and the construction cost is low.
6. Does not affect water quality: It is confirmed by the dissolution test that it does not affect water quality, and is suitable for large-scale promotion and application.
7. Low cost: low price, convenient transportation and construction, and long service life, so the overall cost is low.



Details

Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 1Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 2Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 3Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 4



Application



PVC pipe has been regarded as the preferred pipe material by the construction industry. It is widely used in various fields and industries. From its own characteristics, it can be fully reflected in the waterway system. Then, what should we pay attention to during the installation process?
1. In order to ensure the safety and cleanliness of the PVC pipe, the pipe should be placed on the top with a bracket, which can ensure that the pipe is not placed anywhere and is not trampled by people, the pipe can also be used cleanly, and it can also prevent sludge residue in the pipe;
2. Before installation, the layout of the construction pipeline should be checked clearly, not only neat, but also strong in structure and smooth;
3. When installing, handle the pipe lightly to avoid damage during handling, and pay attention to the stones or silt staying in the pipe;
4. After the installation is completed, we need to conduct a pressure test for a period of time, and then check that there is no water leakage at each interface during the test, and replace it immediately if found.



Certificate



Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 5

Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 6

Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 7

Company Profile



High Mountain Pipe is a well-known PVC pipe manufacturer and wholesaler in Jiangsu. It produces multi-caliber HDPE pipes, pvc pipes, pvc hoses and accessories and supporting machines. The products are widely used. It is the first choice for watering and irrigation of agricultural and forestry breeding gardens. The pipeline is An essential transmission tool for industrial, agricultural, and construction engineering drainage cleaning. Complete specifications, can be customized according to customer needs, use quality to create a brand, and use service to win trust.



The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!



Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 8      Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 9



Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 10      Municipal PVC Drainage Pipe Fittings Tee 50 75 110 160 Plastic 11





FAQ



Q: Which payment is available for your company?
A: T/T, L/C or Ali trade insurance. You can choose the one which is convenient for you.



Q: Where is your company?
A: We are located in Jiangsu, China.



Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
