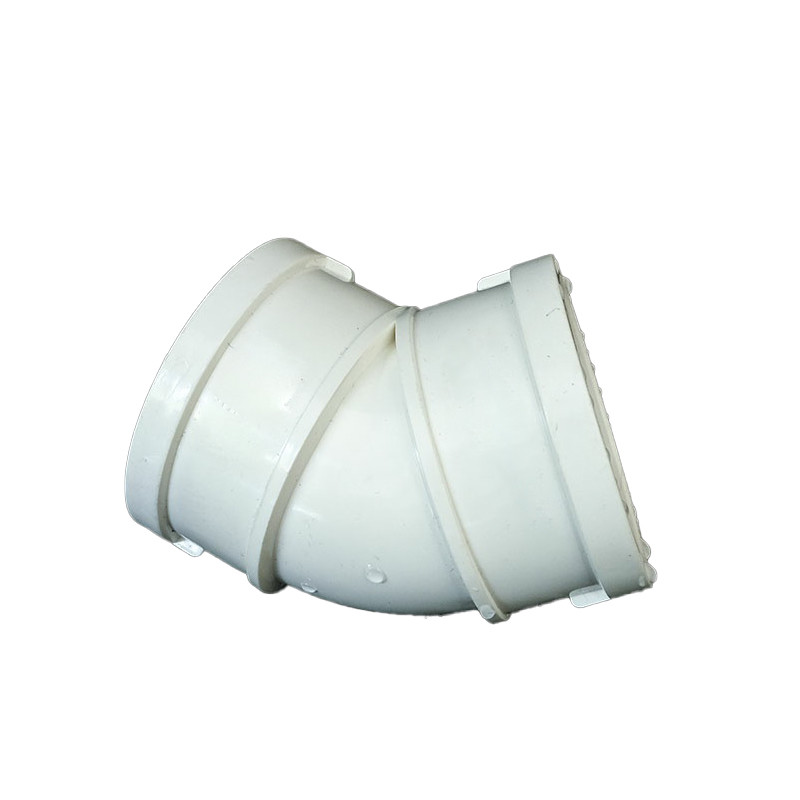

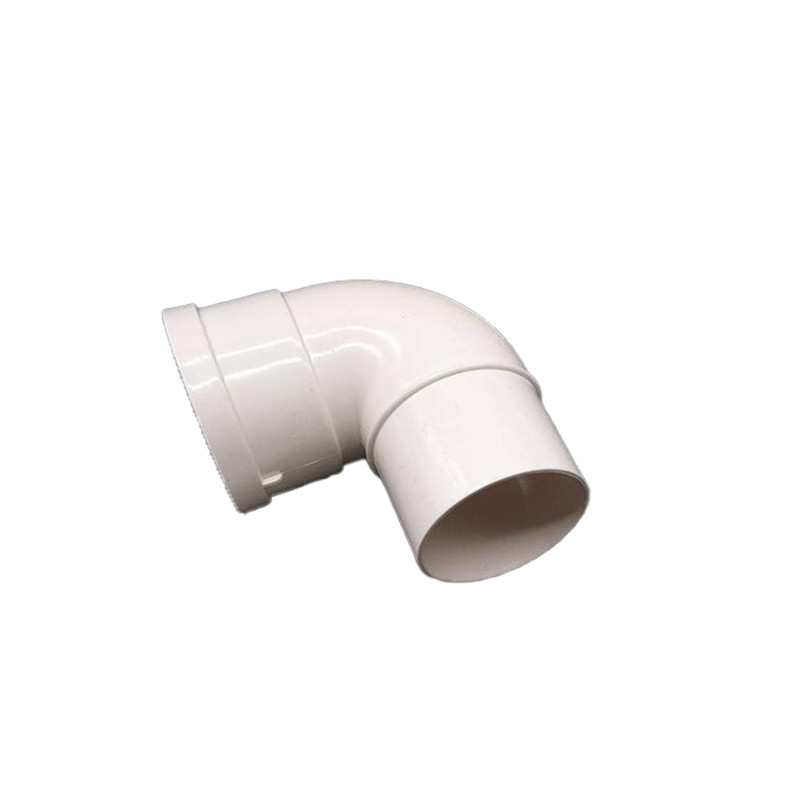

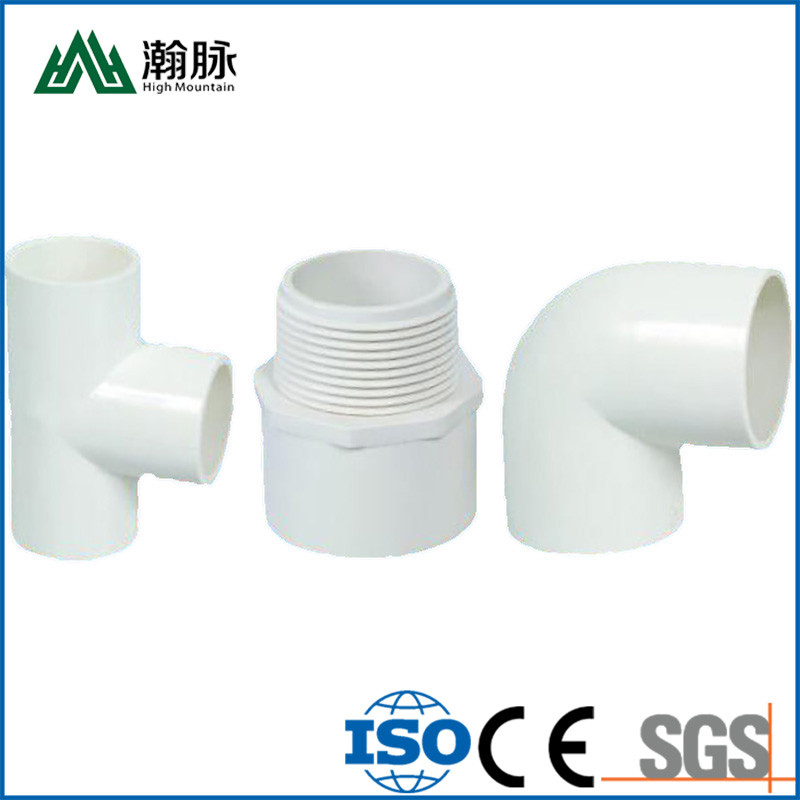

Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM06004-1
High Light:

Elbow PVC Drainage Pipe Fittings

,

Plastic Joint PVC Drainage Pipe Fittings

,

PVC Drainage Pipe Fittings Multi Specification

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM06004-1
Specification: DN20-DN800mm
Color: Black,white,grey,green Or At Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
Working Pressure: 0.2mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

Multi-Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint

----------------------------------------



Basic Info.



PVC drainage pipe is an alternative to traditional drainage pipes and has better physical and chemical properties. Its inner wall is smooth and has less frictional resistance than conventional drainage materials. Therefore, the installation slope of the horizontal pipe is small, which can increase the indoor net height of the building. At the same time, PVC drainage pipes are lighter in weight, one-fifth of cast iron pipes, easy to transport and operate; adhesive connection is used to facilitate installation and maintenance; the price is lower than conventional drainage pipes, which greatly reduces the project cost; strong corrosion resistance, in construction Sewage and rainwater pipe systems are widely used.





DN.mm Wall thickness(mm)
0.63 M pa 0.8Mpa l.OMpa 1.25Mpa 1.6Mpa 2.0Mpa
20 - - - - 2.0 2.0
25 - - - - 2.0 2.0
32 - - - - 2.0 2.0
40 - - - - 2.0 2.0
50 - - - - 2.0 2.4
50 - - - 2.0 2.4 3.0
63 - - 2.0 2.5 3.0 3.8
75 - 2.0 2.3 2.9 3.6 4.5
90 2.0 2.2 2.8 3.5 4.3 6.5
110 2.2 2.7 3.4 4.2 5.3 6.6
125 2.5 3.1 3.9 4.8 6.0 7.4
140 2.8 3.5 4.3 5.4 6.7 8.3
160 3.2 4.0 4.9 6.2 7.7 9.5
180 3.6 4.4 5.5 6.9 8.6 10.7
200 3.9 4.9 6.2 7.7 9.6 11.9
225 4.4 5.5 6.9 8.6 10.8 13.4
250 4.9 6.2 7.7 9.6 11.9 14.8
280 5.5 6.9 8.6 10.7 13.4 16.6
315 6.2 7.7 9.7 12.1 15.0 18.7
355 7.0 8.7 10.9 13.6 16.9 21.1
400 7.9 9.8 12.3 15.3 19.1 23.7
450 8.8 11.0 13.8 17.2 21.5 26.7
500 8.9 12.3 15.3 19.1 23.9 29.7
560 11.0 13.7 17.2 21.4 26.7 33.2
630 12.3 15.4 19.3 24.1 30.0 37.4



Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 0



Advantage


1. The wall of the pipe is very smooth, so the resistance of the water flow is very small. Its water delivery capacity is 20% higher than that of the cast iron pipe of the same diameter, and the water delivery effect is very high.
2. Corrosion resistance and chemical resistance are also very good, with good acid resistance, alkali resistance, corrosion resistance, not affected by wet moisture and soil pH, and have a long service life.
3. It has good water tightness. Whether this kind of pipe is connected by bonding or rubber ring, it can maintain good water tightness.
4. It has good stretchability and thermal stability, can adapt to different environments and has a wide range of use.
5. With good hardness, it can be used as a drainage pipe, which can prevent the erosion of insects and ants, and has a longe
r service life.



Details

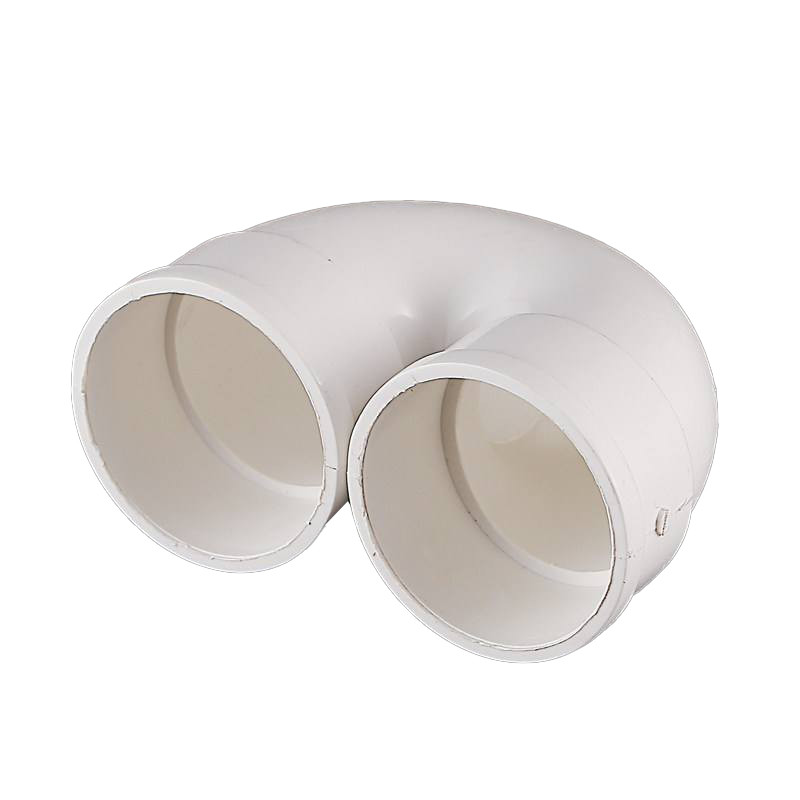

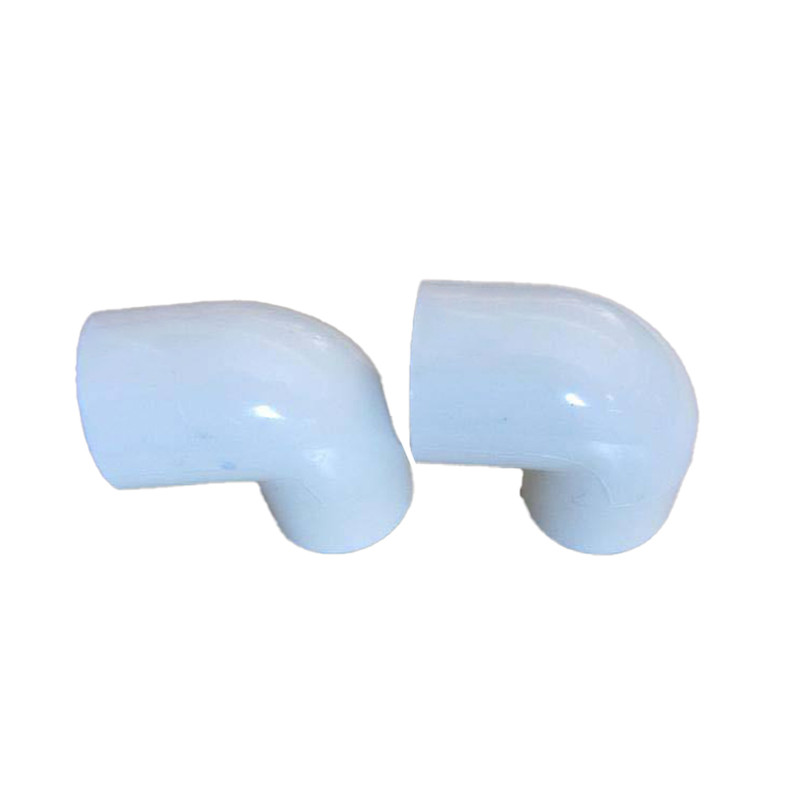

 Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 1Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 2Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 3Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 4






Application



PVC pipe has been regarded as the preferred pipe material by the construction industry. It is widely used in various fields and industries. From its own characteristics, it can be fully reflected in the waterway system. Then, what should we pay attention to during the installation process?
1. In order to ensure the safety and cleanliness of the PVC pipe, the pipe should be placed on the top with a bracket, which can ensure that the pipe is not placed anywhere and is not trampled by people, the pipe can also be used cleanly, and it can also prevent sludge residue in the pipe;
2. Before installation, the layout of the construction pipeline should be checked clearly, not only neat, but also strong in structure and smooth;
3. When installing, handle the pipe lightly to avoid damage during handling, and pay attention to the stones or silt staying in the pipe;
4. After the installation is completed, we need to conduct a pressure test for a period of time, and then check that there is no water leakage at each interface during the test, and replace it immediately if found.



Certificate



Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 5

Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 6

Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 7

Company Profile



High Mountain Pipe is a well-known PVC pipe manufacturer and wholesaler in Jiangsu. It produces multi-caliber HDPE pipes, pvc pipes, pvc hoses and accessories and supporting machines. The products are widely used. It is the first choice for watering and irrigation of agricultural and forestry breeding gardens. The pipeline is An essential transmission tool for industrial, agricultural, and construction engineering drainage cleaning. Complete specifications, can be customized according to customer needs, use quality to create a brand, and use service to win trust.



The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!



Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 8      Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 9



Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 10      Multi Specification Elbow PVC Drainage Pipe Fittings White Gray Blue Plastic Joint 11





FAQ



Q: Which payment is available for your company?
A: T/T, L/C or Ali trade insurance. You can choose the one which is convenient for you.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.



Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.
