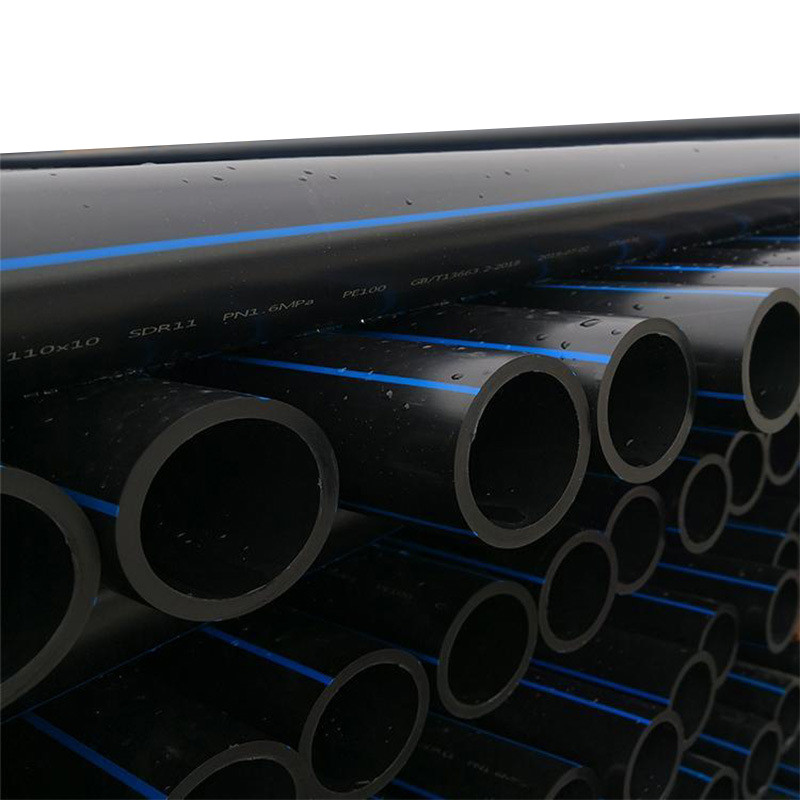

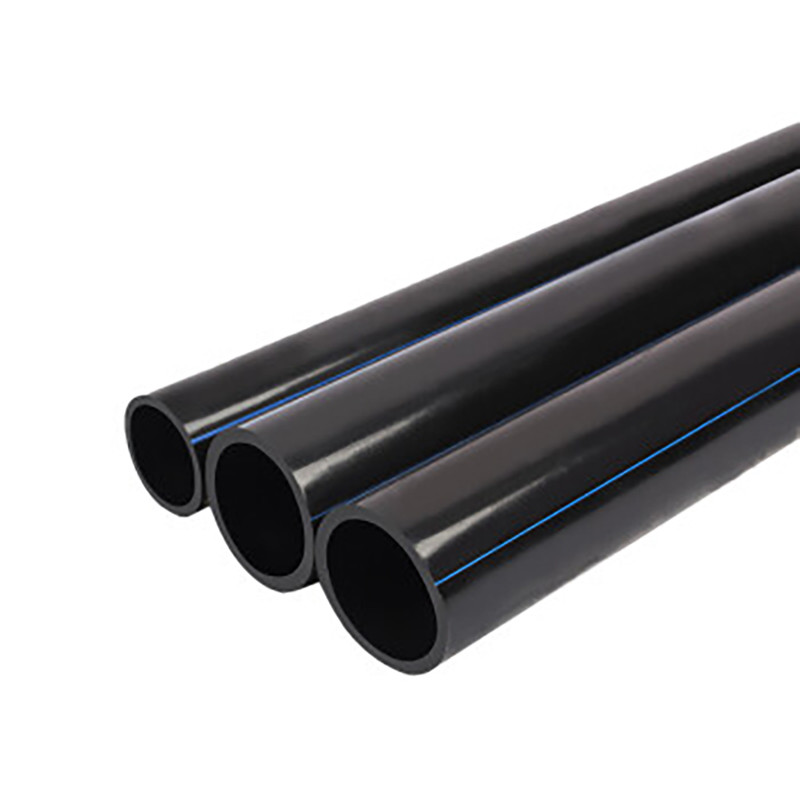

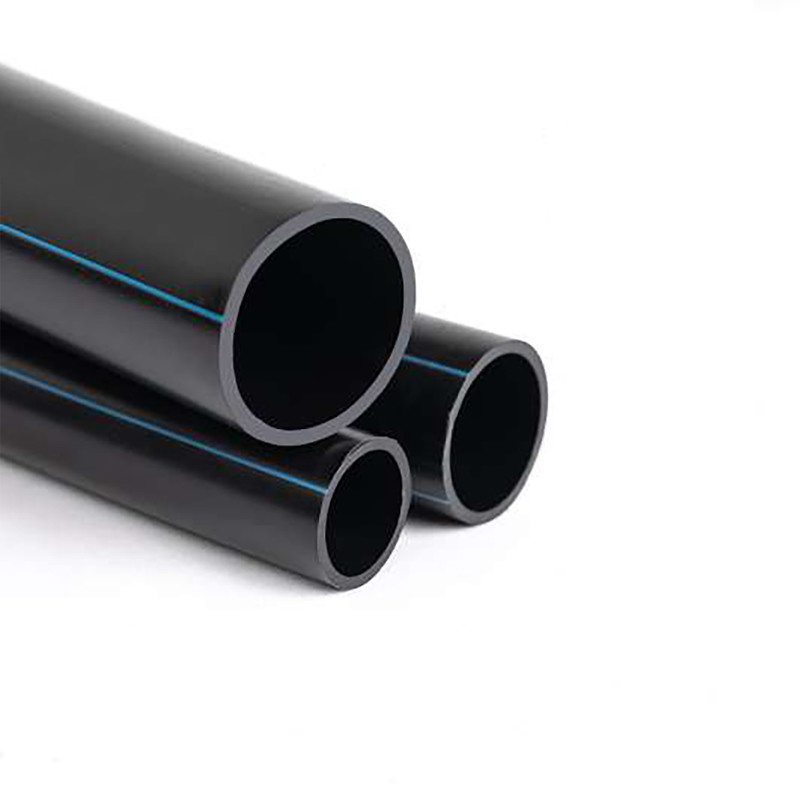

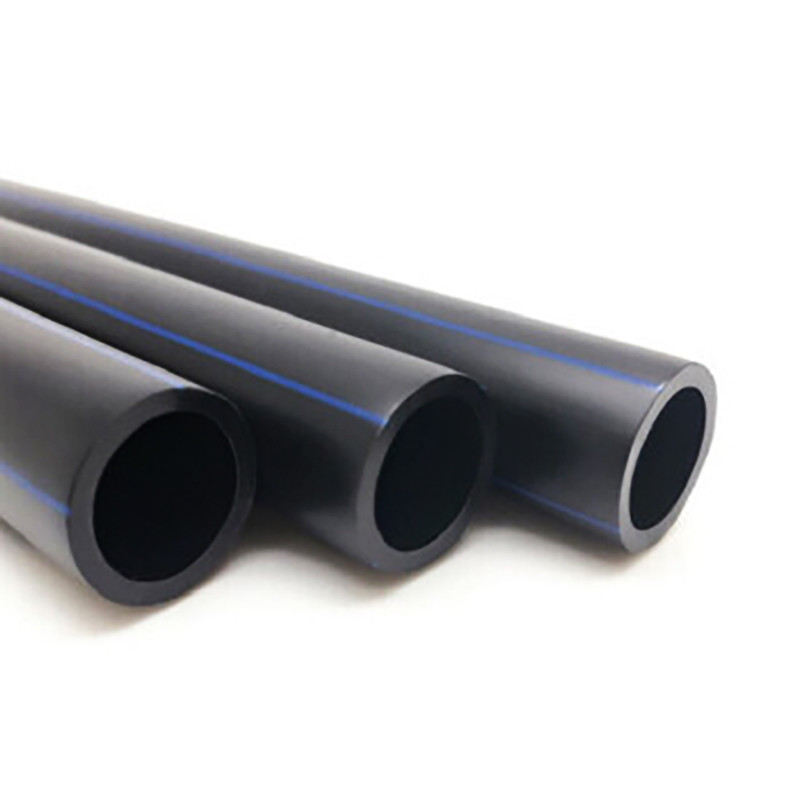

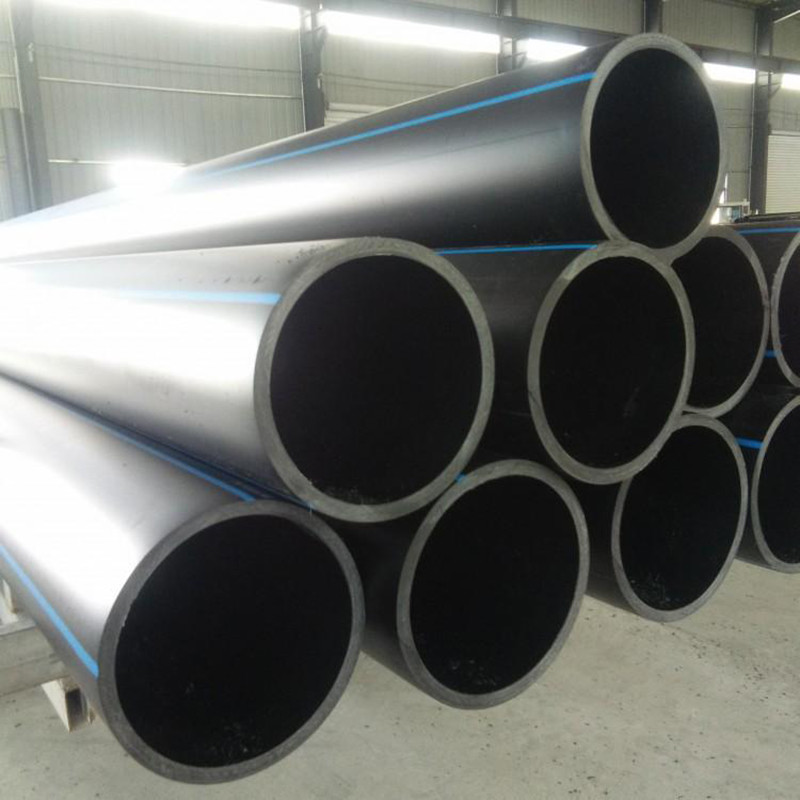

HDPE Pipe For Water Supply 4 Inch 6 Inch Sdr17 Watering Pipe Garden
----------------------------------------
Basic Info.
Water supply pipes need to withstand pressure, usually PE resin with high molecular weight and good mechanical properties, such as HDPE resin, should be used.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Good wear resistance: The comparison test of wear resistance of HDPE pipe and steel pipe shows that the wear resistance of HDPE pipe is 4% of that of steel pipe.
times. In the field of mud conveying, compared with steel pipes, HDPE pipes have better wear resistance, which means that HDPE pipes have better wear resistance.
Long service life and better economy.
2. Anti-aging and long service life: Poly-Zene pipes containing 2-2.5% of carbon black evenly distributed can be stored or used outdoors for 50 years without being damaged by ultraviolet radiation.
3. Reliable connection: The polyethylene pipe parts are connected by electrothermal fusion, and the strength of the joint is higher than that of the pipe body.
Details
Application
Urban water pipe network system
Replaceable cement, cast iron and steel pipes
Industrial raw material pipeline
Landscaping water supply network
Pipes for sewage discharge
agricultural irrigation pipes
marine pipeline
Seawater desalination pipeline
Certificate
Company Profile
High Mountain Technology Co., Ltd. is committed to manufacturing and selling various plastic pipes, fittings, valves and related plumbing fixtures, providing professional solutions for plumbing systems. The manufacturing and sales of our main products, PE water supply pipes and HDPE drainage pipes, are in a leading position in the industry.
The company covers an area of about 200,000 square meters, has 6 workshops, 30 production lines, 300 workers, and an annual production capacity of 200,000 tons. A comprehensive company integrating science, industry and trade. The industries involved include the research, manufacturing, development, manufacturing and polymer materials of plastic pipes. All products meet the requirements of national or enterprise inspection standards.
FAQ
Q: Where is your company?
A: We are located in Wuxi, Jiangsu, China.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
