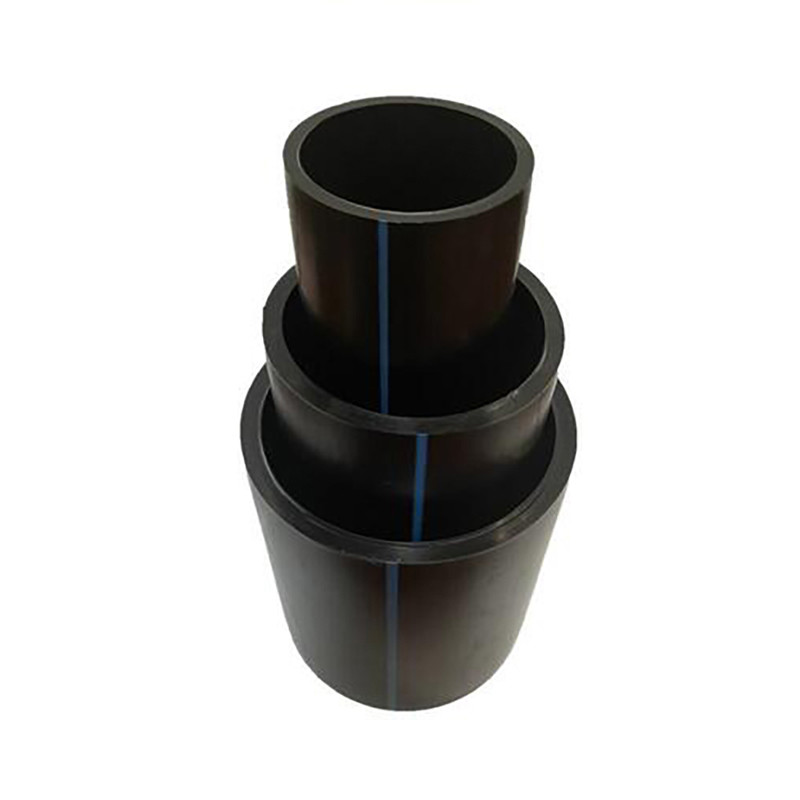

HDPE Water Supply Pe100 Pe80 20-210Mm Pipe HDPE Plastic Pipe
----------------------------------------
Basic Info.
There are many classification methods of HDPE pipes, which can be divided into water supply pipes, gas pipes, aluminum-plastic composite pipes, buried drainage pipes, agricultural irrigation pipes and electrical casings according to the application field; according to the pressure conditions, they can be divided into pressure pipes and non-pressure pipes. , water supply pipes and gas pipes belong to the category of pressure pipes.
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |||||
| Pressure 0.6Mpa | Pressure 0.8Mpa | Pressure 1.0Mpa | Pressure 1.25Mpa | Pressure 1.6Mpa | |||||
| Outer diameter mm | Thick mm | Outer diameter mm | Thick mm | Outer diameter mm | Thick mm | Outer diameter mm | Thick mm | Outer diameter mm | Thick mm |
| 110 | 4.2 | 90 | 4.3 | 75 | 4.5 | 63 | 4.7 | 20 | 2.3 |
| 125 | 4.8 | 110 | 5.3 | 90 | 5.4 | 75 | 5.6 | 25 | 2.3 |
| 140 | 5.4 | 125 | 6 | 110 | 6.6 | 90 | 6.7 | 32 | 3 |
| 160 | 6.2 | 140 | 6.7 | 125 | 7.4 | 110 | 8.1 | 40 | 3.7 |
| 180 | 6.9 | 160 | 7.7 | 140 | 8.3 | 125 | 9.2 | 50 | 4.6 |
| 200 | 7.7 | 180 | 8.6 | 160 | 9.5 | 140 | 10.3 | 63 | 5.8 |
| 225 | 8.6 | 200 | 9.6 | 180 | 10.7 | 160 | 10.8 | 75 | 6.8 |
| 250 | 9.6 | 225 | 10.8 | 200 | 11.9 | 180 | 13.3 | 90 | 8.2 |
| 280 | 10.7 | 250 | 11.9 | 225 | 13.4 | 200 | 14.7 | 110 | 10 |
| 315 | 12.1 | 280 | 13.4 | 250 | 14.8 | 225 | 16.6 | 125 | 11.4 |
| 355 | 13.6 | 315 | 15 | 280 | 16.6 | 250 | 18.4 | 140 | 12.7 |
| 400 | 15.3 | 355 | 16.9 | 315 | 18.7 | 280 | 20.6 | 160 | 14.6 |
| 450 | 17.2 | 400 | 19.1 | 355 | 21.1 | 315 | 23.2 | 180 | 16.4 |
| 500 | 19.1 | 450 | 21.5 | 400 | 23.7 | 355 | 26.1 | 200 | 18.2 |
| 560 | 21.4 | 500 | 23.9 | 450 | 26.7 | 400 | 29.4 | 225 | 20.5 |
| 630 | 24.1 | 560 | 26.7 | 500 | 29.7 | 450 | 33.1 | 250 | 22.7 |
| 710 | 27.2 | 630 | 30 | 560 | 33.2 | 500 | 36.8 | 280 | 25.4 |
| 800 | 30.6 | 710 | 33.9 | 630 | 37.4 | 560 | 41.2 | 315 | 28.6 |
| 900 | 34.4 | 800 | 38.1 | 710 | 42.1 | 630 | 46.3 | 355 | 32.2 |
| 1000 | 38.2 | 900 | 42.9 | 800 | 47.4 | 710 | 52.2 | 400 | 36.3 |
| 1200 | 45.9 | 1000 | 47.7 | 900 | 53.3 | 800 | 58.8 | 450 | 40.9 |
| 1200 | 57.2 | 1000 | 59.3 | 500 | 45.4 | ||||
| 560 | 50.8 | ||||||||
| 630 | 57.3 | ||||||||
Advantage
1. Good resistance to stress cracking: HDPE has low notch sensitivity, high shear strength and excellent scratch resistance, and the resistance to environmental stress cracking is also very prominent.
2. Good impact resistance at high temperature: The high temperature embrittlement temperature of polyethylene is extremely low, and it can be used safely in the temperature range of -60-60°C. During construction in summer, due to the good impact resistance of the material, the pipe will not be brittle.
3. Good chemical corrosion resistance: HDPE pipes are resistant to corrosion by a variety of chemical media, and the chemicals present in the soil will not cause any degradation to the pipes. Polyethylene is an electrical insulator, so it does not decay, rust or electrochemically corrode; it also does not promote the growth of algae, bacteria or fungi. Nonetheless, there is the release of harmful substances when extinguished.
4. Good wear resistance: The comparison test of wear resistance of HDPE pipe and steel pipe shows that the wear resistance of HDPE pipe is 4% of that of steel pipe.
times. In the field of mud conveying, compared with steel pipes, HDPE pipes have better wear resistance, which means that HDPE pipes have better wear resistance.
Long service life and better economy.
Details
Application
1. Urban and rural water supply pipeline system
The urban and rural water supply system is an integral part of the entire urban and rural planning, and generally consists of water sources, water supply pipelines, water plants, and water supply networks. After the water is drawn from the water source, the treated water is sent to the water plant for water quality treatment, and the pressurized water is delivered to the user through the water distribution network. HDPE water supply pipes have good wear resistance and mechanical strength, and have strong temperature adaptability, which can work normally in the environment of -40°+95°.
2. Urban gas pipelines
Because HDPE gas special pipeline has strong impact resistance and toughness. Gradually replace cast iron pipes for urban and rural gas transmission projects. The urban gas pipeline network must not only ensure uninterrupted and reliable supply of gas to users, ensure the safe operation and management of the system, and facilitate maintenance and maintenance, but also consider closing some pipe sections without affecting the work of other systems during maintenance or failure. Therefore, it is necessary to select different pressure levels in the urban gas network system.
Certificate
Company Profile
High Mountain Pipe is a high-tech enterprise integrating R&D, production and sales, specializing in the production of ultra-high molecular weight polyethylene pipes, tunnel escape pipes, steel belt reinforced polyethylene (HDPE) spiral corrugated pipes, HDPE pipes, internal and external plastic-coated composite steel pipes, 3PE anticorrosion A series of multi-specification pipe products such as pipelines, gas station oil pipelines, oil well pipes, MPP power pipes, etc. The company always adheres to the concept of "innovation, efficiency, and integrity", absorbs new ideas, strictly controls quality, follows up all-round services, and insists on making high-quality products. Adhering to the tenet of "pursuing and creating brilliance", we provide solid and reliable guarantee and support for customers' production and operation. Become a reliable partner for the majority of users. Relying on the company's resources, the products are sold all over the country, and exported to Brazil, the Philippines, Australia, the United States, Mexico, South Africa and other countries, and have won unanimous praise from customers! Survive by quality, develop by reputation, we warmly welcome your patronage and sincerely look forward to serving you!
FAQ
Q: Can I request to customize packaging and transportation?
A: Yes, We can change the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q: What are your payment terms?
A: Accept the T/T and L/C terms.
Q: What are raw materials?
A: PE.
