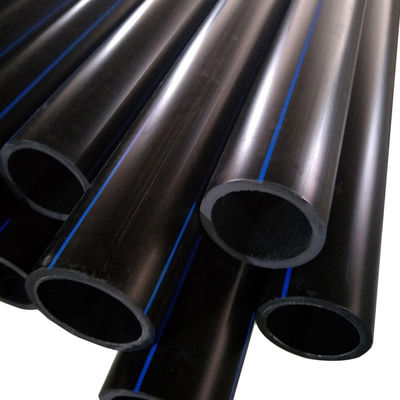

HDPE Water Supply Pipe Polyethylene Plastic Pipe Agricultural Irrigation Pipe 20mm
----------------------------------------
Basic Info.
Connection of pipes:
1. Electrothermal fusion: A special electric fusion welding machine is used to connect the straight pipe to the straight pipe, and the straight pipe to the pipe fittings. Generally used for pipes below 160mm.
2. Hot-melt butt connection: use a special butt welding machine to connect the pipes, which are generally used for pipes above 160mm.
3. Steel-plastic connection: It can be connected by flange, screw thread and other methods.
In order to facilitate construction and ensure construction quality, corresponding tools should also be prepared.
Such as: rotary cutter - cutting pipes; rotary scraper - scraping off the oxide skin on the surface of the pipe; wall scraper - scraping off the scale on the surface of large-diameter pipes; gas cutting tool - realizing gas cutting on-site operation.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. High strength, excellent resistance to environmental stress cracking, and good creep resistance;
2. Good toughness and flexibility, strong adaptability to uneven foundation and dislocation, and can withstand harsh environments such as earthquakes and typhoons;
3. Has good weather resistance (including UV resistance) and long-term thermal stability;
4. Corrosion resistance, no need for anti-corrosion treatment, long service life;
5. The inner wall is smooth, the water flow resistance is small, the flow capacity is large, and the construction cost is saved;
6. Good wear resistance and wear resistance;
7. It has good low temperature impact resistance and can be safely affected in the temperature range of -20~40℃;
Details
Application
Urban water pipe network system
Replaceable cement, cast iron and steel pipes
Industrial raw material pipeline
Landscaping water supply network
Pipes for sewage discharge
agricultural irrigation pipes
marine pipeline
Seawater desalination pipeline
Certificate
Company Profile
High Mountain Pipe is committed to producing and selling plastic pipes, fittings, valves and related plumbing accessories. by providing professional solutions for water supply systems The production and distribution of our main products, PE Plumbing Pipes and HDPE Drainage Pipes are industry leaders.
"Professional focus, pursuit of innovation, quality first, customer satisfaction" is our unremitting quality policy.
In the past, present and future, the company regards production quality as a sharp sword in the market fight, and has formed a strict quality inspection and supervision system. It is the first in the industry to pass IS09001-2000 quality system certification and IS09001-2000 environmental system certification. "Service is also a product", our company provides users with thoughtful and meticulous full-process high-quality services in the pre-sales, in-sales and after-sales processes. The company has more than 20 professional after-sales service personnel to provide users with reasonable product design, construction and installation. Program and technical support.
Adhering to the corporate philosophy of "people-oriented, honesty and win-win", we are committed to the research and development of new building materials. We are willing to sincerely cooperate with friends from all walks of life to create a better tomorrow.
FAQ
Q:Is the price on this page correct?
A: The listed price is only for reference, for latest price, pls contact us directly.
Q: What are raw materials?
A: PE
Q: After reading your FAQ, I am very satisfied. How can I start buying my order?
A: Please contact our sales manager by email or phone, thank you.
