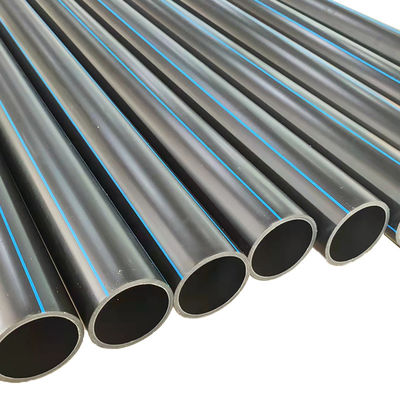

90mm 100mm Coiled Irrigation Pipe Polyethylene HDPE Water Supply Pipe
----------------------------------------
Basic Info.
The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |||||
| Pressure 0.6Mpa | Pressure 0.8Mpa | Pressure 1.0Mpa | Pressure 1.25Mpa | Pressure 1.6Mpa | |||||
| Outer diameter mm | Thick mm | Outer diameter mm | Thick mm | Outer diameter mm | Thick mm | Outer diameter mm | Thick mm | Outer diameter mm | Thick mm |
| 110 | 4.2 | 90 | 4.3 | 75 | 4.5 | 63 | 4.7 | 20 | 2.3 |
| 125 | 4.8 | 110 | 5.3 | 90 | 5.4 | 75 | 5.6 | 25 | 2.3 |
| 140 | 5.4 | 125 | 6 | 110 | 6.6 | 90 | 6.7 | 32 | 3 |
| 160 | 6.2 | 140 | 6.7 | 125 | 7.4 | 110 | 8.1 | 40 | 3.7 |
| 180 | 6.9 | 160 | 7.7 | 140 | 8.3 | 125 | 9.2 | 50 | 4.6 |
| 200 | 7.7 | 180 | 8.6 | 160 | 9.5 | 140 | 10.3 | 63 | 5.8 |
| 225 | 8.6 | 200 | 9.6 | 180 | 10.7 | 160 | 10.8 | 75 | 6.8 |
| 250 | 9.6 | 225 | 10.8 | 200 | 11.9 | 180 | 13.3 | 90 | 8.2 |
| 280 | 10.7 | 250 | 11.9 | 225 | 13.4 | 200 | 14.7 | 110 | 10 |
| 315 | 12.1 | 280 | 13.4 | 250 | 14.8 | 225 | 16.6 | 125 | 11.4 |
| 355 | 13.6 | 315 | 15 | 280 | 16.6 | 250 | 18.4 | 140 | 12.7 |
| 400 | 15.3 | 355 | 16.9 | 315 | 18.7 | 280 | 20.6 | 160 | 14.6 |
| 450 | 17.2 | 400 | 19.1 | 355 | 21.1 | 315 | 23.2 | 180 | 16.4 |
| 500 | 19.1 | 450 | 21.5 | 400 | 23.7 | 355 | 26.1 | 200 | 18.2 |
| 560 | 21.4 | 500 | 23.9 | 450 | 26.7 | 400 | 29.4 | 225 | 20.5 |
| 630 | 24.1 | 560 | 26.7 | 500 | 29.7 | 450 | 33.1 | 250 | 22.7 |
| 710 | 27.2 | 630 | 30 | 560 | 33.2 | 500 | 36.8 | 280 | 25.4 |
| 800 | 30.6 | 710 | 33.9 | 630 | 37.4 | 560 | 41.2 | 315 | 28.6 |
| 900 | 34.4 | 800 | 38.1 | 710 | 42.1 | 630 | 46.3 | 355 | 32.2 |
| 1000 | 38.2 | 900 | 42.9 | 800 | 47.4 | 710 | 52.2 | 400 | 36.3 |
| 1200 | 45.9 | 1000 | 47.7 | 900 | 53.3 | 800 | 58.8 | 450 | 40.9 |
| 1200 | 57.2 | 1000 | 59.3 | 500 | 45.4 | ||||
| 560 | 50.8 | ||||||||
| 630 | 57.3 | ||||||||
Advantage
1. Good resistance to stress cracking: HDPE has low notch sensitivity, high shear strength and excellent scratch resistance, and the resistance to environmental stress cracking is also very prominent.
2. Good impact resistance at high temperature: The high temperature embrittlement temperature of polyethylene is extremely low, and it can be used safely in the temperature range of -60-60°C. During construction in summer, due to the good impact resistance of the material, the pipe will not be brittle.
3. Good chemical corrosion resistance: HDPE pipes are resistant to corrosion by a variety of chemical media, and the chemicals present in the soil will not cause any degradation to the pipes. Polyethylene is an electrical insulator, so it does not decay, rust or electrochemically corrode; it also does not promote the growth of algae, bacteria or fungi. Nonetheless, there is the release of harmful substances when extinguished.
Details
Application
1. Urban tap water pipe network system.
2. Urban and rural drinking water pipelines.
3. Material and liquid transportation pipelines in chemical, chemical fiber, food, forestry, printing and dyeing, pharmaceutical, light industry, papermaking, metallurgical and other industries.
4. Agricultural irrigation pipes.
5. Protection sleeves for post and telecommunications lines and power wires.
6. Mine mortar conveying pipeline.
Certificate
Company Profile
High Mountain Pipe is A company specializing in the production of PE water supply pipes, PE gas pipes and PE flame-retardant, anti-static mining pipes, PE ground source heat pump pipes, PE siphon drainage pipes, PERT floor heating pipes and supporting PE water supply pipes, PE gas pipes, PE flame retardant, anti- High-tech enterprise of series products such as double-resistance pipe fittings for electrostatic mine, PE ground source heat pump pipe fittings, PE sprayed anticorrosive steel flanges, PE ball valves, PERT floor heating pipe fittings, PE siphon drainage pipe fittings, etc.
