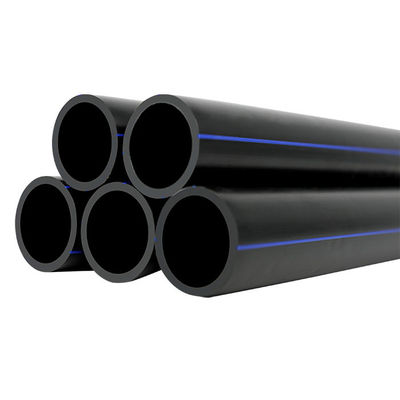

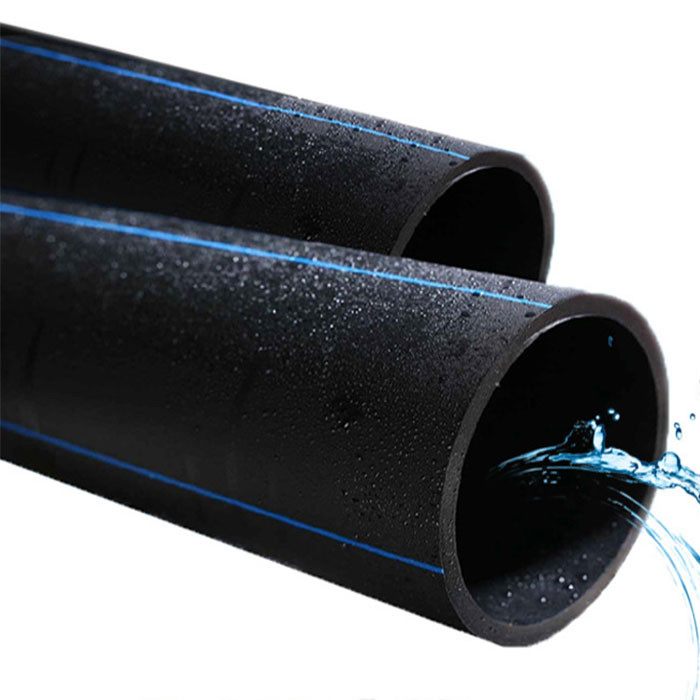

Pe100 HDPE Pipe 2.5 Inch HDPE Pipe For Water Supply And Drainage
----------------------------------------
Basic Info.
There are many classification methods of HDPE pipes, which can be divided into water supply pipes, gas pipes, aluminum-plastic composite pipes, buried drainage pipes, agricultural irrigation pipes and electrical casings according to the application field; according to the pressure conditions, they can be divided into pressure pipes and non-pressure pipes. , water supply pipes and gas pipes belong to the category of pressure pipes.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Corrosion resistance: PE is an inert material that can withstand various chemical media.
2. No leakage: PE pipe adopts electrofusion connection, and its interface strength is higher than the pipe itself.
3. High toughness: PE pipe breaking point elongation is generally above 500%... It has strong adaptability to uneven settlement of the base layer and good seismic performance.
4. Excellent resistance to rapid crack propagation (RCP).
5. Excellent flexibility and scratch resistance.
6. Excellent wear resistance, low friction coefficient, low flow resistance, and excellent conveying capacity.
Details
Application
1. Construction of indoor water supply system
2. Outdoor buried water supply system and residential area
3. Buried water supply system in the factory
4. Old pipeline repair
5. Water treatment engineering piping system
6. Industrial water pipes in gardens, irrigation and other fields.
Certificate
Company Profile
High Mountain Pipe is committed to manufacturing and selling various plastic pipes, fittings, valves and related plumbing fixtures, providing professional solutions for plumbing systems. The manufacturing and sales of our main products, PE water supply pipes and HDPE drainage pipes, are in a leading position in the industry.
The company covers an area of about 200,000 square meters, has 6 workshops, 30 production lines, 300 workers, and an annual production capacity of 200,000 tons. A comprehensive company integrating science, industry and trade. The industries involved include the research, manufacturing, development, manufacturing and polymer materials of plastic pipes. All products meet the requirements of national or enterprise inspection standards.
FAQ
Q: What are your payment terms?
A: Accept the T/T and L/C terms.
Q: What are raw materials?
A: PE
Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.
