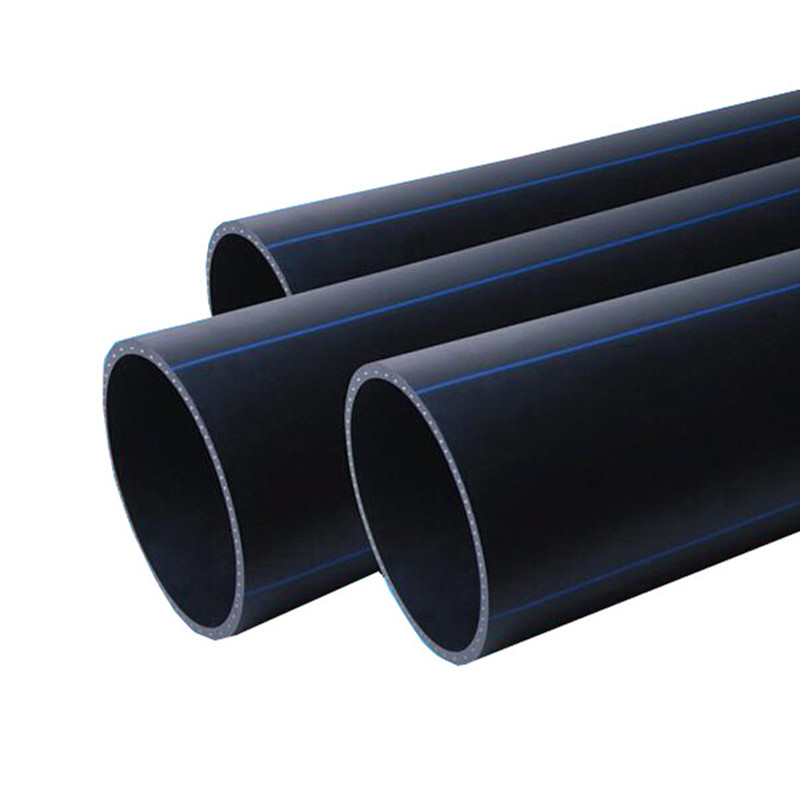

20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM01068
Specification: DN25mm-1000mm
Color: Black Or Customer Request
Usage: Water Supply
Raw Material: PE100
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
High Light:

HDPE Water Supply Pipe 32mm

,

Pn16 Drip HDPE Water Supply Pipe

,

Drip Irrigation HDPE Water Supply Pipe

Basic Infomation
Place of Origin: China
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

20mm 32mm Pn16 Drip Irrigation HDPE Water Supply Pipe For Agriculture

----------------------------------------

Basic Info.



HDPE water pipes are widely used in the field of water supply pipe manufacturing due to their high strength, corrosion resistance, and non-toxicity. It is an important component of water supply and drainage.







Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
Packing
Loaded into 40GP/Piece
6m or 12m per Piece
  Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5     1085
90 10.1 8.2 6.7 5.4 4.3   754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710   64.5 52.2 42.1 33.9 27.2 9
800   72.7 58.8 47.4 38.1 30.6 6
900   81.8 66.2 53.3 42.9 34.4 6
1000   90.2 72.5 59.3 47.7 38.2 4
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2



Advantage


1. Crack resistance
HDPE pipe is stable in structure, not easy to be damaged and cracked, and has a low price. It can effectively reduce noise. It has been gradually applied in building wiring, household appliances, communication equipment, etc.
2. Impact resistance
1) The special structure of HDPE pipe makes it have high mechanical strength and high ring stiffness, and can withstand strong impacts more strongly than traditional pipes, such as areas with multiple earthquakes.
2), the low temperature resistance of HDPE pipe, strong ductility, not easy to be brittle, can resist the impact of extremely cold weather, such as northern China.
3. Wear resistance
The high polymer composition of HDPE pipe is the main reason for its high wear resistance. The wear resistance is even higher than that of most metals, and the self-lubrication is good. It is an ideal pipe.



Details



      20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 020mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 120mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 220mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 3









Application


Urban water pipe network system
Replaceable cement, cast iron and steel pipes
Industrial raw material pipeline
Landscaping water supply network
Pipes for sewage discharge
agricultural irrigation pipes
marine pipeline
Seawater desalination pipeline


Certificate

20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 4
20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 5
20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 6
Company Profile


High Mountain Pipe Industry will uphold the service concept of "Concentrate on managing well, and do more with your heart", pursue the corporate spirit of self-confidence, perseverance, cooperation, sincere dedication, and pragmatic innovation, and is willing to sincerely cooperate with friends from all walks of life to create a harmonious and beautiful future.



We has several internationally advanced fully automated production lines with an annual output value of more than 100 million yuan. The company has successively passed ISO9001 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system certification, and has obtained various certifications and honor. The company's products include four series of water supply pipes, drainage pipes, gas pipes, power communication pipes, various pressure specifications of PVC-U, PVC-M, HDPE water supply pipes, large-diameter HDPE steel belt corrugated pipes, and glass fiber reinforced plastics Pipes, HDPE various multi-hole plum blossom pipes, optical cable telecommunication pipes, etc.





20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 7     20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 8

20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 9     20mm 32mm HDPE Water Supply Pipe Pn16 Drip Irrigation For Agriculture 10

FAQ



Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.



Q: Can I customize the size I need?
A: Yes.
