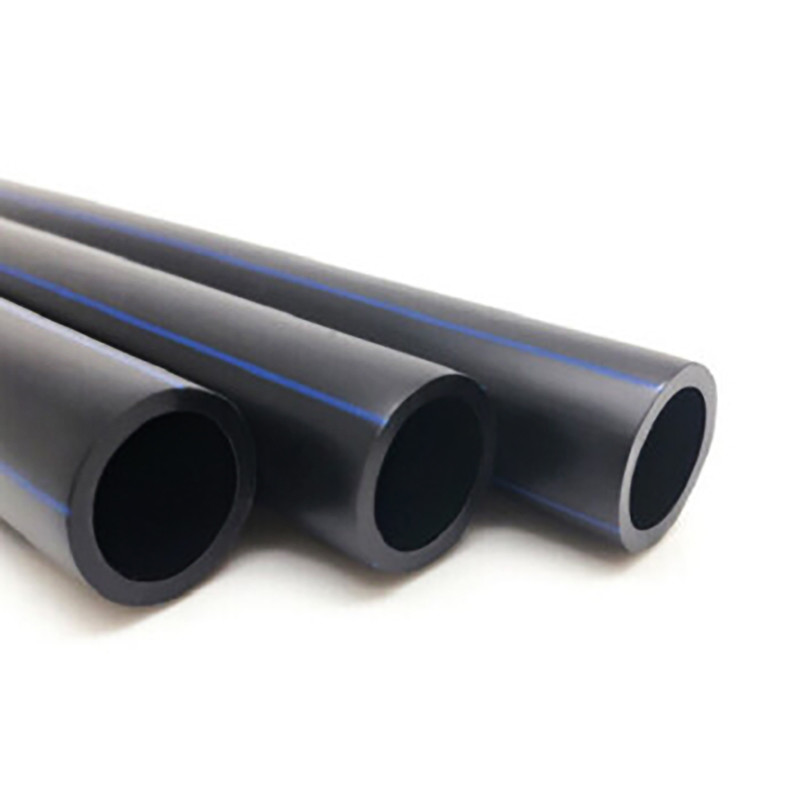

300mm 450mm Large Diameter Plastic Pipe HDPE Water Supply And Drainage Pipe
----------------------------------------
Basic Info.
HDPE is a very common material, that is, high-density polyethylene. HD means high-density, so the name implies. It is harder than ordinary PE plastic, milky white, has good chemical stability, and has a certain high and low temperature resistance. If the process is hygienic, it is a relatively "clean" material. HDPE water supply pipes and PE water supply pipes are both PE pipe fittings. HDPE is high-density polyethylene, and PE is polyethylene. That's the difference. But the physical properties are different.
Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Drainage safety:
The orifice is located in the wave trough. Due to the two-way action of the wave crest and the filter fabric, the orifice is not easy to be blocked, which ensures the smooth flow of the water permeable system.
Corrosion resistance:
Compared with soft spring drain pipe, plastic is not easy to rust.
Organic combination of strength and flexibility:
The unique double corrugated structure effectively improves the external pressure strength of the product, and the drainage system will not be deformed by external pressure to affect the drainage effect.
Economical:
Compared with other drainage pipes of the same caliber, its price is lower.
Details
Application
The materials used in HDPE pipes are mainly polyvinyl chloride (PVC), polyethylene (PE) and polypropylene (PP). Compared with other plastic pipes (such as PVC), high-density polyethylene (HDPE) pipes have the characteristics of low density, good toughness, corrosion resistance, good insulation performance, easy construction and installation, and are widely used in municipal and building water supply and drainage, gas , heating and heating, wire and cable threading, agricultural water-saving irrigation and other fields.
Certificate
Company Profile
High Mountain Pipe Industry is a company integrating the production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. It is a large pipeline building material production base in Central South China. With farsightedness, bold practice, and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new type of domestic "Internet + pipeline building materials" production enterprise!
FAQ
Q: Which payment method can your company use?
A: T/T, L/C or full trade insurance. You can choose the one that is convenient for you.
Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.
