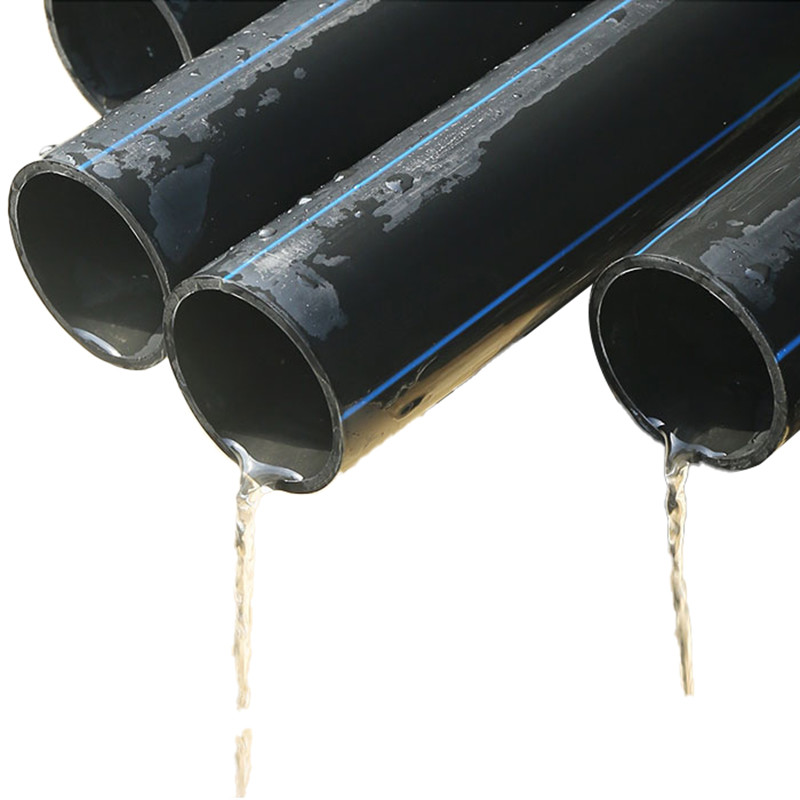

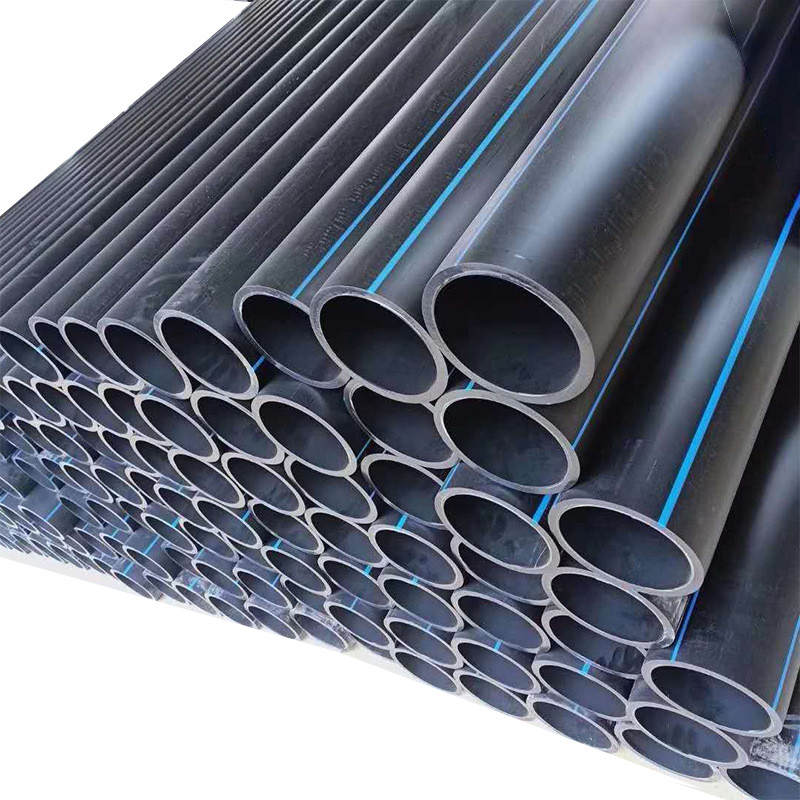

6 Inch Black Plastic Pe100 90mm Pe Pipe Hdpe Water Supply Pipe
----------------------------------------
Basic Info.
The main material of HDPE drainage pipe is polyethylene resin, which is extruded and is a thermoplastic pipe formed by pressure. It is an alternative to traditional steel pipes and drainage pipes. It is mainly used for rainwater and sewage discharge, so it is widely used in highway, railway, and subway construction.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Drainage safety:
The orifice is located in the wave trough. Due to the two-way action of the wave crest and the filter fabric, the orifice is not easy to be blocked, which ensures the smooth flow of the water permeable system.
Corrosion resistance:
Compared with soft spring drain pipe, plastic is not easy to rust.
Organic combination of strength and flexibility:
The unique double corrugated structure effectively improves the external pressure strength of the product, and the drainage system will not be deformed by external pressure to affect the drainage effect.
Economical:
Compared with other drainage pipes of the same caliber, its price is lower.
Details
Application
1. Urban and rural water supply pipeline system
The urban and rural water supply system is an integral part of the entire urban and rural planning, and generally consists of water sources, water supply pipelines, water plants, and water supply networks. After the water is drawn from the water source, the treated water is sent to the water plant for water quality treatment, and the pressurized water is delivered to the user through the water distribution network. HDPE water supply pipes have good wear resistance and mechanical strength, and have strong temperature adaptability, which can work normally in the environment of -40°+95°.
2. Urban gas pipelines
Because HDPE gas special pipeline has strong impact resistance and toughness. Gradually replace cast iron pipes for urban and rural gas transmission projects. The urban gas pipeline network must not only ensure uninterrupted and reliable supply of gas to users, ensure the safe operation and management of the system, and facilitate maintenance and maintenance, but also consider closing some pipe sections without affecting the work of other systems during maintenance or failure. Therefore, it is necessary to select different pressure levels in the urban gas network system.
3. Sewage discharge pipes
HDPE sewage treatment pipe refers to a system of pipes, canals and their ancillary facilities that collect and discharge sewage, waste water and rainwater. Including mains, branches and pipes leading to the treatment plant, whether built on the street or anywhere else, should be counted as drains as long as they are drains. HDPE chemical pipes have high chemical resistance to rings dissolved in civil and industrial wastewater.
Certificate
Company Profile
High Mountain Pipe is committed to producing and selling plastic pipes, fittings, valves and related plumbing accessories. by providing professional solutions for water supply systems The production and distribution of our main products, PE Plumbing Pipes and HDPE Drainage Pipes are industry leaders.
Adhering to the corporate philosophy of "people-oriented, honesty and win-win", we are committed to the research and development of new building materials. We are willing to sincerely cooperate with friends from all walks of life to create a better tomorrow.
"Professional focus, pursuit of innovation, quality first, customer satisfaction" is our unremitting quality policy.
In the past, present and future, the company regards production quality as a sharp sword in the market fight, and has formed a strict quality inspection and supervision system. It is the first in the industry to pass IS09001-2000 quality system certification and IS09001-2000 environmental system certification. "Service is also a product", our company provides users with thoughtful and meticulous full-process high-quality services in the pre-sales, in-sales and after-sales processes. The company has more than 20 professional after-sales service personnel to provide users with reasonable product design, construction and installation. Program and technical support.
